Mastering the Flutter Empty Widget: A Guide to Enhancing User Experience

In app development, mainly when using Flutter, the user interface is pivotal in the overall user experience. A common scenario developers face is handling the absence of data, which can occur when fetching information from the internet, resulting in no available data. This is where the Flutter Empty Widget comes into play.

In this blog, you will learn about the EmptyWidget class, a widget provided by Flutter to handle these situations elegantly. You will also discover how to implement it within your app to ensure a seamless and informative user experience.

Understanding the EmptyWidget Class

When you create an app, you aim to fill every screen with meaningful content. However, sometimes, a screen may be devoid of data due to an error, an empty state, or while waiting for data to load. This is where the concept of an empty view becomes crucial. The EmptyWidget class in Flutter allows you to provide a placeholder that informs users that there is no data to display.

Why Use an EmptyWidget?

Imagine you have a ListView that dynamically fills with items fetched from an API. If the API returns an empty list, showing a blank screen can confuse users, making them wonder if the app is broken. An empty view communicates that everything functions as intended, but no data exists.

The Basics of Widget Build

In Flutter, every UI element is a widget, and the process of creating these UI elements is done through widget build. This method is where you define how your widget looks and behaves within the app's context. Let's examine an example of implementing an EmptyWidget within the widget build method.

1Widget build(BuildContext context) {
2 return Scaffold(
3   appBar: AppBar(
4     title: Text('Your Flutter Demo'),
5   ),
6   body: _buildContent(),
7 );
8}
9
10Widget _buildContent() {
11 // Assuming 'data' is the list of items you fetched from the internet
12 if (data.isEmpty) {
13   // Here we return our custom EmptyWidget
14   return EmptyWidget(
15     title: 'No Data Available',
16     message: 'Please check your internet connection or try again later.',
17     image: Image.asset('assets/images/no_data.png'), // replace it with actual path
18   );
19 } else {
20   return ListView.builder(
21     itemCount: data.length,
22     itemBuilder: (context, index) {
23       // Your item widget
24     },
25   );
26 }
27}

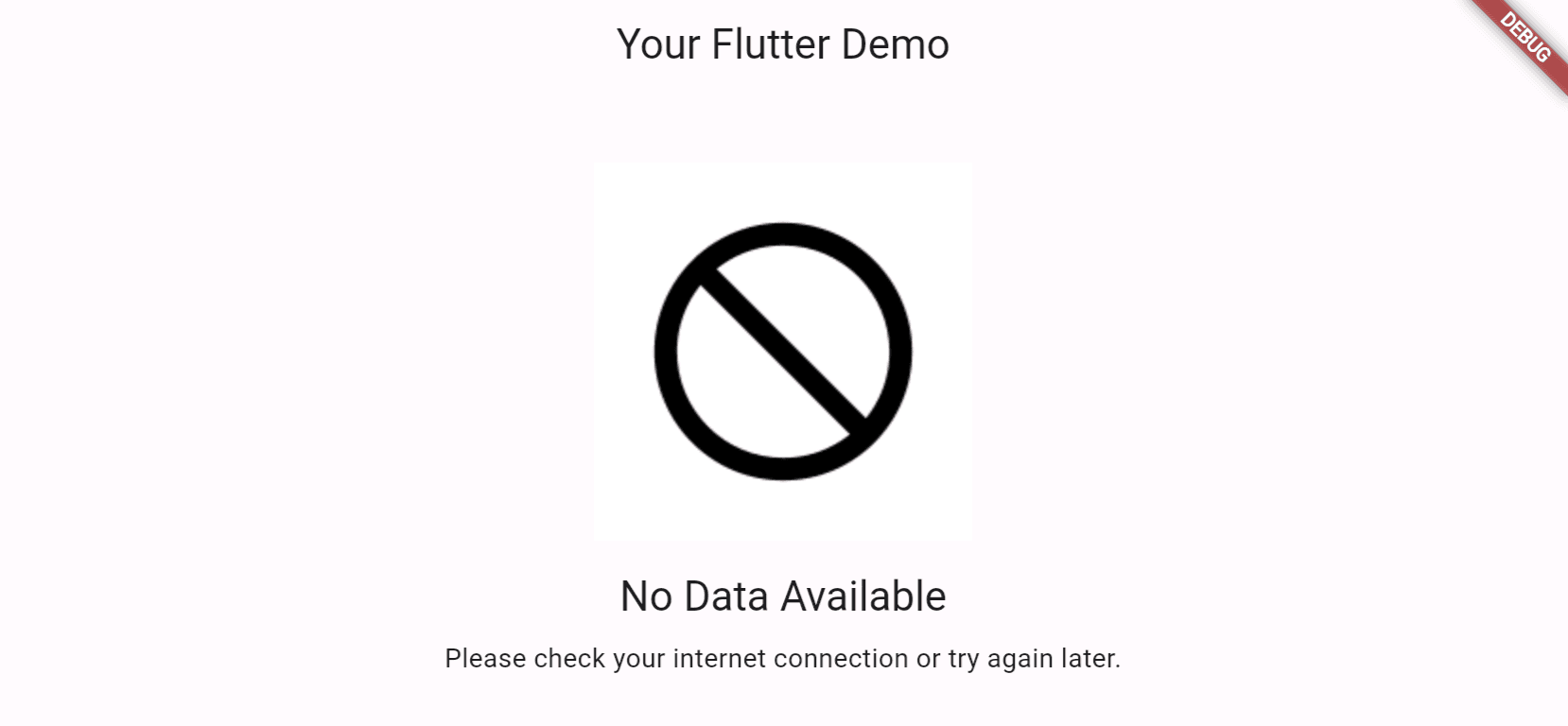

In the above code snippet, the _buildContent method checks if the data list is empty. If it is, it returns an EmptyWidget with a title, message, and image to visually communicate the absence of data.

Designing Your EmptyWidget

Your empty view's design should align with your app's theme. It should be visually appealing and convey the message. You can customize the EmptyWidget with properties such as title, message, and image to fit the look and feel of your app.

Customizing with Images

Images play a significant role in the design of an empty view. They can fill space, provide context, and add a touch of personality to an otherwise empty screen. Below is an example of how you can add an image to your EmptyWidget:

1EmptyWidget(
2 image: Image.asset('assets/images/empty_box.png'),
3)

In this example, the Image.asset constructor is used to load an image from the asset bundle, providing a visual cue to the user that the container is intentionally left empty.

Adding Context with Titles and Messages

The title and message properties of the EmptyWidget give context to the user. They answer the user's implicit questions about why they are seeing an empty screen. Here's how you can add a title and message:

1EmptyWidget(
2 title: 'Nothing to See Here',
3 message: 'The items you are looking for are currently unavailable.',
4)

The title 'Nothing to See Here' is a light-hearted way to acknowledge the empty state, while the message provides a clear explanation.

Handling Null Values

Null values can often cause runtime errors in Dart, the programming language used to write Flutter apps. When dealing with potentially null data, it is important to handle these cases to prevent your app from crashing. The EmptyWidget can be used as a safe way to render UI when faced with null data.

Null Safety in Flutter

Flutter's recent updates have introduced null safety, meaning variables can no longer hold null values by default. This affects how you handle potential null values in your code. Here is an example of using the EmptyWidget with null safety in mind:

1Widget _buildContent() {
2 // Assuming 'data' could be null or empty
3 if (data?.isEmpty ?? true) {
4   return EmptyWidget(
5     title: 'Awaiting Data',
6     message: 'No information is available at the moment.',
7     image: Image.asset('assets/images/waiting.png'),
8   );
9 } else {
10   return ListView.builder(
11     itemCount: data!.length,
12     itemBuilder: (context, index) {
13       // Your item widget
14     },
15   );
16 }
17}

In this snippet, the ?. operator is used to access the isEmpty property of data safely. If data is null, the expression will short-circuit and return null, which is then handled by the ?? operator to default to true, ensuring that the EmptyWidget is returned when there is no data.

Enhancing User Experience with EmptyWidget

An empty view should inform users of the lack of data and guide them on next steps. This could include a call to action, such as a button to refresh the data or a message suggesting to check back later. Here's how you might add a refresh button to your EmptyWidget:

1EmptyWidget(
2 title: 'No Content Available',
3 message: 'Pull down to refresh or check back later.',
4 action: ElevatedButton(
5   onPressed: () {
6     // Code to refresh data
7   },
8   child: Text('Refresh'),
9 ),
10)

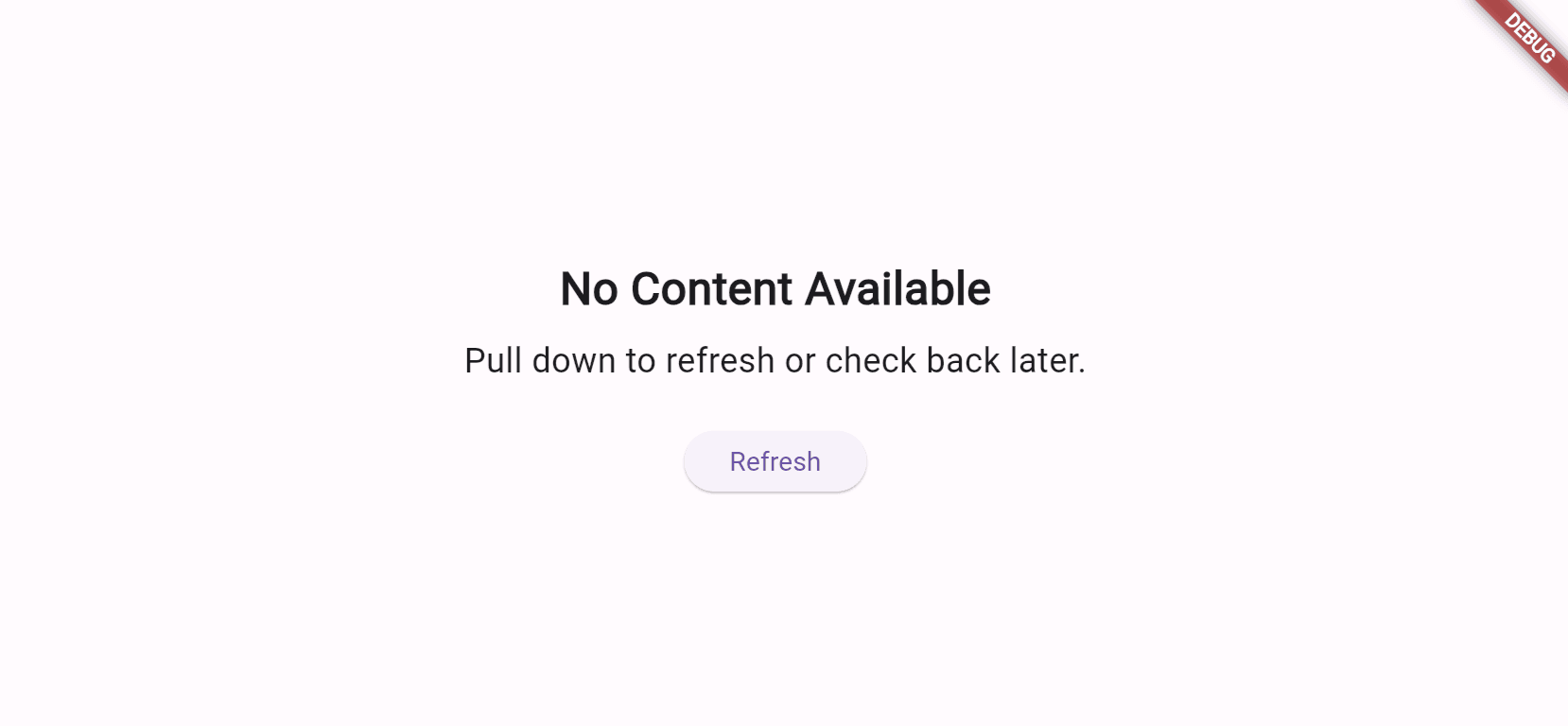

In this code, the action property provides an ElevatedButton that users can tap to attempt to reload the data.

Conclusion: The Art of Handling Empty States

Creating a practical empty view is an art that enhances the user experience by providing clear communication and guidance when data is not available. The EmptyWidget class in Flutter allows you to easily create these empty views, ensuring that your app remains user-friendly and informative, even without content.

With the EmptyWidget, you have a powerful tool to gracefully handle null or absent data, keeping your users engaged and informed.
