The Ultimate Guide to Crafting Forms with Auto Validation in Flutter

The form widget becomes a cornerstone for gathering user data when building a Flutter app. It's your go-to tool for creating an interactive interface where users can input and submit information. But it's not just about collecting data; it's about ensuring it is valid. That's where form validation comes into play.

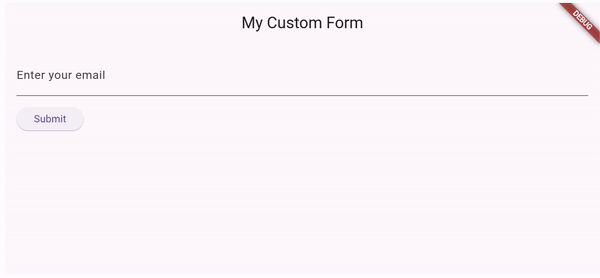

Streamlining User Input with Text Form Fields

In Flutter, the TextFormField widget is a versatile and essential element within your form widget that allows you to capture text input from the user. Each text field can have its validation logic, which is crucial for processing data accurately and efficiently. Incorporating TextFormField widgets within your form widget creates a seamless user interaction experience where input is collected and checked for errors on the fly.

Consider the following code snippet that demonstrates how to integrate a TextFormField into your form widget:

1class MyCustomForm extends StatefulWidget {
2  @override
3  _MyCustomFormState createState() => _MyCustomFormState();
4}
5
6class _MyCustomFormState extends State<MyCustomForm> {
7  final _formKey = GlobalKey<FormState>();
8
9  @override
10  Widget build(BuildContext context) {
11    return Form(
12      key: _formKey,
13      child: Column(
14        crossAxisAlignment: CrossAxisAlignment.start,
15        children: <Widget>[
16          TextFormField(
17            decoration: InputDecoration(labelText: 'Enter your email'),
18            validator: (value) {
19              if (value.isEmpty) {
20                return 'Please enter some text';
21              }
22              return null;
23            },
24          ),
25          // Add more TextFormFields here if needed
26        ],
27      ),
28    );
29  }
30}
31

In this example, the validator property of the TextFormField widget is set to a function that checks if the text field is empty. If it is, an error message is displayed, prompting the user to enter some text. The function returns null if the input is valid, indicating no error.

Enhancing Data Integrity with Validation Logic

The true power of form widgets shines when you implement validation logic. This logic ensures the data you collect is in the format you expect. For instance, if you're expecting an email address, your validation logic will check that the input matches the pattern of a valid email. If it doesn't, the user will be alerted with an error message, and the form will only be submitted once the error is corrected.

Here's how you might include validation logic for an email field:

1String validateEmail(String value) {
2  Pattern pattern =
3      r'^(([^<>()[\]\\.,;:\s@\"]+(\.[^<>()[\]\\.,;:\s@\"]+)*)|(\".+\"))@((\[[0-9]{1,3}\.[0-9]{1,3}\.[0-9]{1,3}\.[0-9]{1,3}\])|(([a-zA-Z\-0-9]+\.)+[a-zA-Z]{2,}))$';
4  RegExp regex = new RegExp(pattern);
5  if (!regex.hasMatch(value))
6    return 'Enter a valid email';
7  else
8    return null;
9}
10

In this function, validateEmail, a regular expression is used to check if the user's input matches the pattern of a valid email address. If it doesn't, an error message is returned. If it does, the function returns null, signaling that the input is valid.

Designing a Robust Form Validation Framework

Creating a robust form validation framework within your Flutter app ensures that the data your users submit meets the standards and requirements necessary for processing. This framework helps prevent common data entry errors and enhances the overall user experience by providing immediate feedback.

Structuring the Widget Tree for Validation

The widget tree in Flutter is a hierarchical organization of widgets that defines the structure of your app's UI. Regarding form validation, the widget tree must be thoughtfully structured to facilitate the validation process. This involves nesting TextFormField widgets within a Form widget, which acts as a container for grouping and validating multiple form fields.

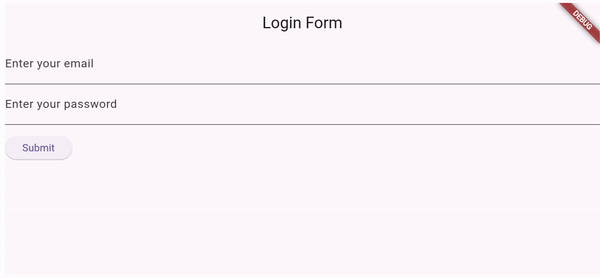

Leveraging TextFormField Widgets for Multiple Form Fields

Ensuring that each TextFormField widget is configured with validation logic is essential when dealing with multiple form fields. This allows you to validate various user inputs, from simple text to more complex data like email addresses and passwords. By leveraging TextFormField widgets, you can create a cohesive form widget that handles user interaction effectively.

Here's an example of how you might structure your widget tree to include multiple TextFormField widgets with validation:

1class MyCustomForm extends StatefulWidget {
2  @override
3  _MyCustomFormState createState() => _MyCustomFormState();
4}
5
6class _MyCustomFormState extends State<MyCustomForm> {
7  final _formKey = GlobalKey<FormState>();
8
9  @override
10  Widget build(BuildContext context) {
11    return Scaffold(
12      body: Form(
13        key: _formKey,
14        child: Column(
15          crossAxisAlignment: CrossAxisAlignment.start,
16          children: <Widget>[
17            TextFormField(
18              decoration: InputDecoration(labelText: 'Enter your email'),
19              validator: (value) {
20                if (value.isEmpty) {
21                  return 'Please enter your email';
22                }
23                // Add additional email validation logic here
24                return null;
25              },
26            ),
27            TextFormField(
28              decoration: InputDecoration(labelText: 'Enter your password'),
29              obscureText: true,
30              validator: (value) {
31                if (value.isEmpty) {
32                  return 'Please enter your password';
33                }
34                // Add additional password validation logic here
35                return null;
36              },
37            ),
38            Padding(
39              padding: const EdgeInsets.symmetric(vertical: 16.0),
40              child: ElevatedButton(
41                onPressed: () {
42                  // Validate returns true if the form is valid, or false otherwise.
43                  if (_formKey.currentState.validate()) {
44                    // If the form is valid, display a Snackbar.
45                    ScaffoldMessenger.of(context).showSnackBar(
46                      SnackBar(content: Text('Processing Data')),
47                    );
48                  }
49                },
50                child: Text('Submit'),
51              ),
52            ),
53          ],
54        ),
55      ),
56    );
57  }
58}
59

In this code snippet, you can see how each TextFormField widget is given a validator function that checks whether the input is empty and, if so, returns an error string. This is a simple validation check, but you can expand on this by adding more complex validation logic tailored to the specific requirements of each field.

Crafting Custom Form Validation Logic

To ensure that the data your users submit is both accurate and useful, you need to craft custom form validation logic tailored to your specific needs. This dynamic logic should allow for real-time feedback and a smooth user experience. In Flutter, this is achieved by creating a StatefulWidget that can maintain the state of the form and its fields as the user interacts with them.

Building a StatefulWidget for Dynamic Validation

A StatefulWidget is essential when you need to change the UI based on user interaction or when the data changes. For form validation, this means updating the UI to show validation errors as the user types or when the form is submitted.

Managing State with MyClassCustomFormState

The state class, MyCustomFormState, is where you manage the state of your form fields and the validation logic. This class holds the key to accessing and manipulating the form's state, including the form fields' current values and whether they have passed the validation checks.

Here's a basic example of a StatefulWidget and its corresponding state class:

1class MyCustomForm extends StatefulWidget {
2  @override
3  MyCustomFormState createState() => MyCustomFormState();
4}
5
6class MyCustomFormState extends State<MyCustomForm> {
7  final _formKey = GlobalKey<FormState>();
8
9  // Add your form field state variables here
10
11  @override
12  Widget build(BuildContext context) {
13    return Form(
14      key: _formKey,
15      // Rest of the form widget tree
16    );
17  }
18
19  // Add your validation functions here
20}
21

In MyCustomFormState, you would typically maintain variables that hold the current values of the form fields and write methods for validating those values.

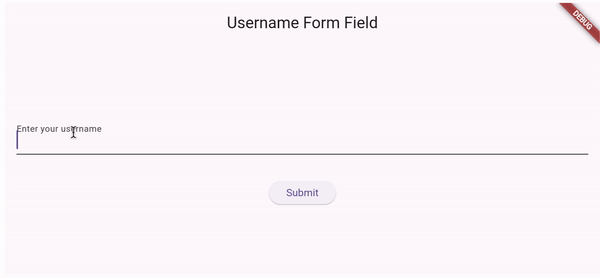

Incorporating OnChanged Callbacks and Validator Functions

To provide immediate feedback to the user, you can use the onChanged callback in each TextFormField widget. This callback is triggered every time the user types or modifies the text in the field, allowing you to perform validation on-the-fly and give instant error messages if necessary.

The validator function is another crucial part of the validation logic. It's called when the form is submitted, and it should return an error string if the input is invalid or null if the input is valid.

Here's how you might incorporate these into your TextFormField widgets:

1void _validateUsername(String value) {
2    if (value.isEmpty) {
3      setState(() {
4        _feedbackText = 'Username cannot be empty';
5      });
6    } else if (value.length < 4) {
7      setState(() {
8        _feedbackText = 'Username must be at least 4 characters long';
9      });
10    } else {
11      setState(() {
12        _feedbackText = '';
13      });
14    }
15  }
16
17TextFormField(
18  decoration: InputDecoration(labelText: 'Enter your username'),
19  onChanged: (value) {
20		_validateUsername(value);
21  },
22  validator: (value) {
23    if (value.isEmpty) {
24      return 'Username cannot be empty';
25    }
26    // Add more complex validation logic here
27    return null;
28  },
29),
30

In this example, the onChanged callback can validate the input as the user types. At the same time, the validator function performs another round of validation when the user attempts to submit the form.

Handling Validation Errors and User Feedback

The user experience of your Flutter app hinges on how well you handle validation errors and provide feedback. Users need to know what they're doing wrong as soon as possible so they can correct it without frustration. Properly displaying error messages is key to correctly guiding users through filling out your form widget.

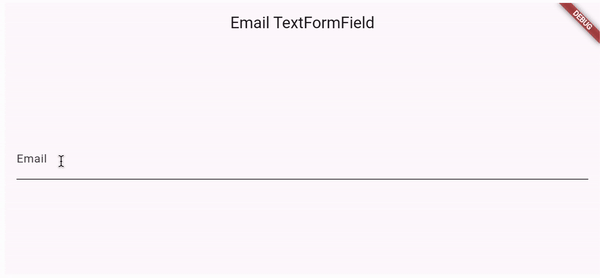

Displaying Error Messages with Error Text

When a user submits a form that contains errors, or when they're typing and trigger a validation rule, it's essential to provide clear and immediate feedback. In Flutter, this is typically done using the errorText property available in form field widgets like TextFormField. This property allows you to display a string below the text field that informs the user of the validation error.

Utilizing Error Strings to Guide Users

Error strings should be informative and direct, guiding users to correct their input. For instance, if a user enters an invalid email address, the error string might say, "Please enter a valid email address." This points out the error and tells the user how to fix it.

Here's an example of how you might set up a TextFormField to display an error message:

1TextFormField(
2        decoration: InputDecoration(
3          labelText: 'Email',
4          errorText: _validate ? "Email Can't Be Empty" : null,
5        ),
6        onChanged: (value) {
7          setState(() {
8            _validate = value.isEmpty;
9        });
10	},
11),
12

In this code, _validate is a boolean state variable that tracks whether the current text field should be showing an error. The onChanged callback updates this variable, which updates the UI to show or hide the error message.

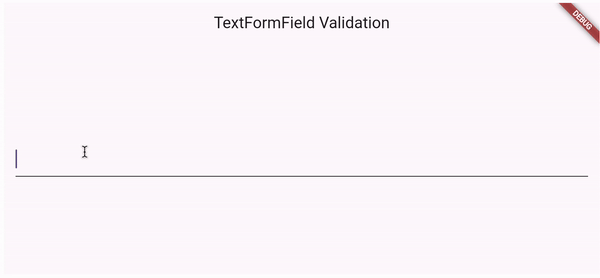

Auto Validate Mode: Real-Time Error Detection

Flutter provides an autovalidateMode property that you can set to control when the form should validate the input. For example, setting autovalidateMode to AutovalidateMode.onUserInteraction means the form will automatically validate each field whenever the user interacts with it. This offers real-time feedback, which can be very helpful in creating a responsive user experience.

Here's how you can enable auto-validation on a TextFormField:

1TextFormField(
2  autovalidateMode: AutovalidateMode.onUserInteraction,
3  validator: (value) {
4    if (value.isEmpty) {
5      return 'Please enter some text';
6    }
7    return null;
8  },
9),
10

With AutovalidateMode.onUserInteraction, the validator function is called every time the user changes the text field, allowing for immediate error detection and feedback.

Processing and Submitting Form Data

When building a Flutter app, processing and submitting form data is a critical aspect that demands attention. The user's interaction with the form widget is not just about inputting data; it's also about ensuring the data is valid and ready for the next steps.

The Submit Button: Triggering Validation and Data Submission

The submit button is the gateway between the user and the processing of their input. It's not just a UI element; it's a crucial widget that signifies the end of user interaction with the form fields and the beginning of data validation and submission. When the user presses the submit button, the form validation must be executed to confirm that all entered data is valid.

A typical Flutter form will have a submit button that, when tapped, calls a method to validate the form fields. This method will use the key associated with the form widget to access the current state and invoke the validate function. The form can submit the data if every form field is valid; otherwise, it will display validation errors to the user.

Here's a simplified example of how a submit button can trigger form validation:

1ElevatedButton(
2  onPressed: () {
3    if (_formKey.currentState.validate()) {
4      // Code to process data if all form fields are valid
5    }
6  },
7  child: Text('Submit'),
8)
9

In this code snippet, _formKey is a GlobalKey<FormState> linked to our form widget. The validate() method checks all the form fields and returns true if they pass the validation checks.

Ensuring Data Validity Before Processing

Before any data processing takes place, the form's data must be valid. This is where the concept of 'return null' comes into play. In Flutter's form validation logic, returning null from a validator function signifies that the form field's value is valid. Conversely, returning a string (the error message) indicates a problem with the user's input.

Each TextFormField widget within the form widget will have a validator property where you can define the validation logic. The validator receives the form field's value and decides whether it is valid. If the value is invalid, the validator should return an error string, which will be displayed as error text beneath the text field.

Here's an example of a validator function that checks if a text field is empty:

1String validateField(String value) {
2  if (value.isEmpty) {
3    return 'Please enter some text';
4  }
5  return null;
6}
7

In this function, an error message is returned if the user has not entered any text, which will be displayed as error text under the text field. If the text is present, the function returns null, indicating that the value is valid.

Conclusion

In conclusion, form validation is a pivotal aspect of user interface design in Flutter applications. By leveraging the power of TextFormField widgets and implementing robust validation logic, you can ensure that user input is accurate and meets the necessary criteria before processing. The key to a great user experience is providing immediate and clear feedback, which can be achieved through the strategic use of error messages and the autovalidateMode property. With the examples and strategies discussed in this blog, you should be well-equipped to create intuitive and reliable forms that enhance your Flutter apps' overall functionality and user-friendliness.
