Unlock the Power of Flutter Tween: A Comprehensive Guide

When diving into the world of Flutter animations, the Tween class is an essential part of your toolkit. The backbone supports the smooth transition between two values—a starting state and an endpoint. Whether you're creating animations for a new Flutter app or looking to add some flair to your existing project, understanding how a Tween defines the path of your animation is crucial.

In Flutter, a Tween object bridges the raw values you want to animate and the Flutter animation framework. It's the object that you'll often interact with when you want to interpolate between two values, be it double values for a widget's opacity or Offset values for its position.

Core Concepts: Tween, Animation, and AnimationController

The Tween Class

The Tween class is where you begin your journey in creating animations. It's where you define the range your animation will cover, known as the 'begin' and 'end' properties. For instance, if you want to fade a widget in and out, a Tween<double> will be your go-to, specifying the opacity values from 0.0 to 1.0.

Animation and AnimationController

The Animation itself is an evolving sequence of values over a set duration. Think of it as a film strip, where each frame is a new value that the Tween generates. But to control this sequence, you need an AnimationController—an object that takes charge of the timing and lets you start, stop, or even reverse the animation flow.

Creating animations in Flutter often involves combining these elements. The Tween object creates a range of values, the AnimationController provides the timing, and the Animation brings your widget to life by applying the current value to the property you're animating.

For example, to animate the size of a Flutter logo, you might write:

1AnimationController controller = AnimationController(
2  vsync: this,
3  duration: const Duration(seconds: 2),
4);
5Animation sizeAnimation = Tween(begin: 0.0, end: 300.0).animate(controller);
6

Here, sizeAnimation will hold the animation value as it changes over time, controlled by controller, which dictates the timing.

Crafting Basic Animations with Tween

Creating animations in your Flutter app can be as straightforward as altering the opacity of a widget or as intricate as animating its position across the screen. Flutter animations are designed to enrich the user interface with motion and feedback, making the interaction between the user and the app more intuitive and lively. Let's begin by setting up a basic animation using the Tween class.

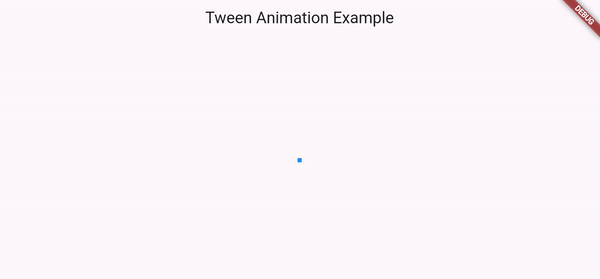

Setting Up a Basic Tween Animation

You must initialize an Animation Controller within your state class to kick off your first animation. This controller acts as the maestro, orchestrating the timing of the animation's changes. You'll also create a Tween object defining the range of values you want to animate between.

Here's how you might set up a Tween to animate the size of a widget from 0 to 100:

1class _MyHomePageState extends State<MyHomePage> with SingleTickerProviderStateMixin {
2  late AnimationController controller;
3  late Animation<double> sizeAnimation;
4
5  @override
6  void initState() {
7    super.initState();
8    controller = AnimationController(
9      duration: const Duration(seconds: 2),
10      vsync: this,
11    );
12    sizeAnimation = Tween<double>(begin: 0.0, end: 100.0).animate(controller);
13  }
14}
15

Once your Animation Controller and Tween are in place, it's time to build the animation within the widget tree. The build(BuildContext context) method is where the magic happens. Here, you'll use the AnimatedBuilder widget, which listens to your animation and rebuilds its child whenever the animation updates.

1@override
2Widget build(BuildContext context) {
3  return Scaffold(
4    body: Center(
5      child: AnimatedBuilder(
6        animation: sizeAnimation,
7        builder: (context, child) {
8          return Container(
9            height: sizeAnimation.value,
10            width: sizeAnimation.value,
11            child: child,
12          );
13        },
14        child: FlutterLogo(),
15      ),
16    ),
17  );
18}
19

Animating Properties with Tween

Tweening Double Values for Opacity and Size

With the Tween class, you can animate a wide range of properties. For example, if you want to adjust the opacity of a widget, you would use a Tween that interpolates between double values. The same goes for size; a Tween<double> can smoothly transition the width or height of a widget.

1Tween<double> opacityTween = Tween(begin: 0.0, end: 1.0);
2Tween<double> sizeTween = Tween(begin: 0.0, end: 100.0);
3

Applying Duration and Curve for Natural Motion

The duration of your animation is set within the Animation Controller, and it defines how long the transition between the beginning and ending values should take. You can apply a curve to the animation to add a more natural motion to your animation. Curves modify the rate of change of the animation value over time, allowing for acceleration, deceleration, and more complex motion patterns.

1controller = AnimationController(
2  duration: const Duration(seconds: 2),
3  vsync: this,
4);
5
6sizeAnimation = Tween<double>(begin: 0.0, end: 100.0)
7    .animate(CurvedAnimation(parent: controller, curve: Curves.easeInOut));
8

Building Complex Animations with Flutter Tween

As you become more comfortable with Flutter animations, you'll likely want to create complex animations that involve multiple properties changing in sync or sequence. Flutter's Tween class is versatile enough to handle such complexity with ease, allowing you to build intricate and performable animations.

Combining Tweens for Advanced Effects

Layering Tweens for Simultaneous Animations

You can layer multiple Tween objects to create complex animations that involve multiple properties animating simultaneously. For example, you might want to simultaneously animate a widget's opacity and size. This is achieved by creating separate Tween instances for each property and linking them to the same Animation Controller.

1late Animation<double> opacityAnimation;
2late Animation<double> sizeAnimation;
3
4@override
5void initState() {
6  super.initState();
7  controller = AnimationController(
8    duration: const Duration(seconds: 2),
9    vsync: this,
10  );
11
12  opacityAnimation = Tween<double>(begin: 0.0, end: 1.0).animate(controller);
13  sizeAnimation = Tween<double>(begin: 0.0, end: 100.0).animate(controller);
14}

Controlling Complex Animation Sequences

You can use the Interval class with Tweens for more control over the sequence of animations. This allows you to stagger the timing of animations so they don't all start and end simultaneously. By specifying different intervals for each Tween, you can choreograph a sequence of animation changes that unfold throughout the Animation Controller's timeline.

1opacityAnimation = Tween<double>(begin: 0.0, end: 1.0)
2    .animate(
3      CurvedAnimation(
4        parent: controller,
5        curve: Interval(0.0, 0.5, curve: Curves.easeIn),
6      ),
7    );
8
9sizeAnimation = Tween<double>(begin: 0.0, end: 100.0)
10    .animate(
11      CurvedAnimation(
12        parent: controller,
13        curve: Interval(0.5, 1.0, curve: Curves.easeOut),
14      ),
15    );
16

Performance Considerations in Complex Animations

Efficiently Managing the Widget Tree

Managing the widget tree efficiently is essential to maintain high performance when creating complex animations. Flutter is designed to be fast, but improperly managed animations can lead to unnecessary rebuilds of the widget tree. To avoid this, use the const constructor where possible, and consider using the AnimatedBuilder widget to rebuild only the parts of the tree that need to change.

Preventing Memory Leaks in Stateful Widgets

Memory leaks can occur if Animation Controllers are not disposed of properly in stateful widgets. To prevent this, always override the dispose method of your state class and call controller.dispose() to release the resources the Animation Controller uses.

1@override
2void dispose() {
3  controller.dispose();
4  super.dispose();
5}
6

By paying attention to these performance considerations, you can ensure that your Flutter app's complex animations run smoothly without causing memory leaks or slowing down the app.

Tween Animation in Action: Practical Examples

After exploring the theory behind Flutter animations and Tweens, it's time to see them in action. Practical examples help solidify understanding and inspire creativity when implementing your animations. Let's use examples demonstrating the power and flexibility of Tween animations in a Flutter app.

With the Tween and AnimationController in place, you can now animate the icon’s size over the specified duration. The AnimatedBuilder widget can be used to rebuild the icon’s with the new size value each time the animation ticks.

1@override
2Widget build(BuildContext context) {
3  return Scaffold(
4    body: Center(
5      child: AnimatedBuilder(
6        animation: sizeAnimation,
7        builder: (context, child) {
8          return Icon(
9            Icons.flutter_dash,
10            size: sizeAnimation.value,
11          );
12        },
13      ),
14    ),
15  );
16}
17

Interactive Animations with User Input

Responding to User Actions with Tween Updates

Interactive animations respond to user input, such as taps or swipes. You can update the Tween values based on user actions to create an interactive animation. For example, you might increase the end value of a size Tween when the user taps a button, causing the Flutter logo to grow.

1void _onUserTap() {
2  setState(() {
3    sizeAnimation = Tween<double>(
4      begin: sizeAnimation.value,
5      end: sizeAnimation.value + 50.0,
6    ).animate(controller);
7  });
8  controller.forward(from: 0.0);
9}
10

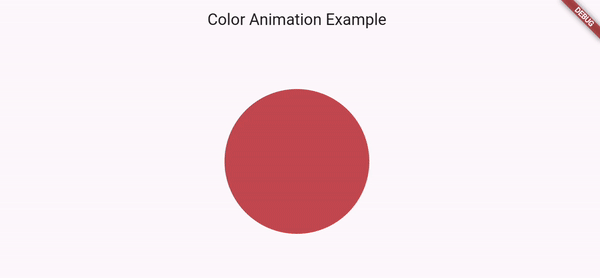

Leveraging Tween to Animate Custom Widgets

Tweens can also be used to animate custom widgets. You can animate its properties by creating a Tween that interpolates between two values relevant to your custom widget. For instance, if you have a custom widget that draws a shape, you could use a Tween to animate the shape's color or size.

1late Animation<Color?> colorAnimation;
2
3@override
4void initState() {
5  super.initState();
6  controller = AnimationController(
7    duration: const Duration(seconds: 2),
8    vsync: this,
9  );
10  colorAnimation = ColorTween(begin: Colors.blue, end: Colors.red).animate(controller);
11}
12
13// In your custom widget's build method:
14@override
15Widget build(BuildContext context) {
16  return AnimatedBuilder(
17    animation: colorAnimation,
18    builder: (context, child) {
19      return CustomPaint(
20        painter: MyCustomShapePainter(color: colorAnimation.value),
21      );
22    },
23  );
24}
25

Conclusion

Tween animations are fundamental to creating dynamic and engaging user experiences in Flutter apps. By understanding how to leverage Tweens, Animation Controllers, and the widget tree, you can craft everything from simple fades and size changes to complex, choreographed sequences that respond to user interactions.

As we've seen through practical examples, the Tween class provides a versatile and powerful way to interpolate between values, allowing you to animate almost any widget property.

Remember to manage performance by disposing of Animation Controllers properly and minimizing widget rebuilds. With these best practices, you can enhance your Flutter app with smooth, efficient, and captivating animations that delight your users.
