Unfolding Flutter Layouts: An Insight into Widgets, Responsiveness and Debugging Techniques

I have encountered various frameworks for building mobile applications as a developer, but Flutter has caught my attention the most. Flutter is a UI toolkit from Google that allows developers to build natively compiled mobile, web, and desktop applications from a single codebase. It is known for its fast development, expressive and flexible UI, and native performance.

‍

Understanding Layouts in Flutter

‍

What are Flutter Layouts?

In Flutter, everything is a widget. The core philosophy of Flutter is that it allows you to compose complex UIs from small, self-contained UI pieces, i.e., widgets. Layouts in Flutter are built using a system of widgets interacting with each other.

‍

Importance of Layouts in Flutter

Understanding Flutter layouts is crucial as they determine the visual structure of the user interface. They define how the UI elements, i.e., widgets, are positioned on the screen. They also determine how these elements change their position and size in different screen sizes.

‍

Basic Structure of a Flutter Layout

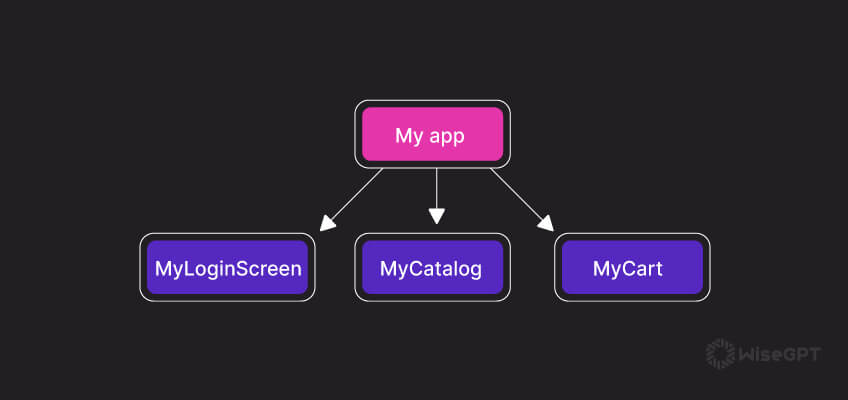

A Flutter layout is usually composed of multiple widgets. Each widget in the layout is a combination of one or more widgets. Each widget is an immutable description of part of the user interface.

1     void main() {
2      runApp(
3        Center(
4          child: Text(
5            'Hello, world!',
6            textDirection: TextDirection.ltr,
7          ),
8        ),
9      );
10    }
11

In the above code snippet, the Center widget allows you to center its child widget. The Text Widget allows you to create styled text within your application.

‍

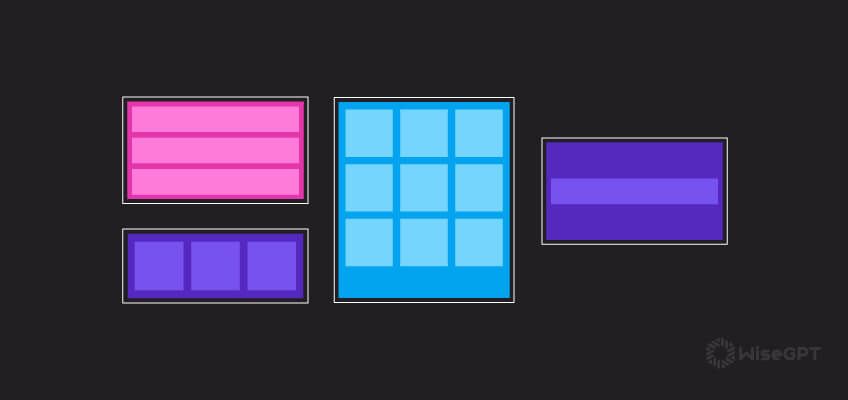

Types of Layouts in Flutter

Flutter layouts are highly flexible and customizable. They can be as simple or as complex as needed. Let's delve into the different types of layouts available in Flutter.

‍

Container

The container widget in Flutter is a convenience widget that combines common painting, positioning, and sizing widgets. It's a single-child widget, meaning it can have only one child widget. The container widget can be used to change its child widget's dimensions, padding, margin, and decoration.

Here's a simple example:

1     Container(
2      color: Colors.blue,
3      child: Text(
4        'Hello, world!',
5        style: TextStyle(
6          color: Colors.white,
7        ),
8      ),
9    )
10

In the above code snippet, the container widget has a Text widget as its child. The colour property of the container widget sets the container's background colour.

‍

Row and Column

The row and column widgets in Flutter are used to layout multiple child widgets along the horizontal and vertical direction, respectively. The row widget arranges its children in a horizontal line, and the column widget arranges its children vertically.

Here's an example:

1     Row(
2      children: <Widget>[
3        Icon(Icons.star, color: Colors.yellow[500]),
4        Icon(Icons.star, color: Colors.yellow[500]),
5        Icon(Icons.star, color: Colors.yellow[500]),
6        Icon(Icons.star, color: Colors.black),
7        Icon(Icons.star, color: Colors.black),
8      ],
9    )
10

In the above code snippet, the row widget has five Icon widgets as its children. The children property of the row widget takes a list of widgets.

‍

Stack

The stack widget in Flutter is used to overlap several children widgets. It can be useful to pile several widgets on top of each other. In a stack, the children widgets are positioned relative to the edges of the box.

Here's a simple example:

1     Stack(
2      alignment: const Alignment(0.6, 0.6),
3      children: [
4        CircleAvatar(
5          backgroundImage: AssetImage('images/pic.jpg'),
6          radius: 100,
7        ),
8        Container(
9          decoration: BoxDecoration(
10            color: Colors.black45,
11          ),
12          child: Text(
13            'Mia B',
14            style: TextStyle(
15              fontSize: 20,
16              fontWeight: FontWeight.bold,
17              color: Colors.white,
18            ),
19          ),
20        ),
21      ],
22    )
23

In the above code snippet, the stack widget has a CircleAvatar widget and a Container widget as its children. The alignment property of the stack widget determines how the children are positioned within the stack.

‍

ListView

The ListView widget in Flutter is a scrollable list of widgets arranged linearly. It's best suited for displaying a scrolling list of elements created on demand.

Here's an example:

1     ListView(
2      padding: const EdgeInsets.all(8),
3      children: <Widget>[
4        Container(
5          height: 50,
6          color: Colors.amber[600],
7          child: const Center(child: Text('Entry A')),
8        ),
9        Container(
10          height: 50,
11          color: Colors.amber[500],
12          child: const Center(child: Text('Entry B')),
13        ),
14        Container(
15          height: 50,
16          color: Colors.amber[100],
17          child: const Center(child: Text('Entry C')),
18        ),
19      ],
20    )
21

In the above code snippet, the ListView widget has three Container widgets as its children. The padding property of the ListView widget sets the padding around the ListView.

‍

GridView

The GridView widget in Flutter is a scrollable grid list of widgets. It's best suited for displaying a 2D array of elements created on demand.

Here's a simple example:

1     GridView.count(
2      crossAxisCount: 2,
3      children: List.generate(100, (index) {
4        return Center(
5          child: Text(
6            'Item $index',
7            style: Theme.of(context).textTheme.headline5,
8          ),
9        );
10      }),
11    )
12

In the above code snippet, the GridView widget has 100 Center widgets as its children. The crossAxisCount property of the GridView widget sets the number of columns in the grid.

‍

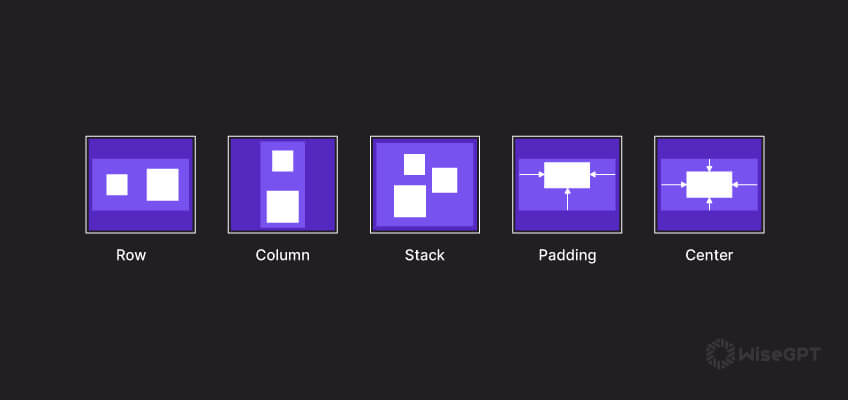

Flutter Layout Widgets

Understanding Layout Widgets in Flutter

In Flutter, layout widgets are used to arrange other widgets in a particular way. They don't represent a specific UI entity but control how their child widgets are positioned and drawn. Layout widgets can be categorized into two types: single-child layout widgets and multiple-child layout widgets.

‍

Commonly Used Layout Widgets

Padding

The padding widget in Flutter is a single child widget that adds blank space around its child. The padding property of the padding widget sets the amount of padding.

Here's an example:

1     Padding(
2      padding: EdgeInsets.all(8.0),
3      child: const Card(child: Text('Hello World!')),
4    )
5

‍

Center

The center widget in Flutter is a single-child widget that centers its child within itself.

Here's an example:

1     Center(
2      child: Text('Hello World'),
3    )
4

‍

Align

The align widget in Flutter is a single child widget that can align its child within itself and optionally size itself based on the child's size. The alignment property of the align widget sets the alignment of the child.

Here's an example:

1     Align(
2      alignment: Alignment.centerRight,
3      child: Text('Hello World'),
4    )
5

‍

Expanded

The expanded widget in Flutter is a single child widget that expands along the main axis in a Flex layout (like a Row or Column). This means it fills up the extra space in the Flex.

1         Expanded(
2          child: Text('Hello World'),
3        )
4

‍

‍SizedBox

The SizedBox widget in Flutter is a box with a specified size. It forces its child to have a specific width and/or height and is very useful for creating exact sizes.

Here's an example:

1     SizedBox(
2      width: 200.0,
3      height: 300.0,
4      child: Text('Hello World'),
5    )
6

‍

Building Responsive Layouts in Flutter

Importance of Responsive Layouts

Building responsive layouts is more important than ever in today's diverse device landscape. A responsive layout adapts to different screen sizes, orientations, and platforms. This ensures that the user interface of your Flutter app looks great on all devices, from smaller phones to larger tablets and even desktops.

‍

Techniques for Building Responsive Layouts

Building responsive layouts in Flutter involves using some specially designed widgets and techniques. Here are some techniques I use:

‍

MediaQuery

MediaQuery is a widget that can be used to get the size of the current screen. With MediaQuery, I can set sizes relative to the screen size, making the layout responsive.

1     double width = MediaQuery.of(context).size.width;
2

‍

LayoutBuilder

LayoutBuilder is a widget that builds itself based on its parent widget's size. I use LayoutBuilder to know the available space for a widget.

1     LayoutBuilder(
2      builder: (BuildContext context, BoxConstraints constraints) {
3        if (constraints.maxWidth > 600) {
4          return _buildWideContainers();
5        } else {
6          return _buildNormalContainers();
7        }
8      },
9    );
10

‍

AspectRatio

AspectRatio is a widget that attempts to size the width of the child to a specific aspect ratio. It's useful to size a widget to a specific aspect ratio.

1     AspectRatio(
2      aspectRatio: 16 / 9,
3      child: Image.network('https://example.com/image.jpg'),
4    );
5

‍

FractionallySizedBox

FractionallySizedBox is a widget that sizes its child to a fraction of the total available space. I use FractionallySizedBox when I want a box to be a certain percentage of the screen width or height.

1     FractionallySizedBox(
2      widthFactor: 0.8,
3      child: Container(
4        color: Colors.green,
5      ),
6    );
7

‍

Examples of Responsive Layouts in Flutter

Let's look at an example of a responsive layout in Flutter. In this example, I will create a layout that displays a list of items in a grid on larger screens and a list on smaller screens.

1     LayoutBuilder(
2      builder: (BuildContext context, BoxConstraints constraints) {
3        if (constraints.maxWidth > 600) {
4          return GridView.count(
5            crossAxisCount: 2,
6            children: _buildGridTiles(30),
7          );
8        } else {
9          return ListView(
10            children: _buildListTiles(30),
11          );
12        }
13      },
14    );
15

In the above code snippet, the LayoutBuilder widget chooses between a GridView and a ListView based on the screen width.

‍

Debugging Layout Issues in Flutter

Common Layout Issues in Flutter

In my experience with Flutter, I've encountered several common layout issues. These include overflow errors, widgets not aligning correctly, sizing issues, and more. Understanding these issues and debugging them is crucial for building polished and bug-free UIs.

‍

Tools for Debugging Layout Issues

Flutter provides several tools to help debug layout issues. Here are some that I frequently use:

‍

Flutter Inspector

The Flutter Inspector is a powerful tool available in the Dart DevTools suite that allows you to inspect the widget tree and view the properties of individual widgets. It's beneficial for understanding the structure of your UI and identifying issues.

‍

Layout Explorer

The Layout Explorer in Dart DevTools helps you to visualize and explore Flutter widget trees and can be useful for understanding why certain widgets are rendered the way they are.

‍

Debug Paint

Debug Paint is a feature you can enable in your Flutter app to visually debug your layouts. It paints a border around each widget, making it easier to see how they are laid out on the screen.

You can enable it with the following command:

1     void main() {
2      debugPaintSizeEnabled = true;
3      runApp(MyApp());
4    }
5

‍

Tips for Debugging Layout Issues

Here are some tips I've found helpful in debugging layout issues in Flutter:

1. Understand the Flutter layout model: Flutter uses a box constraint model for its layouts. Understanding this model can help identify why specific layout issues occur.
2. Use the right widget for the job: Flutter has a rich set of layout widgets. Make sure you're using the right one for your needs.
3. Don't be afraid to break your layout into smaller parts: If your layout is complex, break it down into smaller, manageable widgets. This makes it easier to understand and debug.
4. Use Flutter's debugging tools: Use Flutter's debugging tools like the Flutter Inspector, Layout Explorer, and Debug Paint.

‍

Best Practices for Layouts in Flutter

Designing Efficient Layouts

Designing efficient layouts in Flutter is crucial for the performance and responsiveness of your Flutter app. Here are some tips I follow:

1. Minimize the depth of your widget tree: The deeper your widget tree, the more expensive it is to layout your widgets. Try to keep your widget tree as shallow as possible.
2. Use const widgets where possible: Using const widgets can help Flutter rebuild only the widgets that need to be updated, improving the performance of your app.
3. Avoid unnecessary nesting of widgets: Each widget adds a cost to your app. Avoid unnecessary nesting of widgets and keep your widget tree clean and efficient.

‍

Avoiding Common Mistakes in Layout Design

Avoiding common mistakes in layout design can save you time and frustration. Here are some common mistakes I avoid:

1. Not handling overflow: Widgets in Flutter can overflow their containers if they are not appropriately constrained. Always make sure your widgets fit within their parent containers.
2. Not testing on different screen sizes: Always test your layouts on different screen sizes to ensure they are responsive and look good on all devices.
3. Ignoring the Flutter layout model: Flutter's layout model differs from other frameworks. Ignoring this can lead to unexpected results. Always keep the Flutter layout model in mind when designing your layouts.

‍

Tips for Improving Layout Performance

Improving layout performance can make your Flutter app feel smoother and more responsive. Here are some tips I use:

1. Use the right layout widgets: Flutter provides a variety of layout widgets, each optimized for different use cases. Using the right widget can improve the performance of your layouts.
2. Leverage Flutter's layout model: Flutter's layout model allows you to control how your widgets are sized and positioned. Leveraging this can lead to more efficient layouts.
3. Profile your layouts: Use Flutter's profiling tools to identify and optimise bottlenecks in your layouts.

‍

Harnessing the Power of WiseGPT for Efficient Flutter Layouts and API Integration

Throughout this guide, we have explored the exciting world of layouts in Flutter. We've discovered how widgets, the fundamental building blocks of Flutter, come together to create complex and beautiful user interfaces. We've delved into various layouts like container, row and column, stack, ListView, and GridView, and learned how to use layout widgets like padding, centre, align, expanded, and SizedBox.

However, as we've seen, building these layouts and integrating them with APIs can be a complex task. It involves writing a lot of code, understanding the intricacies of the Flutter layout system, and dealing with potential errors and issues. This is where WiseGPT comes into play.

WiseGPT is a powerful tool that can generate code in your IDE for your UI widgets according to the user story. Imagine being able to create a complex Flutter layout by simply describing it! No more worrying about how to structure your widget tree. With WiseGPT, you can focus on what really matters - the user story - and let WiseGPT handle the code generation.

But that's not all. WiseGPT can also generate code for API integration. It's a plugin for generating code for APIs into your Flutter project with no limit on the output size. It mirrors your coding style, and models and functions are auto-created. You can eliminate manual API requests, response parsing, and error management strategies for complicated API endpoints. WiseGPT handles everything, making your Flutter development process smoother and more efficient.

In conclusion, mastering layouts in Flutter is an essential skill for any Flutter developer. But with tools like WiseGPT, the process becomes much easier and more enjoyable. So, whether you're building a simple app or a complex one, remember that with the right tools and knowledge, you can create any layout you can imagine. Happy coding!

‍
