Understanding the React Redux Flow Chart: A Comprehensive Guide

React-Redux is the official Redux UI binding library for React. It enables your React components to read data from a Redux store and dispatch actions to the store to update data. The core idea behind React-Redux is to facilitate components to interact with the Redux store, creating a data flow that is both predictable and easy to track. This makes managing the state in React apps significantly more straightforward.

Managing state is crucial in React apps because it determines how data flows between components. When a user interacts with a component, the state of that component may change. This state update then triggers the component to re-render, and the data flows to child components.

In complex React apps with multiple components, managing this data flow can become challenging. This is where Redux comes into play. The Redux store holds the global state of the entire application, providing a single source of truth. This global state is read-only and can only be updated through a reducer function, ensuring a predictable data flow.

Why Use Redux for State Management

Redux provides a consistent environment for state management in React apps. The Redux store is the heart of every Redux app, storing the initial state of the app and controlling the data flow.

When a user interacts with a Redux app, an action is dispatched to the store. The store then calls the root reducer function with the current state and dispatched action. The reducer function, which contains the app's immutable update logic, returns a new state based on the action. The store notifies the React components that the state has changed, causing the components to re-render and the data to flow again.

Redux follows three principles: the state is read-only and can only be changed by emitting an action; the state updates are handled by pure functions (reducers); and the state is stored in a single object tree within a single store. These principles ensure a predictable and consistent data flow across the Redux application.

This introduction should give you a basic understanding of React-Redux and the importance of managing the data flow in React apps. In this blog, we will cover important concepts in Redux in more detail.

Understanding the Redux Flow

The Store: The Global State

The Redux store is the object that brings together the state, actions and reducers in a Redux application. It provides methods to dispatch actions, get the current state, and register listeners. The store is created with the createStore function, which takes the root reducer function as its first argument and the initial state of the app as its second argument.

The store holds the global state of the entire application. The global state is an object that is stored in the Redux store and is read-only. The state can only be updated by dispatching actions to the store, which then calls the reducer function to compute the new state.

1import { createStore } from 'redux'
2
3const store = createStore(rootReducer, initialState)

Actions: The Information Senders

In Redux, actions are plain JavaScript objects that carry information from the app to the Redux store. They are the only source of information for the store. Actions must have a type property that indicates the type of action to be performed. They can optionally carry some data.

When a user interacts with a Redux app, an action is usually dispatched. This action is then sent to the Redux store, triggering a state update and a new data flow.

1const addAction = {
2  type: 'ADD_TODO',
3  payload: {
4    text: 'Learn Redux'
5  }
6}

Reducers: The State Transformers

Reducers in Redux are pure functions that take the current state and an action, and return a new state. They are responsible for implementing the state update logic of the app. When an action is dispatched to the store, the store invokes the reducer function with the current state and the dispatched action. The reducer function returns a new state, causing the data to flow through the app.

1function counterReducer(state = 0, action) {
2  switch (action.type) {
3    case 'INCREMENT':
4      return state + 1
5    case 'DECREMENT':
6      return state - 1
7    default:
8      return state
9  }
10}

Dispatch: The Action Trigger

Dispatching is the process of sending actions to the Redux store. Actions are dispatched using the dispatch function provided by the Redux store. When an action is dispatched, the Redux store calls the reducer function with the current state and the dispatched action. The reducer function returns a new state, and the store state is updated. This triggers a re-render of the React components, and the data flows through the app.

1store.dispatch(addAction)

The React-Redux Flow Chart

Explanation of the Flow Chart

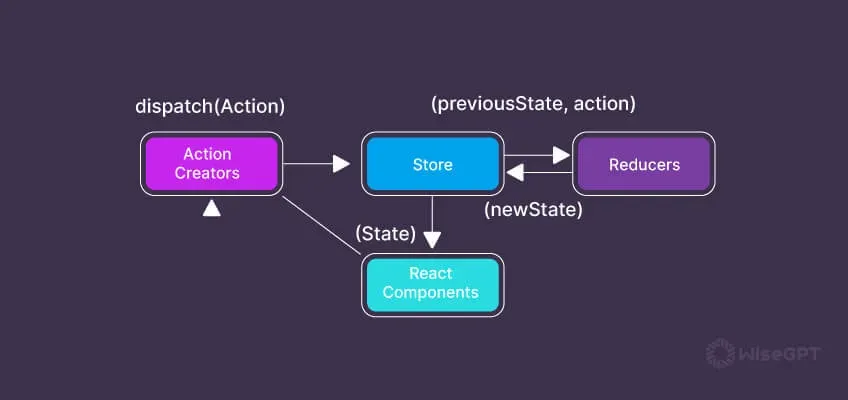

The React-Redux flow chart is a visual representation of the data flow in a Redux app. It starts with the user interacting with the app, triggering an action. This action is dispatched to the Redux store. The store then calls the reducer function with the current state and the dispatched action. The reducer function returns a new state. The store notifies the React components that the state has changed, causing the components to re-render and the data to flow again.

The flow chart provides a clear understanding of the Redux data flow, helping developers to manage the state of their React apps more effectively.

Step-by-step Breakdown of the Flow Chart

1. User Interaction: The flow begins when a user interacts with the app. This interaction triggers an action dispatch.
2. Action Dispatch: The action is dispatched to the Redux store. This action contains information about what happened in the app, like a user clicking a button or submitting a form.
3. Store Updates: The Redux store calls the reducer function with the current state and the dispatched action. The reducer function, containing the app's state update logic, returns a new state.
4. State Change: The store updates with the new state returned by the reducer function. This new state is now the current state of the app.
5. Re-render: The store notifies the React components that the state has changed. The components re-render with the new state, and the data flows again, updating the UI.

Importance of Each Step in the Flow Chart

Each step in the React-Redux flow chart is crucial for managing the state in a Redux app.

• The user interaction triggers the data flow. Without user interactions, the app state would remain static and unresponsive.
• The action dispatch is important because it sends information about the user interaction to the Redux store.
• The store update is where the state transformation occurs, based on the dispatched action and the current state.
• The state change is significant because it updates the global state, affecting the entire application.
• The re-render step is vital because it updates the UI to reflect the new state. This is the final step in the data flow, after which the cycle can begin again with another user interaction.

Understanding each step in the flow chart can help you write better code, debug issues more effectively, and build more robust Redux apps.

Conclusion

Understanding the React Redux flow chart is fundamental to managing the state in React applications effectively. It provides a visual representation of how data flows in a Redux application, from the point where a user interacts with the app, to the dispatching of actions, and finally, to the updating of state and re-rendering of components.
