React Grid Layout: Building Visually Stunning Web Grids

React-Grid-Layout is a dynamic grid layout system for React applications, offering a flexible and responsive way to arrange elements in a grid pattern. This library is handy for creating complex and interactive user interfaces that need to adapt to different screen sizes and devices.

Understanding the Grid Layout System

At its core, the grid layout system is a structure that allows developers to position and organize UI components in a precise, grid-like fashion. React-Grid-Layout takes this concept further by providing a responsive grid layout that adjusts to the screen size, ensuring the user experience is consistent across all devices.

The library leverages a grid layout system entirely built with React, eliminating the need for jQuery or other dependencies. This results in a more streamlined integration with React projects and better performance. With React-Grid-Layout, developers can create grid items that users can drag and resize, adding a layer of interactivity to the application.

React-Grid-Layout's system is based on a series of grid attributes, such as the number of columns (cols), the height of each row (rowHeight), and the space between items (margin). These highly customizable attributes allow developers to design a grid that perfectly fits their application's design requirements.

Setting Up Your React Application

To get started, you first need to install the package through npm, which can be done with the following command:

1npm install react-grid-layout
2

Once installed, it's essential to import the necessary styles to ensure that the grid and its items are displayed correctly:

1import 'react-grid-layout/css/styles.css';
2import 'react-resizable/css/styles.css';
3

You can now incorporate the grid layout into your React components with the setup complete. Here's an example of how to create a simple grid layout with three uniquely configured items using a functional component approach:

1import React from 'react';
2import GridLayout from 'react-grid-layout';
3import 'react-grid-layout/css/styles.css';
4import 'react-resizable/css/styles.css';
5
6const ExampleGrid = () => {
7  // Define the layout configuration for each grid item
8  const layoutConfig = [
9    { i: 'item1', x: 0, y: 0, w: 2, h: 3 },
10    { i: 'item2', x: 2, y: 0, w: 4, h: 3 },
11    { i: 'item3', x: 6, y: 0, w: 2, h: 3 }
12  ];
13
14  return (
15    <GridLayout className="example-layout" layout={layoutConfig} cols={12} rowHeight={30} width={1200}>
16      <div key="item1" style={{ background: '#ff4d4f' }}>Item 1</div>
17      <div key="item2" style={{ background: '#40a9ff' }}>Item 2</div>
18      <div key="item3" style={{ background: '#73d13d' }}>Item 3</div>
19    </GridLayout>
20  );
21};
22
23export default ExampleGrid;
24

In this code snippet, we define a layoutConfig array where each object represents a grid item with a unique key (i), its position on the grid (x, y), and its dimensions (w, h). This configuration is then passed to the GridLayout component, which renders the grid items accordingly.

Basics of React Grid Components

React Grid components are the building blocks of the grid layout system provided by React-Grid-Layout. They are React components that you can manipulate to create a flexible and interactive grid within your application. Understanding the properties and capabilities of these components is crucial to harnessing the full potential of the library.

Exploring Grid Item Properties

Each grid item in React-Grid-Layout has properties that define its behavior and appearance within the grid. These properties include:

• x and y: The coordinates of the grid item within the grid layout, representing the column and row, respectively.
• w and h: The width and height of the grid item, measured in grid units.
• minW and minH: The grid item's minimum width and height can be resized to.
• maxW and maxH: The maximum width and height that the grid item can be resized to.
• static: A boolean that, when set to true, makes the grid item immovable and non-resizable, effectively locking it in place.
• isDraggable: A boolean that enables or disables the ability to drag the grid item.
• isResizable: A boolean that enables or disables the ability to resize the grid item.

These properties allow for a high degree of customization for each grid item, enabling developers to create a grid layout that is both functional and aesthetically pleasing. For example, you might want to create a grid item that spans multiple columns and rows but has a fixed position and size:

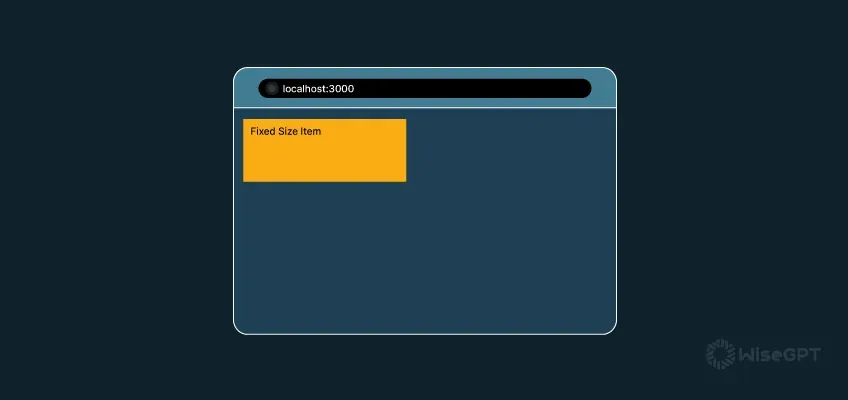

1const gridItemProps = {
2  i: 'fixedItem',
3  x: 0,
4  y: 0,
5  w: 4,
6  h: 5,
7  static: true
8};
9
10// Inside your render or return method of the component
11<div key={gridItemProps.i} data-grid={gridItemProps} style={{ background: '#faad14' }}>
12  Fixed Size Item
13</div>
14

Managing Grid Layout Props RGL

The GridLayout component itself also accepts a variety of props that control the overall behavior of the grid. Some of the key grid layout props (RGL) include:

• layout: An array of objects defining the layout of each grid item.
• cols: The number of columns in the grid.
• rowHeight: The height of each row in pixels.
• width: The width of the grid in pixels.
• margin: The margin between items in the grid, specified as an array with horizontal and vertical margins, e.g., [10, 10].
• containerPadding: The padding inside the grid container can also be specified as an array.
• isDraggable: A boolean that determines whether all grid items are draggable.
• isResizable: A boolean that determines whether all grid items are resizable.
• useCSSTransforms: A boolean that, when set to true, uses CSS transforms for positioning items for better performance.

By managing these props, you can control the overall layout and behavior of the grid. For instance, you might want to create a grid with a specific number of columns and a fixed row height:

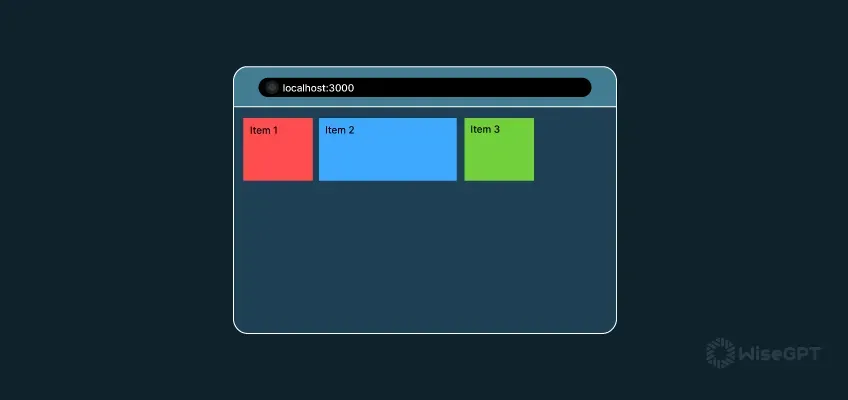

1const gridLayoutProps = {
2  className: 'my-grid',
3  cols: 6,
4  rowHeight: 100,
5  width: 800
6};
7
8// Inside your render or return method of the component
9<GridLayout {...gridLayoutProps}>
10	<div key="item1" style={{ background: '#ff4d4f' }}>Item 1</div>
11  <div key="item2" style={{ background: '#40a9ff' }}>Item 2</div>
12  <div key="item3" style={{ background: '#73d13d' }}>Item 3</div>
13</GridLayout>
14

Creating a Responsive Grid Layout

Creating a responsive grid layout is essential for modern web applications that need to adapt to various screen sizes and devices. React-Grid-Layout offers a responsive solution that automatically adjusts the layout based on the container's width or the screen, ensuring a consistent and user-friendly experience across all devices.

Utilizing Responsive Grid Layout Props

React-Grid-Layout provides a ResponsiveGridLayout component that extends the basic GridLayout capabilities with responsive features to create a responsive grid layout. This component requires a set of responsive props that define how the grid should behave at different breakpoints:

• breakpoints: An object mapping named breakpoints to pixel values, for example, { lg: 1200, md: 996, sm: 768, xs: 480, xxs: 0 }.
• cols: An object mapping breakpoints to the number of columns for each breakpoint, such as { lg: 12, md: 10, sm: 6, xs: 4, xxs: 2 }.
• layouts: An object where each key corresponds to a breakpoint name and its value is an array of grid item layout configurations.
• onBreakpointChange: A callback function triggered when the grid crosses a breakpoint threshold.

These responsive grid layout props allow you to define multiple layouts for different screen sizes, ensuring your grid adapts to the available space. For example, you might define a layout that has three columns on large screens but only one column on mobile devices:

1import { Responsive, WidthProvider } from 'react-grid-layout';
2
3const ResponsiveGridLayout = WidthProvider(Responsive);
4
5const responsiveProps = {
6  className: 'responsive-grid',
7  breakpoints: { lg: 1200, md: 960, sm: 720, xs: 480, xxs: 0 },
8  cols: { lg: 3, md: 3, sm: 2, xs: 1, xxs: 1 },
9  layouts: {
10    lg: [{ i: '1', x: 0, y: 0, w: 1, h: 2 }],
11    md: [{ i: '1', x: 0, y: 0, w: 1, h: 2 }],
12    // More layouts for other breakpoints...
13  }
14};
15
16// Inside your render or return method of the component
17<ResponsiveGridLayout {...responsiveProps}>
18  <div key="1" style={{ background: '#4caf50' }}>Responsive Item 1</div>
19  {/* More grid items... */}
20</ResponsiveGridLayout>
21

Handling Window Resize Events

To ensure that the grid layout responds to window resize events, React-Grid-Layout uses a WidthProvider higher-order component (HOC). This HOC automatically listens to window resize events and adjusts the grid width accordingly. It also provides the necessary width prop to the ResponsiveGridLayout component.

Sometimes, you may need to manually handle window resizing events, especially if you have more complex resizing logic or are integrating with other libraries. You can do this by attaching an event listener to the window object and updating the state of your component based on the new window size:

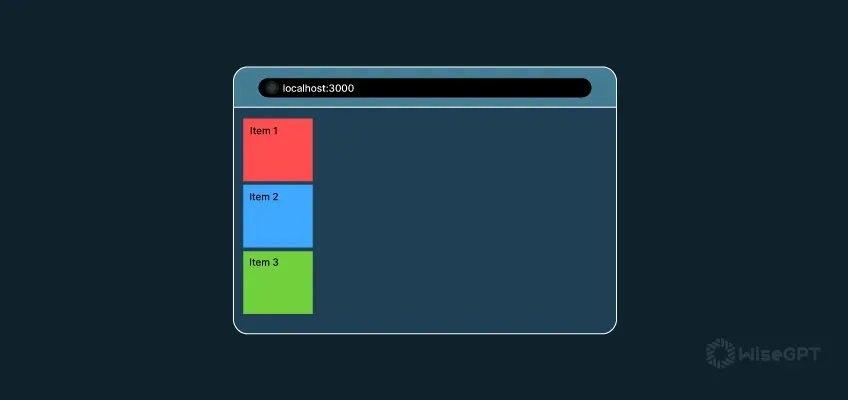

1import React, { useState, useEffect } from "react";
2import { Responsive, WidthProvider } from "react-grid-layout";
3
4const ResponsiveGridLayout = WidthProvider(Responsive);
5
6const ExampleGrid = () => {
7  const [windowWidth, setWindowWidth] = useState(window.innerWidth);
8
9  useEffect(() => {
10    const handleResize = () => {
11      setWindowWidth(window.innerWidth);
12    };
13
14    window.addEventListener("resize", handleResize);
15
16    return () => {
17      window.removeEventListener("resize", handleResize);
18    };
19  }, []);
20
21  const responsiveProps = {
22    className: "responsive-grid",
23    breakpoints: { lg: 1200, md: 960, sm: 720, xs: 480, xxs: 0 },
24    cols: { lg: 3, md: 3, sm: 2, xs: 1, xxs: 1 },
25    layouts: {
26      lg: [{ i: "1", x: 0, y: 0, w: 1, h: 2 }],
27      md: [{ i: "1", x: 0, y: 0, w: 1, h: 2 }],
28      // More layouts for other breakpoints...
29    },
30  };
31
32  return (
33    <ResponsiveGridLayout {...responsiveProps}>
34      <div key="item1" style={{ background: "#ff4d4f" }}>
35        Item 1
36      </div>
37      <div key="item2" style={{ background: "#40a9ff" }}>
38        Item 2
39      </div>
40      <div key="item3" style={{ background: "#73d13d" }}>
41        Item 3
42      </div>
43    </ResponsiveGridLayout>
44  );
45};
46
47export default ExampleGrid;
48

In this example, we use the useState and useEffect hooks to create a state variable for the window width and update it whenever the window is resized. This allows us to dynamically adjust the grid's layout or other properties based on the current window size, providing a responsive experience for the user.

Advanced Grid Layout Customization

React-Grid-Layout offers many options for advanced grid layout customization when creating more sophisticated and intricate user interfaces. Developers can fine-tune every aspect of the grid's appearance and behavior, allowing for the creation of complex interfaces that meet specific design and functionality requirements.

Rebuilding Grid Layout for Complex Interfaces

For applications that require a complicated layout, React-Grid-Layout provides the flexibility to rebuild and redefine the grid as needed. This can involve dynamically adding, removing, or updating grid items based on user interactions or data changes. To facilitate this, developers can manipulate the layout array, which describes the position and size of each grid item.

When rebuilding a grid layout, it's essential to ensure that each grid item's properties are updated correctly to reflect the new configuration. This might include adjusting the x, y, w, and h properties to reposition items or changing the minW, minH, maxW, and maxH properties to alter their resizable bounds.

For example, you might have a dashboard where widgets can be added or removed by the user:

1import React, { useState } from 'react';
2import GridLayout from 'react-grid-layout';
3
4const ComplexInterfaceGrid = () => {
5  const [layout, setLayout] = useState([
6    { i: 'widget1', x: 0, y: 0, w: 2, h: 4 },
7    // More widgets...
8  ]);
9
10  const addWidget = () => {
11    const newWidget = { i: `widget${layout.length + 1}`, x: 0, y: Infinity, w: 2, h: 4 };
12    setLayout([...layout, newWidget]);
13  };
14
15  // Function to remove a widget...
16  // Function to update a widget...
17
18  return (
19    <GridLayout
20      className="complex-interface-layout"
21      layout={layout}
22      cols={12}
23      rowHeight={30}
24      width={1200}
25      onLayoutChange={(newLayout) => setLayout(newLayout)}
26    >
27      {layout.map((item) => (
28        <div key={item.i} style={{ background: '#009688' }}>
29          {`Widget ${item.i}`}
30        </div>
31      ))}
32      {/* Add button to trigger addWidget */}
33    </GridLayout>
34  );
35};
36
37export default ComplexInterfaceGrid;
38

In this example, we use a useState hook to manage the grid's layout state and provide functions to add, remove, or update widgets. The onLayoutChange prop updates the layout state whenever the user interacts with the grid, ensuring that the state always reflects the current layout.

Leveraging Horizontal and Vertical Margin

Margins play a crucial role in the visual spacing between grid items, affecting the overall aesthetics and readability of the grid layout. React-Grid-Layout allows developers to specify horizontal and vertical margins using the margin prop, which accepts an array of two numbers representing the horizontal margin (x-axis) and the vertical margin (y-axis), respectively.

Adjusting the margins can help handle visual spacing more granularly, providing the necessary padding between items without affecting their internal content. This is particularly useful when dealing with a more complicated layout requiring precise control over spacing.

For instance, you might want to increase the spacing between items on larger screens while keeping them closer together on mobile devices:

1const gridMarginProps = {
2  margin: [20, 20], // Default margin for all breakpoints
3  // Responsive margin overrides for specific breakpoints
4  responsiveMargins: {
5    lg: [30, 30],
6    md: [20, 20],
7    sm: [10, 10],
8    xs: [5, 5],
9    xxs: [5, 5]
10  }
11};
12
13// Inside your render or return method of the component
14<ResponsiveGridLayout
15  className="layout-with-margins"
16  cols={{ lg: 12, md: 10, sm: 6, xs: 4, xxs: 2 }}
17  rowHeight={30}
18  width={1200}
19  margin={gridMarginProps.margin}
20  // Additional responsive props...
21>
22  {/* Grid items... */}
23</ResponsiveGridLayout>
24

This code snippet defines a default margin and a set of responsive margins that will be applied at different breakpoints. This allows the grid to maintain a consistent and visually appealing layout across various device sizes.

Performance Optimization Techniques

Performance is critical to user experience, especially for interactive and dynamic layouts such as those created with React-Grid-Layout. Optimizing performance ensures the grid remains smooth and responsive, even with many grid items or complex interactions.

React Hooks Performance in Grid Layouts

React hooks, introduced in React 16.8, allow for state and lifecycle features in functional components. When used correctly, hooks can lead to performance improvements in grid layouts. However, it's essential to use them wisely to avoid unnecessary re-renders.

For instance, the useMemo and useCallback hooks can be used to memoize grid items and their layout configurations, ensuring that these components only re-render when their props have changed:

1import React, { useMemo } from 'react';
2import GridLayout from 'react-grid-layout';
3
4const MyOptimizedGrid = ({ items }) => {
5  const gridItems = useMemo(() => items.map(item => (
6    <div key={item.id} data-grid={item.layout} style={{ background: item.color }}>
7      {item.content}
8    </div>
9  )), [items]);
10
11  return (
12    <GridLayout className="optimized-grid" cols={12} rowHeight={30} width={1200}>
13      {gridItems}
14    </GridLayout>
15  );
16};
17

In this example, useMemo is used to memoize the grid items, so they are only re-computed when the items prop changes. This can significantly reduce the number of re-renders and improve performance.

CSS Transforms for Grid Performance

CSS transforms can enhance grid layouts' performance by offloading positioning and animation work to the GPU. React-Grid-Layout uses CSS transforms by default to position grid items, which is more efficient than traditional layout methods involving top and left properties.

The useCSSTransforms prop in React-Grid-Layout controls the use of CSS transforms. When set to true, the library will use transforms for moving and resizing grid items:

1<GridLayout useCSSTransforms={true}>
2  {/* Grid items... */}
3</GridLayout>
4

This is especially beneficial for animations and during dragging and resizing operations, as it results in smoother transitions and less CPU load, leading to better performance and a more fluid user experience.

Additionally, the transformScale prop should be used when dealing with containers that have CSS scaling applied. This prop ensures that the drag and resize actions are correctly scaled, preventing misalignment issues:

1<GridLayout transformScale={1.5}>
2  {/* Grid items... */}
3</GridLayout>

Interactivity with React Grid

Interactivity is a key feature of React-Grid-Layout, allowing users to manipulate the grid layout in real-time. Making grid items draggable and resizable enhances the user experience by providing a dynamic interface that can be customized.

Making Grid Items Draggable and Resizable

React-Grid-Layout provides boolean props that can be applied at both the grid and individual item levels to make grid items draggable and resizable. The isDraggable and isResizable props enable these interactive features:

1import React from 'react';
2import GridLayout from 'react-grid-layout';
3
4const InteractiveGrid = () => {
5  return (
6    <GridLayout
7      className="interactive-grid"
8      cols={12}
9      rowHeight={30}
10      width={1200}
11      isDraggable={true}
12      isResizable={true}
13    >
14      <div key="1" style={{ background: '#ff5722' }}>Draggable and Resizable Item 1</div>
15      <div key="2" style={{ background: '#00bcd4' }}>Draggable and Resizable Item 2</div>
16      {/* Additional grid items... */}
17    </GridLayout>
18  );
19};
20
21export default InteractiveGrid;
22

In this example, all grid items within InteractiveGrid are both draggable and resizable, allowing users to reposition and resize them within the grid. If you need to disable these features for specific items, you can use the static property on individual grid items:

1<div key="3" data-grid={{ static: true }} style={{ background: '#4caf50' }}>
2  Static Item 3
3</div>
4

This static property overrides the grid-level isDraggable and isResizable settings, making "Item 3" fixed in its position and size.

Capturing Data Grid Events

React-Grid-Layout emits various events that can be captured to respond to user interactions. These events include callbacks for drag and resize actions, such as onDragStart, onDrag, onDragStop, onResizeStart, onResize, and onResizeStop. By handling these events, developers can implement custom logic that runs in response to user actions:

1const handleDragStart = (layout, oldItem, newItem, placeholder, e, element) => {
2  console.log('Started dragging item with id:', oldItem.i);
3};
4
5const handleDragStop = (layout, oldItem, newItem, placeholder, e, element) => {
6  console.log('Stopped dragging item with id:', oldItem.i);
7  // Update the layout state or perform other actions
8};
9
10const handleResizeStop = (layout, oldItem, newItem, placeholder, e, element) => {
11  console.log('Resized item with id:', oldItem.i);
12  // Update the layout state or perform other actions
13};
14
15// Inside your render or return method of the component
16<GridLayout
17  onDragStart={handleDragStart}
18  onDragStop={handleDragStop}
19  onResizeStop={handleResizeStop}
20>
21  {/* Grid items... */}
22</GridLayout>
23

By capturing these events, you can, for example, persist the new layout to local storage, update the application state, or synchronize changes with a backend server.

Conclusion and Best Practices

React-Grid-Layout is a powerful tool for creating dynamic and responsive grid layouts in React applications. It provides a high level of customization and interactivity, allowing developers to build complex layouts that are both visually appealing and user-friendly. As we conclude, it's essential to highlight best practices that ensure the reusability and maintainability of grid layouts and strategies to future-proof them.

Ensuring Reusability and Maintainability

To ensure that your grid layouts are reusable and easy to maintain, consider the following best practices:

• Componentization: Break down your grid layouts into smaller, reusable components. This makes your code more manageable and allows you to reuse these components across different parts of your application.
• Separation of Concerns: Keep the layout configuration separate from the presentation logic. Store the grid layout configuration in a state management system or context to keep your UI components clean and focused on rendering.
• Documentation: Document your grid layout components and their props thoroughly. Clear documentation helps other developers in your team understand how to use and extend the grid layouts.
• Testing: Write unit and integration tests for your grid components. Testing ensures that changes to the grid layout do not introduce bugs and that the layout behaves as expected across different scenarios.
• Performance Optimization: Use React performance optimization techniques such as memoization and lazy loading to prevent unnecessary re-renders and keep your grid layouts performing smoothly.

Future-Proofing Your Grid Layouts

To future-proof your grid layouts, consider the following strategies:

• Responsive Design: Always design your grid layouts with responsiveness in mind. Use the responsive features of React-Grid-Layout to ensure that your layouts adapt to different screen sizes and devices.
• Up-to-Date Dependencies: Keep React-Grid-Layout and its dependencies up to date. Regularly update your packages to benefit from performance improvements, new features, and bug fixes.
• Scalability: Design your grid layouts to be scalable. As your application grows, your grid should be able to handle an increasing number of items and more complex layouts without significant refactors.
• Accessibility: Ensure that your grid layouts are accessible. This includes proper keyboard navigation, screen reader support, and adherence to WCAG guidelines.
• Extensibility: Write your grid layout code in a way that allows for easy extensibility. You should be able to add new features, such as additional interactivity or integration with other libraries, without major overhauls.

By following these best practices and strategies, you can create grid layouts that are effective and engaging for users today but adaptable and robust enough to meet the needs of tomorrow. React-Grid-Layout is a solid foundation for building these layouts, and with careful planning and development, you can leverage its full potential in your React applications.

Short on time? Speed things up with DhiWise!!

Tired of manually designing screens, coding on weekends, and technical debt? Let DhiWise handle it for you!

You can build an e-commerce store, healthcare app, portfolio, blogging website, social media or admin panel right away. Use our library of 40+ pre-built free templates to create your first application using DhiWise.
