Multiselect Dropdown HTML: Selecting Multiple Options with Ease

Crafting a seamless user experience means building interfaces that are both intuitive and efficient, and the multi-select dropdown in HTML is a powerful tool to achieve just that. This versatile form control allows users to select multiple options in a single dropdown, enhancing functionality for forms, surveys, and any scenario requiring multiple choices.

With the multi-select dropdown, you can streamline interactions, making user choices straightforward and visually appealing—essential for modern, user-friendly web applications.

What is a Multi-select Dropdown?

A multi-select dropdown, also known as a multiple select, enables users to select multiple options within a single form control. Unlike a single-line dropdown, which limits the user to only one option, a multi-select dropdown expands user interaction by allowing for multiple selections.

How to Implement a Multiselect Dropdown

To create a multi-select dropdown in HTML, you will use the select element with the "multiple" attribute. This boolean attribute indicates that multiple options can be selected. The multiple attribute does not require a value; its presence alone on the select element enables the multiple selection feature.

Here is a basic example of a multi-select dropdown in HTML:

1<select name="fruits" multiple>
2  <option value="apple">Apple</option>
3  <option value="orange">Orange</option>
4  <option value="banana">Banana</option>
5  <option value="grape">Grape</option>
6</select>

​

In this example, the select element has the "multiple" attribute, allowing users to select multiple fruits from the list.

How to Select Multiple Options

To select multiple options in a dropdown, users can click on the desired options while holding down the Ctrl key (Command key on some operating systems) for non-adjacent items. For a range of adjacent items, click the first item, then hold down the Shift key and click the last item.

Customizing the Multiselect Dropdown

While most browsers provide a default scrolling list box for multiple selections, you can create a custom multi-select dropdown to enhance user experience. This can involve using JavaScript and CSS to style the dropdown menu and control its behavior.

Accessibility and Compatibility

It's important to ensure that your multi-select dropdown is accessible and functions correctly across different operating systems and browsers. The multiple attribute is widely supported, making it a reliable choice for most browsers.

Best Practices for Multiselect Dropdowns

When designing a multi-select dropdown, consider the following best practices to ensure a user-friendly experience:

• Clarity: Clearly indicate that multiple options can be selected.

• Feedback: Provide visual feedback for selected options.

• Limitations: If necessary, limit how many options can be selected.

• Default Values: Set a default value if applicable to guide the user.

• Size: Adjust the size of the dropdown list to show several options at once.

Example of a User-Friendly Multiselect Dropdown

Here's an example of a more user-friendly multi-select dropdown with some CSS for styling:

1<select name="pets" multiple style="width: 200px; height: 100px;">
2  <option value="dog">Dog</option>
3  <option value="cat">Cat</option>
4  <option value="bird">Bird</option>
5  <option value="rabbit">Rabbit</option>
6</select>

​

In this example, the width and height styles make it easier for users to see that multiple selections are possible without the need to scroll.

Advanced Techniques for Multiselect Dropdowns

For more advanced users, consider using JavaScript to enhance the functionality of your multi-select dropdown. You can add search filters, checkboxes, or even group options for better organization.

Using Checkboxes for Multiple Selections

Checkboxes are a common way to allow users to make multiple selections. By combining checkboxes with a dropdown list, you can create a multi-select dropdown that is both intuitive and space-efficient.

To create a multi-select dropdown with checkboxes, you will need to use a combination of HTML, CSS, and JavaScript. This approach allows users to make multiple selections more intuitively, as checkboxes are a universally recognized interface element for multiple choices.

Here is an example of how you can implement a multiselect dropdown using checkboxes:

1<!DOCTYPE html>
2<html lang="en">
3<head>
4<meta charset="UTF-8">
5<meta name="viewport" content="width=device-width, initial-scale=1.0">
6<title>Checkbox Multiselect Dropdown</title>
7<style>
8.dropdown {
9  position: relative;
10  display: inline-block;
11}
12
13.dropdown-content {
14  display: none;
15  position: absolute;
16  background-color: #f9f9f9;
17  min-width: 160px;
18  box-shadow: 0px 8px 16px 0px rgba(0,0,0,0.2);
19  z-index: 1;
20}
21
22.dropdown-content label {
23  display: block;
24  margin-top: 10px;
25}
26
27.dropdown:hover .dropdown-content {
28  display: block;
29}
30</style>
31</head>
32<body>
33
34<div class="dropdown">
35  <button>Select Fruits</button>
36  <div class="dropdown-content">
37    <label><input type="checkbox" name="fruits" value="apple"> Apple</label>
38    <label><input type="checkbox" name="fruits" value="orange"> Orange</label>
39    <label><input type="checkbox" name="fruits" value="banana"> Banana</label>
40    <label><input type="checkbox" name="fruits" value="grape"> Grape</label>
41  </div>
42</div>
43
44<script>
45// JavaScript to handle the dropdown behavior and collect selected values
46document.addEventListener('click', function(event) {
47  var dropdown = document.querySelector('.dropdown-content');
48  if (!dropdown.contains(event.target)) {
49    dropdown.style.display = 'none';
50  }
51});
52
53function getSelectedFruits() {
54  var checkboxes = document.querySelectorAll('.dropdown-content input[type="checkbox"]');
55  var selectedFruits = [];
56  checkboxes.forEach(function(checkbox) {
57    if (checkbox.checked) {
58      selectedFruits.push(checkbox.value);
59    }
60  });
61  return selectedFruits;
62}
63
64// Example usage
65document.querySelector('.dropdown button').addEventListener('click', function() {
66  console.log(getSelectedFruits());
67});
68</script>
69
70</body>
71</html>

​

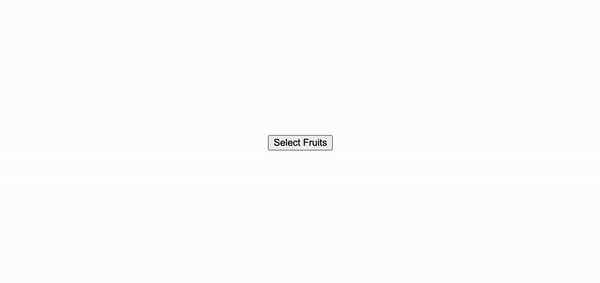

In this code snippet, we create a custom dropdown menu that displays checkboxes when the user clicks on the "Select Fruits" button. The CSS styles .dropdown and .dropdown-content control the appearance and positioning of the dropdown. The JavaScript code adds interactivity, such as closing the dropdown when clicking outside of it and retrieving the selected values when the user clicks the button.

Enhance User Experience With Multi-Select Dropdowns

Mastering the multi-select dropdown in HTML unlocks new possibilities for creating dynamic, user-centered interfaces. This versatile form control not only improves usability but also enriches user experience by enabling seamless multi-option selection. By implementing best practices—such as clear labeling, intuitive styling, and accessibility considerations—you can craft a multi-select dropdown that’s both robust and engaging.

Applying these techniques for forms, surveys, or applications ensures a user-friendly interaction that keeps your audience engaged and satisfied. Now, go ahead and add this interactive feature to enhance your web projects!
