When you interact with a webpage, you often fill out forms—those digital documents that collect your data and send it off to a server. Among the various HTML elements that make up these forms, one of the most versatile is the HTML checkbox. This small but mighty form element allows users to select one or several options from a limited number, making it a staple in online forms, quizzes, and anywhere you need to offer multiple choices.
A checkbox is a square box that can be toggled between a checked and unchecked state. In HTML, creating a checkbox is done using the input type checkbox. When a user clicks a checkbox, they are essentially adding or removing a value to the data submitted during form submission. This is where the value attribute comes into play, as it defines the data that will be sent when the checkbox is checked.
<input> ElementIn HTML, the <input> element is used to create interactive controls for web-based forms to collect data from the user. It's a versatile element that can be configured to accept a variety of data types, including text, numbers, dates, and more. Each <input> element uses a type attribute to specify the kind of data it is meant to receive. This is where we define whether the input is a text field, a password field, or in our case, a checkbox.
The type attribute of an <input> element can be set to "checkbox" to create a checkbox. When you set the type attribute to "checkbox", you're telling the browser to render a small square box that users can click to make a selection. Each checkbox on a form can be independent, allowing users to select multiple checkboxes, or they can be grouped by giving them the same name attribute, which is useful for submitting an array of values.
Example of a Simple Checkbox
Creating a simple checkbox is straightforward. You need to use the <input> element with the type attribute set to "checkbox". Here's an example of how to create a checkbox that a user can tick to agree to terms and conditions:
1<form> 2 <input type="checkbox" id="agreeTerms" name="terms"> 3 <label for="agreeTerms">I agree to the terms and conditions</label> 4</form>
In this example, the <label> element is associated with the checkbox through the use of the id attribute on the <input> and the for attribute on the <label>. This association enhances the user experience by making the entire label clickable, not just the checkbox. It also improves accessibility for screen readers, which use the label to provide an accessible name for the checkbox.
The name attribute in an HTML checkbox is essential for identifying the form data after it's submitted. When a form with checkboxes is submitted, the server receives the value attribute of each checked checkbox along with its name. If you have multiple checkboxes with the same name, the server gets an array of values, allowing users to submit multiple selections under a single category.
1<input type="checkbox" name="interests" value="sports"> 2<label for="interests">Sports</label> 3<input type="checkbox" name="interests" value="music"> 4<label for="interests">Music</label>
The value attribute specifies the actual data that will be sent to the server when a checkbox is checked. Each checkbox has its own value attribute, which should be unique within the same name group to ensure that each option can be identified distinctly upon form submission.
1<input type="checkbox" name="color" value="red"> 2<label for="colorRed">Red</label> 3<input type="checkbox" name="color" value="blue"> 4<label for="colorBlue">Blue</label>
The checked attribute is a boolean attribute that indicates whether a checkbox is checked by default when the page loads. This can be useful for setting a recommended option or acknowledging pre-agreed terms.
1<input type="checkbox" name="subscribe" value="newsletter" checked> 2<label for="subscribe">Subscribe to newsletter</label>

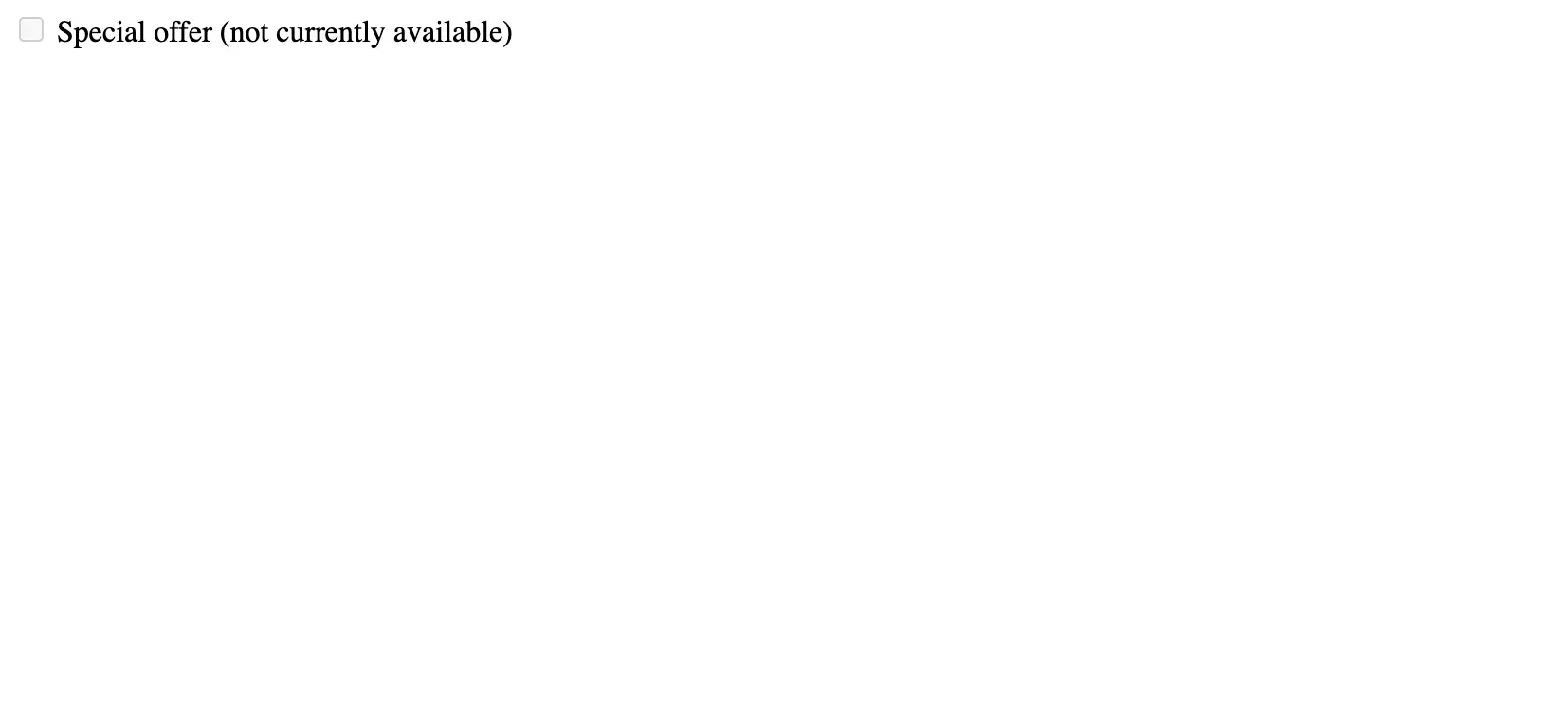

Another boolean attribute, disabled, can be added to an HTML checkbox to make it non-interactive. When a checkbox is disabled, it cannot be clicked or focused, and its value will not be submitted with the form.
1<input type="checkbox" name="offer" value="discount" disabled> 2<label for="offer">Special offer (not currently available)</label>
<label>The id attribute is used to uniquely identify an HTML element on a page. When used with checkboxes, the id attribute helps to establish a relationship between the checkbox and its label. By matching the id of the checkbox with the for attribute of the label, users can click on the label text to toggle the checkbox, enhancing usability and accessibility.
1<input type="checkbox" id="termsAgree" name="terms" value="agree"> 2<label for="termsAgree">I agree to the terms and conditions</label>
The required attribute is used to make a checkbox mandatory before the form can be submitted. If a checkbox with the required attribute is not checked, the form will alert the user and prevent submission until the checkbox is checked.
1<input type="checkbox" id="privacyPolicy" name="policy" value="agree" required> 2<label for="privacyPolicy">I agree to the privacy policy</label>
These attributes are key to controlling the behavior and data handling of checkboxes in HTML forms.
Checkboxes, by default, have a native look and feel that varies slightly from one browser to another. These default styles are designed to be immediately recognizable to users as checkboxes, featuring a small square box that can contain a checkmark. However, the exact appearance of the box, the checkmark, and other states like hover or focus can differ, which sometimes leads to inconsistencies in cross-browser designs.

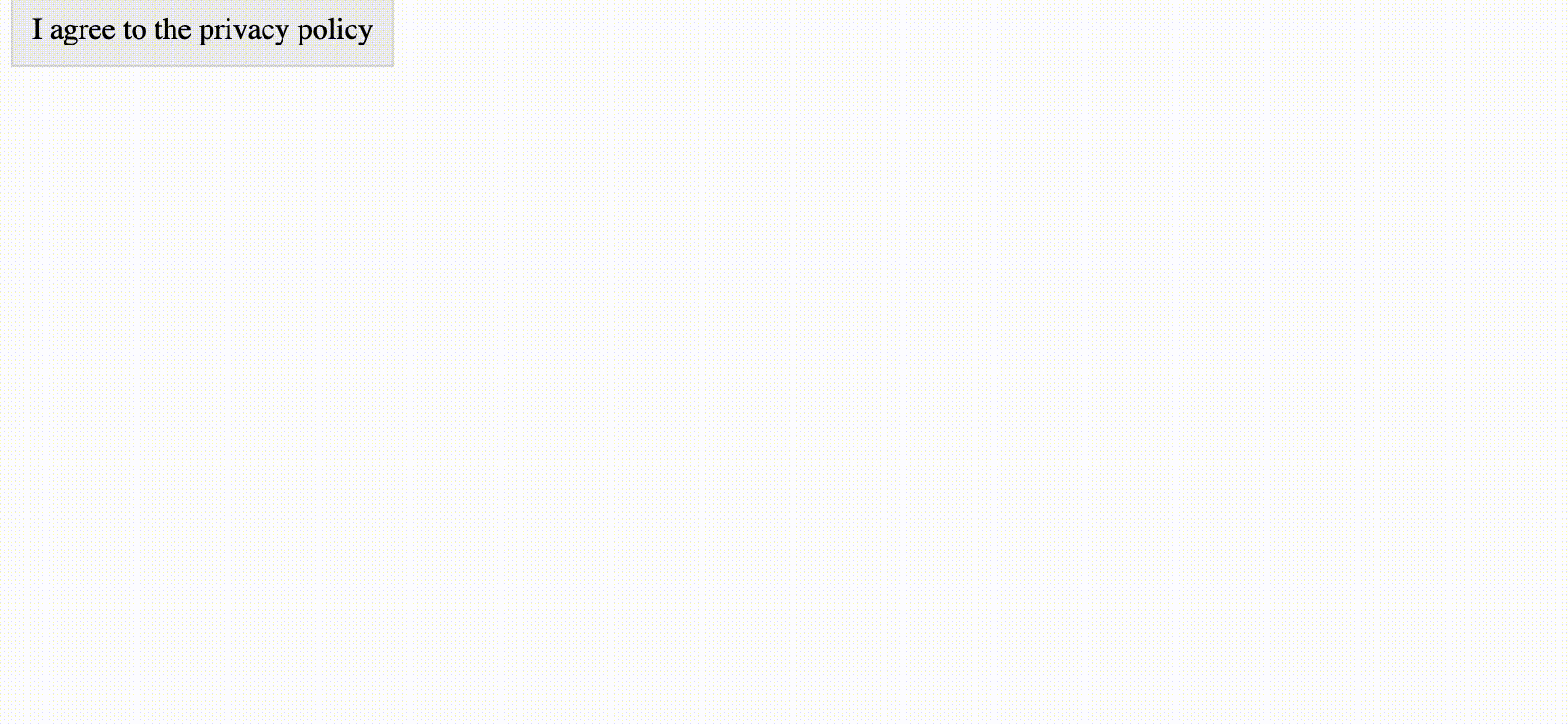

To create a more consistent and branded experience across all browsers, you can customize the appearance of checkboxes using CSS. This involves styling the input element of type checkbox and often the associated label element to achieve the desired look.
1/* Basic custom checkbox style */ 2input[type="checkbox"] { 3 /* Hide the default checkbox */ 4 display: none; 5} 6 7input[type="checkbox"] + label { 8 /* Styling for custom checkbox appearance */ 9 background: #eee; 10 padding: 10px; 11 border: 1px solid #ddd; 12} 13 14/* Style for when the custom checkbox is checked */ 15input[type="checkbox"]:checked + label { 16 background: #228B22; 17}
For more advanced customizations, CSS pseudo-elements ::before and ::after can be used in combination with the label element to create entirely new checkbox designs. These pseudo-elements can be styled to create custom graphics for both the box and the checkmark, providing full control over the checkbox's appearance.
1/* Custom checkbox with pseudo-elements */ 2input[type="checkbox"] + label::before { 3 content: ''; 4 display: inline-block; 5 margin-right: 10px; 6 width: 20px; 7 height: 20px; 8 background: white; 9 border: 1px solid #ddd; 10} 11 12input[type="checkbox"]:checked + label::after { 13 content: '✔'; 14 position: absolute; 15 left: 4px; 16 top: 0; 17}
When styling checkboxes, it's crucial to maintain accessibility. This means ensuring that the checkboxes are still easy to interact with and that their state (checked or unchecked) is clearly communicated to all users, including those using assistive technologies like screen readers.
Use high-contrast colors for the checkbox and the checkmark to make them easily distinguishable.
Ensure that the clickable area is large enough to be easily clicked or tapped.
Maintain the association between the checkbox and its label to provide an accessible name and to allow users to click the label to toggle the checkbox.
Use ARIA (Accessible Rich Internet Applications) attributes if necessary to enhance the semantic information of custom-styled checkboxes.
Checkbox groups are a way to link related checkboxes together. When you have a set of options that are not mutually exclusive—meaning the user can select more than one option—you would group these checkboxes. This grouping informs the user that they can select multiple items within the same category. It also helps with organizing the data on the client side and when it is sent to the server during form submission.

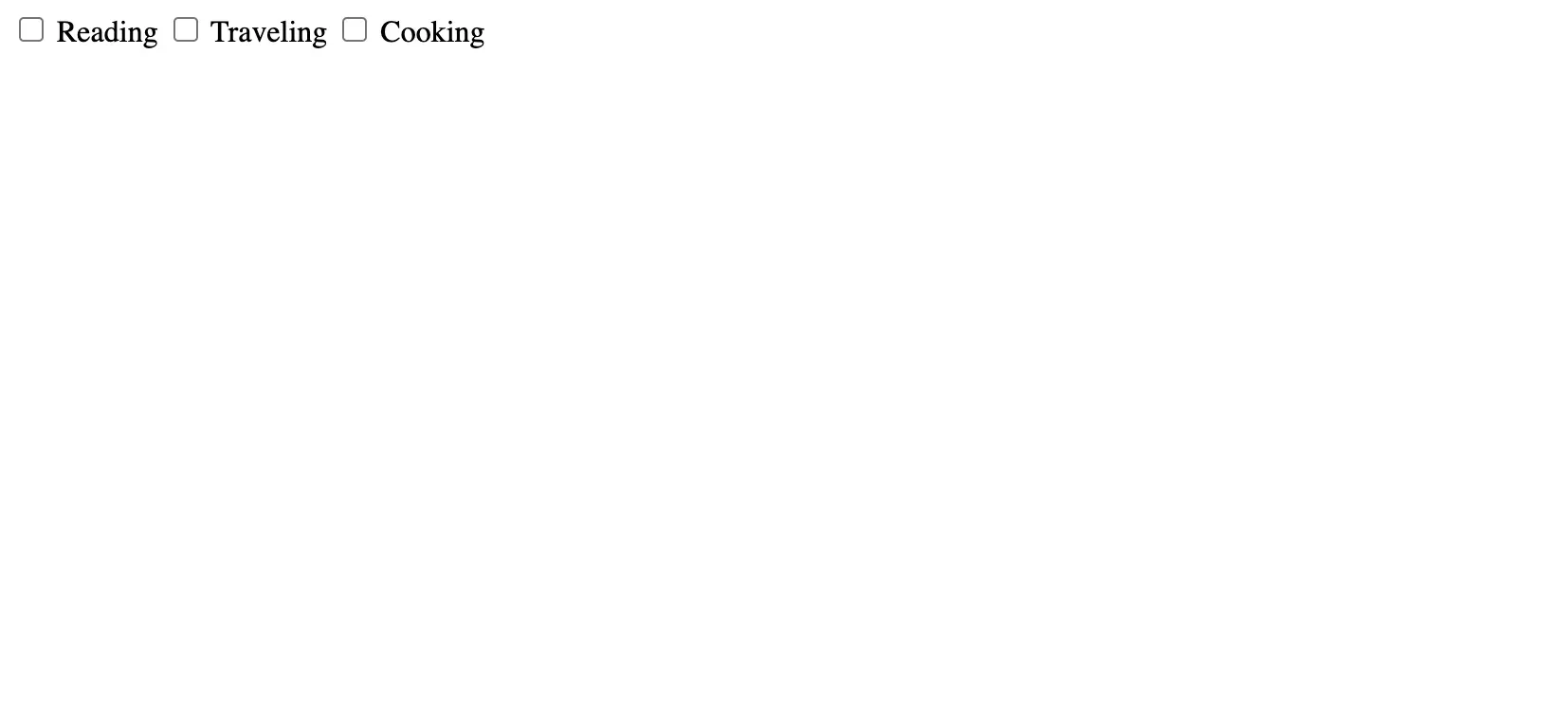

The name attribute is the key to grouping checkboxes. When multiple checkboxes share the same name, they are considered part of a single group. The value attribute of each checkbox in the group should be unique so that the server can distinguish between the selected options.
1<form> 2 <input type="checkbox" name="hobbies" value="reading" id="hobbyReading"> 3 <label for="hobbyReading">Reading</label> 4 <input type="checkbox" name="hobbies" value="traveling" id="hobbyTraveling"> 5 <label for="hobbyTraveling">Traveling</label> 6 <input type="checkbox" name="hobbies" value="cooking" id="hobbyCooking"> 7 <label for="hobbyCooking">Cooking</label> 8 <!-- More checkboxes can be added here --> 9</form>
In this example, all checkboxes share the same name attribute ("hobbies"), which groups them together. Users can select as many hobbies as they like, and the form will package the selected values into an array when it is submitted.
When the form is submitted, the server receives the value attributes of only the checked checkboxes within the group. If none of the checkboxes are checked, nothing from the group is sent. On the server side, the data is typically processed as an array or a list of values associated with the shared name attribute.
For example, if a user selects "Reading" and "Traveling", the server might receive the data in the following format:
1hobbies=reading&hobbies=traveling

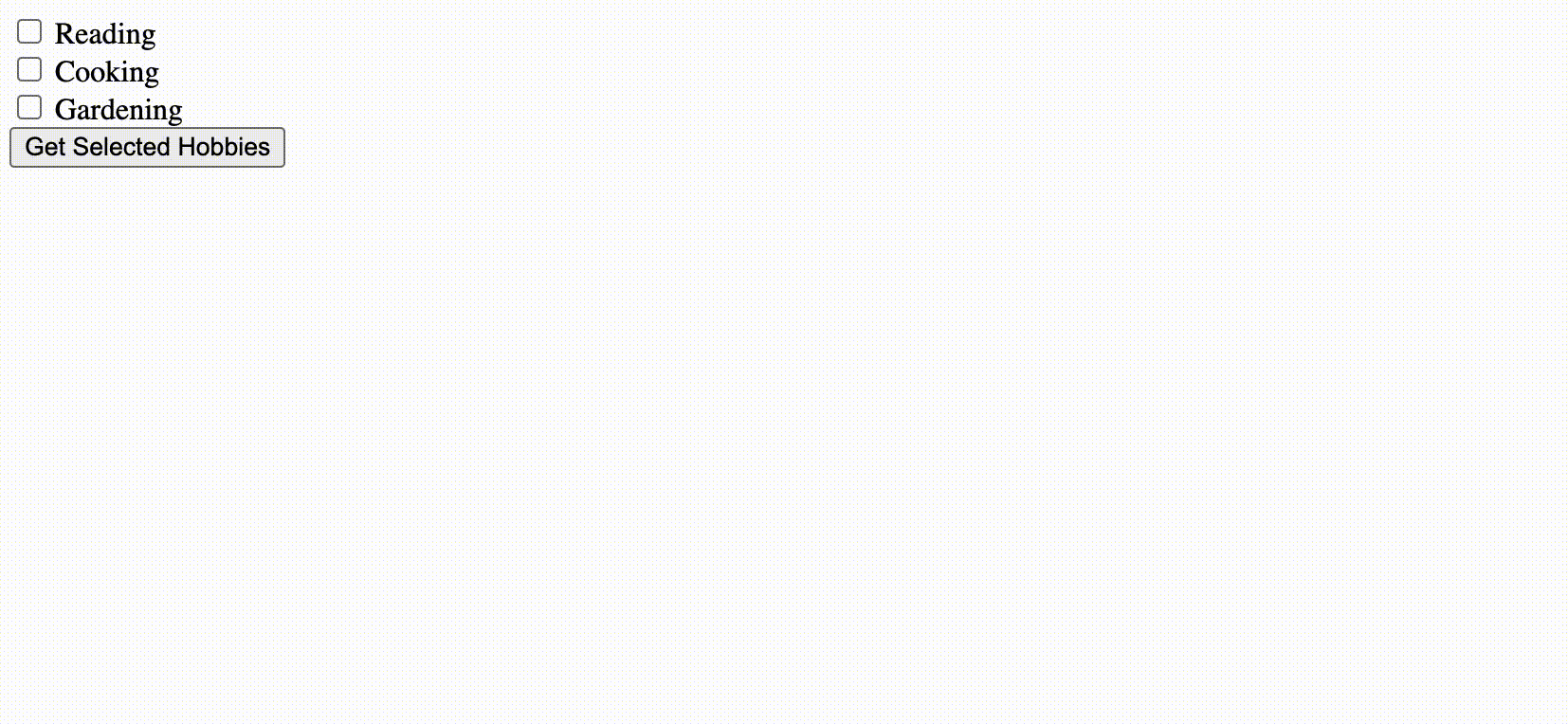

On the client side, you can use JavaScript to retrieve and manipulate the values of a checkbox group. Here's a simple JavaScript function that would alert the user with the values of the checked checkboxes in the "hobbies" group:
1function getSelectedHobbies() { 2 const checkboxes = document.querySelectorAll('input[name="hobbies"]:checked'); 3 let values = []; 4 checkboxes.forEach((checkbox) => { 5 values.push(checkbox.value); 6 }); 7 alert('Selected hobbies: ' + values.join(', ')); 8}
This JavaScript function can be called on form submission or a button click to provide immediate feedback or to process the selected values on the client side before they are sent to the server.

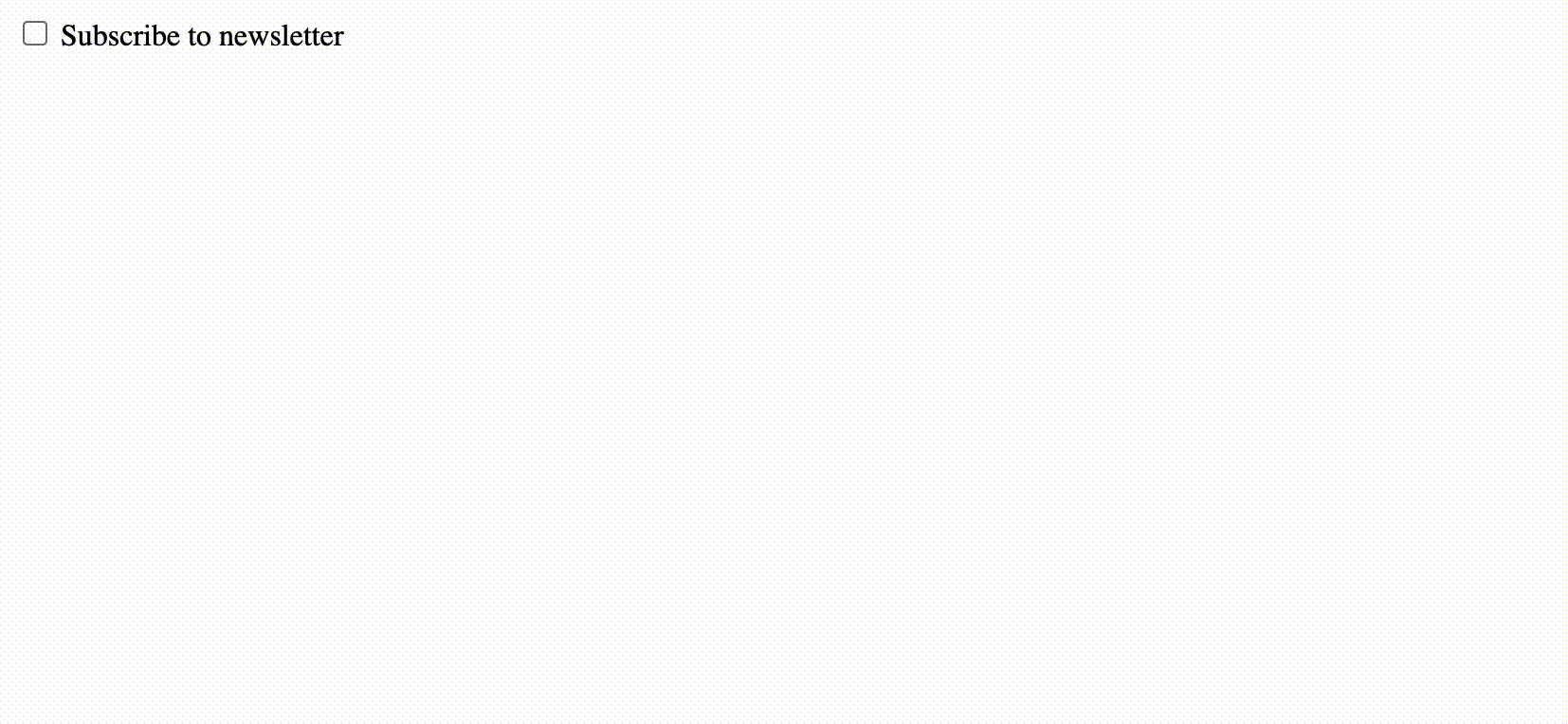

The onclick event in JavaScript is triggered when the user clicks on an element. For checkboxes, this event can be used to run a JavaScript function whenever the checkbox is clicked, regardless of whether it's being checked or unchecked.
1<input type="checkbox" id="newsletter" name="newsletter" onclick="showNewsletterPreference()"> 2<label for="newsletter">Subscribe to newsletter</label> 3 4<script> 5function showNewsletterPreference() { 6 const newsletterCheckbox = document.getElementById('newsletter'); 7 if (newsletterCheckbox.checked) { 8 alert('Thank you for subscribing!'); 9 } else { 10 alert('You have unsubscribed.'); 11 } 12} 13</script>
The change event is fired for <input> elements when a change to the element's value is committed by the user. Unlike the onclick event, which fires every time the checkbox is clicked, the change event only fires when the state of the checkbox (checked or unchecked) actually changes. This is particularly useful for updating other parts of the UI or handling form data based on the checkbox's state.
1<input type="checkbox" id="terms" name="terms" onchange="toggleSubmitButton()"> 2<label for="terms">I agree to the terms and conditions</label> 3 4<script> 5function toggleSubmitButton() { 6 const termsCheckbox = document.getElementById('terms'); 7 const submitButton = document.getElementById('submit'); 8 submitButton.disabled = !termsCheckbox.checked; 9} 10</script>
JavaScript provides several methods to interact with checkboxes. You can access the checked property to determine if a checkbox is checked, the disabled property to enable or disable it, and the value property to get or set the value of the checkbox.
1// Accessing a checkbox element 2const myCheckbox = document.getElementById('myCheckbox'); 3 4// Checking if the checkbox is checked 5if (myCheckbox.checked) { 6 // Checkbox is checked 7} 8 9// Disabling the checkbox 10myCheckbox.disabled = true; 11 12// Enabling the checkbox 13myCheckbox.disabled = false; 14 15// Setting the checkbox value 16myCheckbox.value = 'newValue'; 17 18// Getting the checkbox value 19const checkboxValue = myCheckbox.value;
Examples of Event Handling for Checkboxes
Event handlers can be used to create interactive and responsive interfaces that react to user actions. Here are some examples of how you can handle checkbox events to provide instant feedback or to modify other elements on the page.
1<!-- Checkbox for accepting terms --> 2<input type="checkbox" id="acceptTerms" name="terms" onchange="enableSubmit(this)"> 3<label for="acceptTerms">Accept Terms & Conditions</label> 4 5<!-- Submit button initially disabled --> 6<button id="submitButton" disabled>Submit</button> 7 8<script> 9// Function to enable the submit button when the terms are accepted 10function enableSubmit(checkbox) { 11 const submitButton = document.getElementById('submitButton'); 12 submitButton.disabled = !checkbox.checked; 13} 14</script>
In this example, the submit button is initially disabled. When the user checks the "Accept Terms & Conditions" checkbox, the enableSubmit function is called, and the submit button is enabled. If the user unchecks the checkbox, the button is disabled again.
Checkboxes are a fundamental component in the world of HTML forms, offering users a simple and effective way to make selections and provide feedback. We've explored the various attributes that define a checkbox's behavior, such as the name, value, and checked attributes, and how they contribute to grouping checkboxes and managing form submissions.
Furthermore, we've examined how to handle events like onclick and change to make our checkboxes interactive, allowing us to run JavaScript functions that enhance the user experience by providing immediate feedback and dynamic content based on user actions.
With this knowledge, you can provide a seamless experience for your users. Remember to always test for accessibility and cross-browser compatibility to make sure that everyone can interact with your checkboxes as intended.
