How to build Customizable Pop-Ups with Flutter Dialog

In mobile app development, engaging users through clear communication is vital. With its rich set of widgets, Flutter provides developers with various options to present information and interact with users. Among these options, the dialog widget is a versatile tool for capturing user attention and facilitating interaction.

Understanding the Dialog Widget in Flutter

Dialogs in Flutter are ephemeral panels that can convey information to the user or prompt them for a response. A dialog in Flutter is usually an overlay on top of the app content. It can be dismissed by tapping outside the dialog popup, pressing a button, or completing an action within the dialog box.

The dialog widget is a fundamental part of the Flutter framework, designed to be customizable and adaptable to various use cases. It is important to note that the dialog widget is a simple dialog in its essence and does not impose any specific content structure. This allows developers to create a custom dialog including various elements such as text, images, inputs, and action buttons.

When constructing dialogs, developers must manage the widget's location within the app's widget tree. This ensures that the dialog appears in the correct context on the screen. The BuildContext plays a crucial role in this process, as it is the handle for the location of a widget in the tree structure of the Flutter app.

Creating Your First Basic Dialog

To create a basic dialog in Flutter, you can use the AlertDialog or SimpleDialog widgets, which provide a predefined structure that adheres to Material Design principles. These widgets simplify creating dialogs that look and feel native to the platform.

Here is a code sample that demonstrates how to create a simple AlertDialog:

Copy
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
showDialog(
  context: context,
  builder: (BuildContext context) {
    return AlertDialog(
      title: Text('Alert Title'),
      content: SingleChildScrollView(
        child: ListBody(
          children: <Widget>[
            Text('This is a demo alert dialog.'),
            Text('Would you like to approve of this message?'),
          ],
        ),
      ),
      actions: <Widget>[
        TextButton(
          child: Text('Approve'),
          onPressed: () {
            Navigator.of(context).pop();
          },
        ),
      ],
    );
  },
);

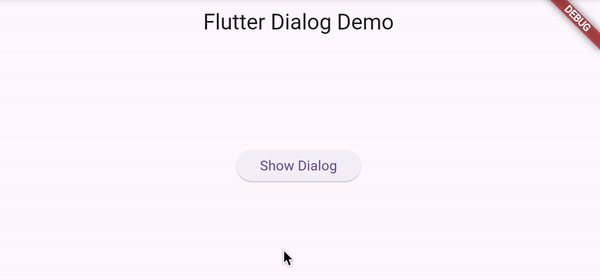

In this code sample, the showDialog function displays the dialog widget on the screen. The AlertDialog widget is passed as a child to the builder function, which takes the current BuildContext as a parameter. The AlertDialog consists of a title, a content section that can hold a variety of widgets and a set of action buttons that the user can interact with.

Crafting Custom Dialogs in Flutter

Flutter's dialog widget provides a canvas for developers to craft a user experience that is both intuitive and visually appealing. When the basic dialog does not suffice, custom dialogs come into play, allowing for a more tailored interaction that can better align with the app's design and the user's expectations.

Designing a Custom Dialog Box

Creating a custom dialog box in Flutter involves more than just displaying information; it's about crafting an experience. The dialog widget is the foundation upon which you can build a dialog box that fits seamlessly within your app's design language.

To design a custom dialog box, you can start by defining its shape, style, and behavior. The shape property allows you to alter the dialog's border, creating dialogs with rounded corners or even completely custom shapes. The dialog style can be further customized using properties like backgroundColor and elevation, which control the dialog's color and the shadow cast by it, respectively.

Here's an example of how to create a custom dialog with a unique shape and style:

Copy
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
showDialog(
  context: context,
  builder: (BuildContext context) {
    return Dialog(
      shape: RoundedRectangleBorder(
        borderRadius: BorderRadius.circular(20.0),
      ),
      elevation: 5.0,
      backgroundColor: Colors.white,
      child: Container(
        padding: EdgeInsets.all(20.0),
        child: Text('This is a custom dialog box.'),
      ),
    );
  },
);

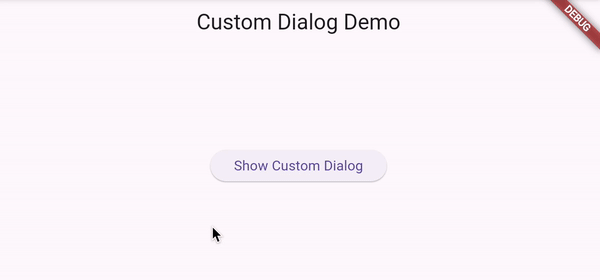

In this code sample, the Dialog widget is used with a RoundedRectangleBorder to achieve rounded corners. The elevation property gives the dialog box a subtle shadow, and the backgroundColor is set to white. The child of the dialog is a Container with padding, which contains the text to be displayed.

Implementing AlertDialog Widget with Custom Style

While the AlertDialog widget provides a quick way to present alerts to the user, it also offers the flexibility to be customized. By using the AlertDialog widget's properties, you can create a dialog popup that not only alerts the user but also matches the style of your app.

Customizing the AlertDialog widget can involve setting the modal barrier color to dim the background when the dialog is displayed, adjusting the z coordinate to elevate the dialog above other widgets on the screen, and even using an optional title or optional content to make the dialog more informative.

For instance, you can implement an AlertDialog with a custom style like this:

Copy
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
AlertDialog(
  title: Text('Custom Styled Alert'),
  content: Text('This AlertDialog has been styled to match our app.'),
  backgroundColor: const Color(0xFFEFEFEF),
  shape: RoundedRectangleBorder(
    side: BorderSide(color: Colors.green, width: 2),
    borderRadius: BorderRadius.circular(10),
  ),
  actions: <Widget>[
    TextButton(
      child: Text('Dismiss'),
      onPressed: () {
        Navigator.of(context).pop();
      },
    ),
  ],
);

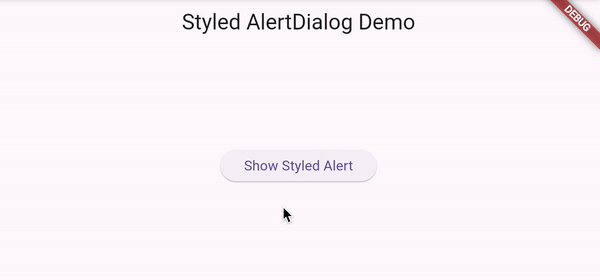

In this AlertDialog, the title and content are set as usual, but the backgroundColor is customized, and the shape is given a green border with rounded corners. The actions provide a button for the user to dismiss the dialog.

Adding Action Buttons and Padding to Your Dialog

Action buttons are a critical component of dialogs, allowing the user to interact with the dialog and make choices. Flutter's dialog widgets can include a variety of action buttons, such as flat, raised, or text, to name a few.

Padding is another important aspect of dialog design. It ensures that the dialog's content is not cramped and that there is a comfortable amount of space between its edges and content. The padding property can be set to provide consistent spacing within the dialog.

Here's an example of adding action buttons and padding to a dialog:

Copy
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
AlertDialog(
  title: Text('Action Buttons Example'),
  content: Text('This dialog has custom action buttons and padding.'),
  actionsPadding: EdgeInsets.symmetric(horizontal: 10.0),
  actions: <Widget>[
    TextButton(
      child: Text('Cancel'),
      onPressed: () {
        Navigator.of(context).pop();
      },
    ),
    ElevatedButton(
      child: Text('Proceed'),
      onPressed: () {
        // Handle the proceed action
      },
    ),
  ],
);

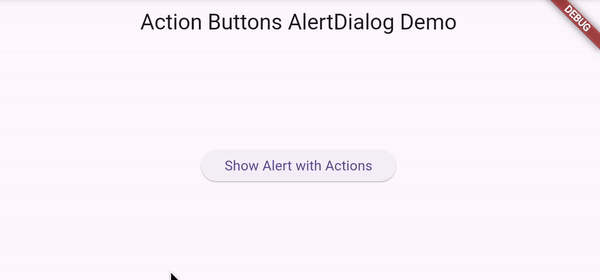

In this AlertDialog, the actionsPadding adds horizontal padding to the action buttons area. Two buttons are provided: a TextButton for canceling and an ElevatedButton for proceeding with an action. This allows the user to make a clear choice and provides a more polished look to the dialog.

Advanced Dialog Features and Management

Flutter's dialog management capabilities extend beyond the simple instantiation of dialogs. Advanced features enable developers to fine-tune how dialogs behave about the screen size, orientation, and other UI elements. These features are essential for creating a responsive and accessible user experience.

Managing Dialog Location and Screen Size Constraints

When presenting dialogs to the user, it's important to consider their location on the screen and how they adapt to various screen sizes. A dialog should be comfortably viewable regardless of the device's orientation or screen dimensions. Flutter provides several properties to manage this widget's location and ensure it fits the screen's constraints.

The alignment property of the Dialog widget allows you to control where the dialog appears on the screen. By default, dialogs are centered, but you can align them to the screen's top, bottom, or sides, depending on your design requirements.

Additionally, the insetPadding property helps to define the minimum space between the screen's edges and the dialog. This is particularly useful for ensuring the dialog does not appear too close to the system's status bar, navigation bar, or the keyboard when it pops up.

Here's an example of managing dialog location and screen size constraints:

Copy
1
2
3
4
5
6
7
Dialog(
  alignment: Alignment.bottomCenter,
  insetPadding: EdgeInsets.all(10.0),
  child: Container(
    // Container properties and child widgets
  ),
);

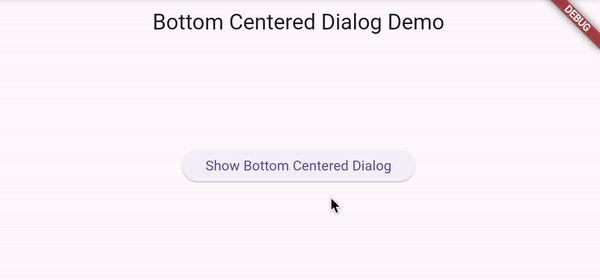

In this Dialog, the alignment is set to Alignment.bottomCenter, which positions the dialog at the bottom center of the screen. The insetPadding is set to 10.0 on all sides, ensuring space between the dialog and the screen edges.

You can use MediaQuery to retrieve the current screen size and adjust the dialog dimensions accordingly for dialogs that need to adapt to different screen sizes. This ensures that the dialog looks good on both small and large screens.

Copy
1
2
3
4
5
6
7
8
9
10
11
12
13
showDialog(
  context: context,
  builder: (BuildContext context) {
    var screenSize = MediaQuery.of(context).size;
    return Dialog(
      child: Container(
        width: screenSize.width * 0.8, // 80% of screen width
        height: screenSize.height * 0.5, // 50% of screen height
        // Container properties and child widgets
      ),
    );
  },
);

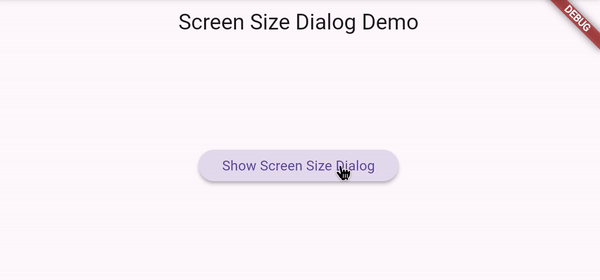

In this code sample, the dialog's width and height are set as a percentage of the screen's width and height, ensuring that the dialog scales appropriately with the screen size.

Building an IOS Style Dialog

When aiming to design an iOS-style dialog using Flutter's generic Dialog class, developers must pay close attention to the nuances of iOS design language. Although Flutter provides a Cupertino library specifically for iOS-style widgets, it is possible to customize the generic Dialog class to achieve a similar look and feel.

To create an iOS-style dialog, you would typically focus on the dialog's shape, style, title, message, and action buttons. iOS dialogs are known for their rounded corners, minimalistic design, and clear action buttons.

Here's an example of how to use the Dialog class to create a dialog with an iOS-like appearance:

Copy
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
showDialog(
  context: context,
  builder: (BuildContext context) {
    return Dialog(
      shape: RoundedRectangleBorder(
        borderRadius: BorderRadius.circular(20.0),
      ),
      child: Padding(
        padding: const EdgeInsets.all(16.0),
        child: Column(
          mainAxisSize: MainAxisSize.min,
          children: <Widget>[
            Text(
              'iOS Style Title',
              style: TextStyle(fontSize: 18.0, fontWeight: FontWeight.bold),
            ),
            SizedBox(height: 16.0),
            Text(
              'This is an iOS style dialog message.',
              style: TextStyle(fontSize: 16.0),
            ),
            SizedBox(height: 24.0),
            Row(
              mainAxisAlignment: MainAxisAlignment.end,
              children: <Widget>[
                TextButton(
                  child: Text('Cancel'),
                  onPressed: () {
                    Navigator.of(context).pop(false);
                  },
                ),
                TextButton(
                  child: Text('Accept'),
                  onPressed: () {
                    Navigator.of(context).pop(true);
                  },
                ),
              ],
            ),
          ],
        ),
      ),
    );
  },
);

In this example, the Dialog widget is customized to have rounded corners by setting the shape property with a RoundedRectangleBorder. The Padding widget provides space inside the dialog, and the Column widget organizes the title, message, and action buttons vertically. The action buttons are aligned to the end of the row, following the iOS convention of placing action buttons in a row at the bottom of the dialog.

The text styles for the title and message are chosen to resemble iOS's typography, and the spacing between elements is carefully adjusted to match the iOS dialog's airy layout.

By customizing the Dialog class, developers can create a dialog that closely resembles the iOS style, providing a familiar user experience for those accustomed to the iOS platform.

Conclusion

In conclusion, Flutter's dialog widget offers a powerful and flexible way to present information and interact with users. Whether you're aiming for the simplicity of a basic dialog, the tailored experience of a custom dialog, or the familiarity of an iOS-style dialog, Flutter provides the tools necessary to create these user interfaces easily.

By understanding the properties and capabilities of the Dialog class, developers can craft dialogs that meet the functional requirements of their apps and enhance the overall user experience with responsive and aesthetically pleasing designs. With these principles in mind, you can create intuitive dialogs for users and seamlessly integrated into your Flutter applications.
