Flutter Gradients: Transforming Your App with Color Transitions

Gradients are a powerful tool in a designer's toolkit, enhancing the visual appeal of an app's interface. In Flutter, gradients are a versatile feature that can transform the flat colors of a widget into a vibrant and dynamic display. Using gradients in Flutter apps can significantly improve user experience by creating depth and dimension on the screen.

Flutter supports a variety of gradients, including linear gradients, radial gradients, and sweep gradients. Each gradient type creates a different visual effect and can be used in various contexts to achieve the desired aesthetic. The gradient property within a widget's decoration property is where you define the type and appearance of your gradient.

Setting Up Your Flutter Environment

Before diving into the world of gradients, setting up your Flutter environment is essential. This involves installing Flutter and the Dart language on your system. Once installed, you can create a new Flutter project using the flutter create command in your terminal. This will generate a project directory with all the necessary files to begin coding your app.

1import 'package:flutter/material.dart';
2
3void main() {
4  runApp(MyApp());
5}
6
7class MyApp extends StatelessWidget {
8  @override
9  Widget build(BuildContext context) {
10    return MaterialApp(
11      title: 'Flutter Gradient Demo',
12      theme: ThemeData(
13        primarySwatch: Colors.blue,
14      ),
15      home: GradientExample(),
16    );
17  }
18}
19

In the void main function, we call runApp with an instance of MyApp, which sets up the basic structure of a Flutter app. The MyApp class extends StatelessWidget and returns a MaterialApp widget that serves as the root of your app.

Implementing Linear Gradients in Flutter Apps

Exploring the LinearGradient Widget

A linear gradient creates a color transition along a straight line. In Flutter, the LinearGradient widget is used to define linear gradients. This widget requires an array of colors and alignment directions to determine the gradient's starting and ending points. The begin and end properties control the direction of the gradient, while the colors property defines the transition between the starting color and the ending color.

To apply a linear gradient to a container widget, you can use the decoration property of the Container. The BoxDecoration class has a gradient property where you can set your LinearGradient.

1Container(
2  decoration: BoxDecoration(
3    gradient: LinearGradient(
4      begin: Alignment.topLeft,
5      end: Alignment.bottomRight,
6      colors: [Colors.blue, Colors.green],
7    ),
8  ),
9)
10

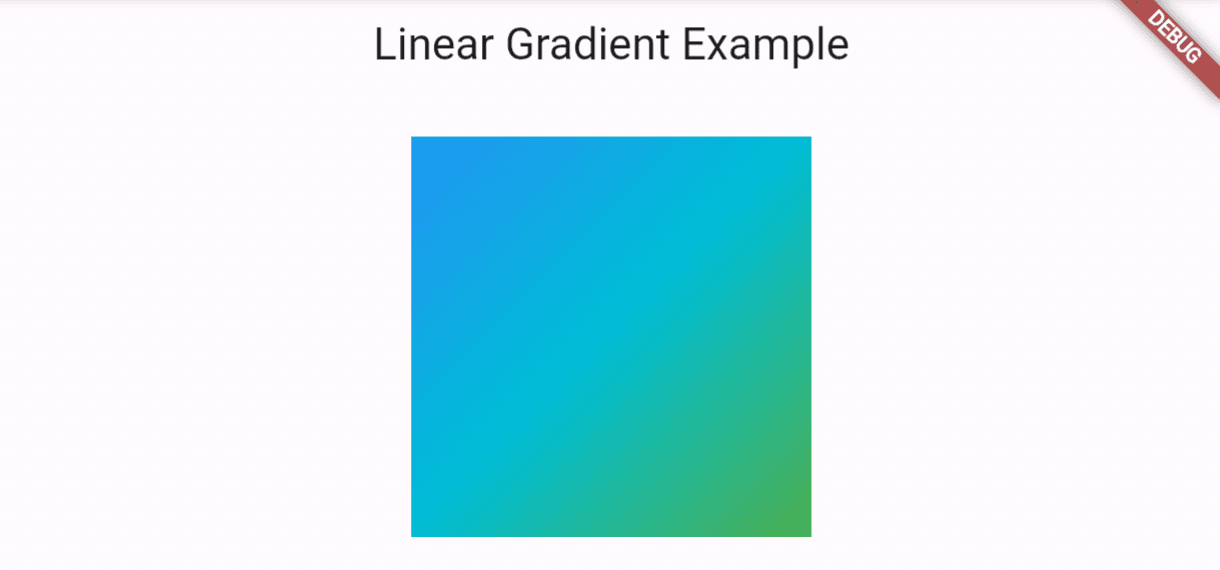

The above code snippet defines the LinearGradient with two colors transitioning from top left (blue) to bottom right (green).

Customizing Linear Gradients

Flutter allows for detailed customization of linear gradients. By adjusting the begin and end properties, you can change the direction of the gradient. Additionally, you can use the stops property to specify where each color transition should occur, using values representing fractions of the vector created by the beginning and end points.

1LinearGradient(
2  begin: Alignment.topLeft,
3  end: Alignment.bottomRight,
4  stops: [0.0, 0.5, 1.0],
5  colors: [
6    Colors.blue,
7    Colors.cyan,
8    Colors.green,
9  ],
10)
11

In this example, the stops property creates a gradient with three colors, where cyan is halfway through the transition from blue to green. This allows for a more complex and controlled color transition within the linear gradient.

Radial and Sweep Gradients: Expanding Your Flutter Toolkit

Radial Gradient: A Deep Dive

Radial gradients in Flutter are created using the RadialGradient class. This type of gradient emanates from a single point, spreading outwards in a circular fashion, much like the ripples from a drop of water. The center property defines the origin point of the radial gradient, while the radius value determines how far the gradient spreads from the center point.

You can use the colors and stops properties to achieve a uniform distribution of colors in a radial gradient, similar to how you would with a linear gradient. The stops property is beneficial for controlling the placement of each color within the gradient, allowing you to create concentric circles of different colors.

1Container(
2  decoration: BoxDecoration(
3    gradient: RadialGradient(
4      center: Alignment.center,
5      radius: 0.5,
6      colors: [Colors.yellow, Colors.blue],
7      stops: [0.4, 1.0],
8    ),
9  ),
10)
11

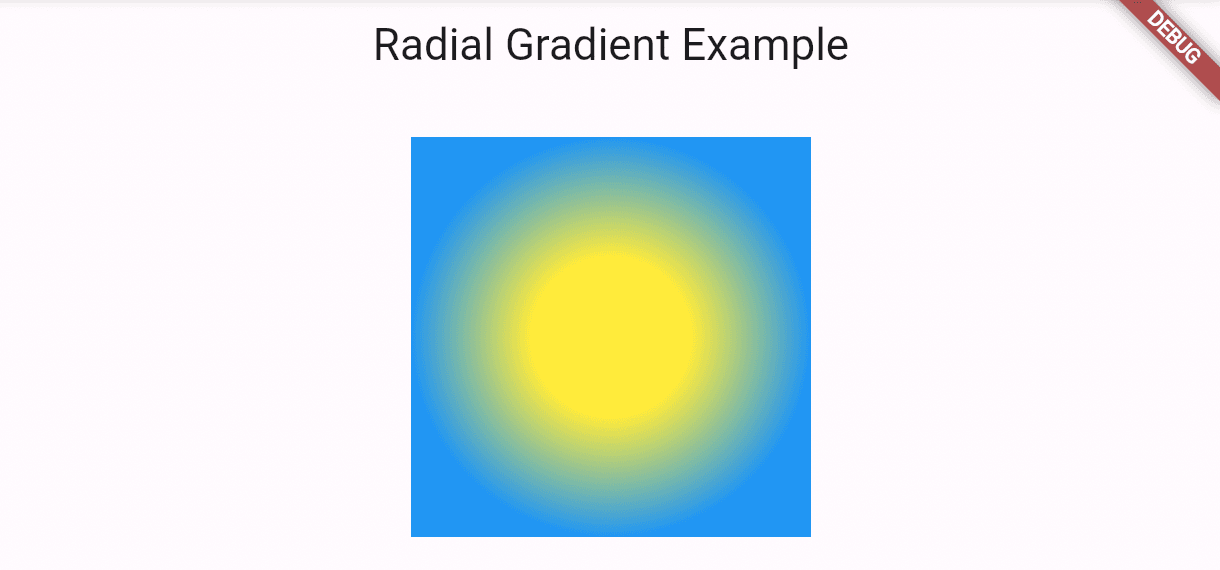

In this code snippet, the RadialGradient is centered in the middle of the container widget, with the yellow color starting at 40% of the radius and transitioning to blue at the edge.

Sweep Gradient: Understanding the Mechanics

Sweep gradients are another exciting option that Flutter provides. A sweep gradient paints a gradient in a sweeping arc around a center point, similar to the hands of a clock moving around its face. The SweepGradient class creates this effect, with the startAngle and endAngle properties controlling the portion of the circle covered by the gradient.

The colors and stops properties are again used to define the color transitions within the sweep gradient. The center property determines the point around which the gradient sweeps.

1Container(
2  decoration: BoxDecoration(
3    gradient: SweepGradient(
4      center: Alignment.center,
5      startAngle: 0.0,
6      endAngle: 3.14,
7      colors: [Colors.pink, Colors.blue],
8      stops: [0.0, 1.0],
9    ),
10  ),
11)
12

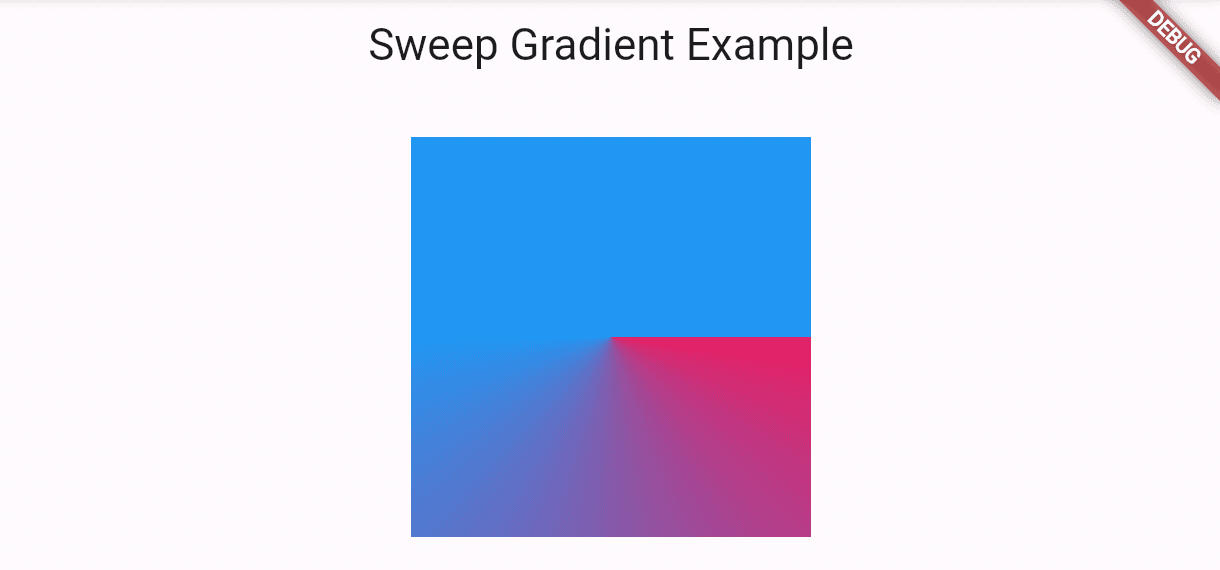

In this example, the SweepGradient starts from 0 radians and covers half the circle, transitioning from pink to blue.

Practical Examples: Gradients in Action

Applying Gradients to Common Flutter Widgets

Gradients can be applied to various widgets within a Flutter app to create a visually appealing interface. One common use case is to enhance the app bar, which is often the first thing users see. Adding a gradient to the app bar can set the tone for the entire app.

1AppBar(
2  title: Text('Gradient AppBar'),
3  flexibleSpace: Container(
4    decoration: BoxDecoration(
5      gradient: LinearGradient(
6        begin: Alignment.topCenter,
7        end: Alignment.bottomCenter,
8        colors: [Colors.blue, Colors.green],
9      ),
10    ),
11  ),
12)
13

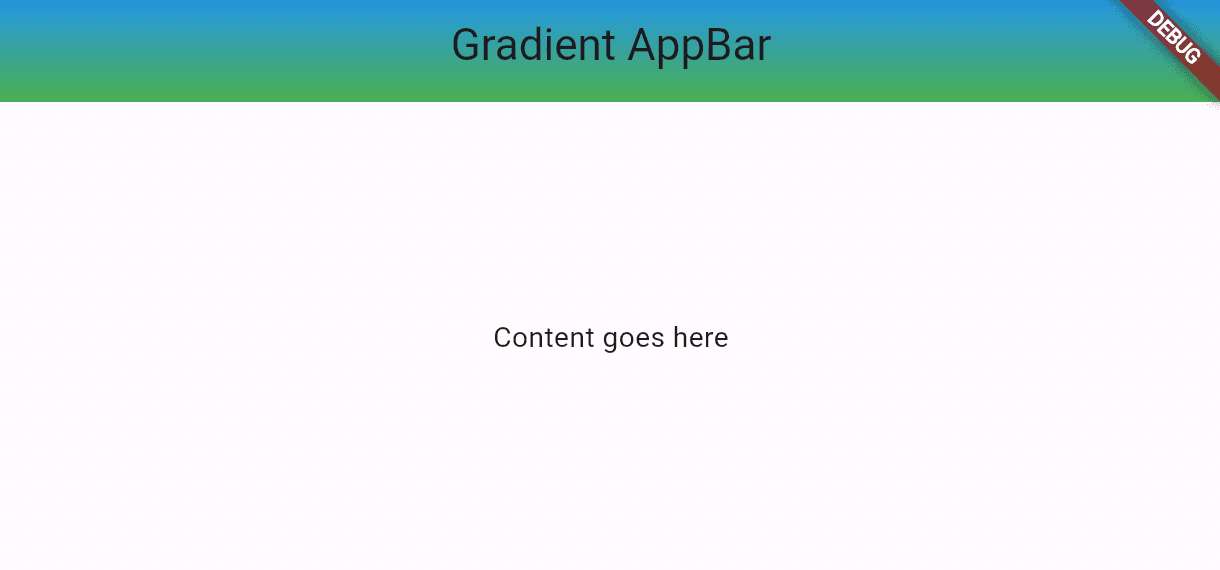

In this code snippet, the AppBar widget has a flexibleSpace property that allows you to add a Container with a BoxDecoration that includes a linear gradient. This creates a smooth transition from blue at the top to green at the bottom of the app bar.

Similarly, you can apply gradients to the body of your app to create a background that stands out. Using a Container as the body of your Scaffold, you can implement a radial or sweep gradient to fill the screen with vibrant colors.

1Scaffold(
2  appBar: AppBar(
3    title: Text('Gradient Background'),
4  ),
5  body: Container(
6    decoration: BoxDecoration(
7      gradient: RadialGradient(
8        center: Alignment.center,
9        radius: 0.8,
10        colors: [Colors.yellow, Colors.deepOrange],
11      ),
12    ),
13  ),
14)
15

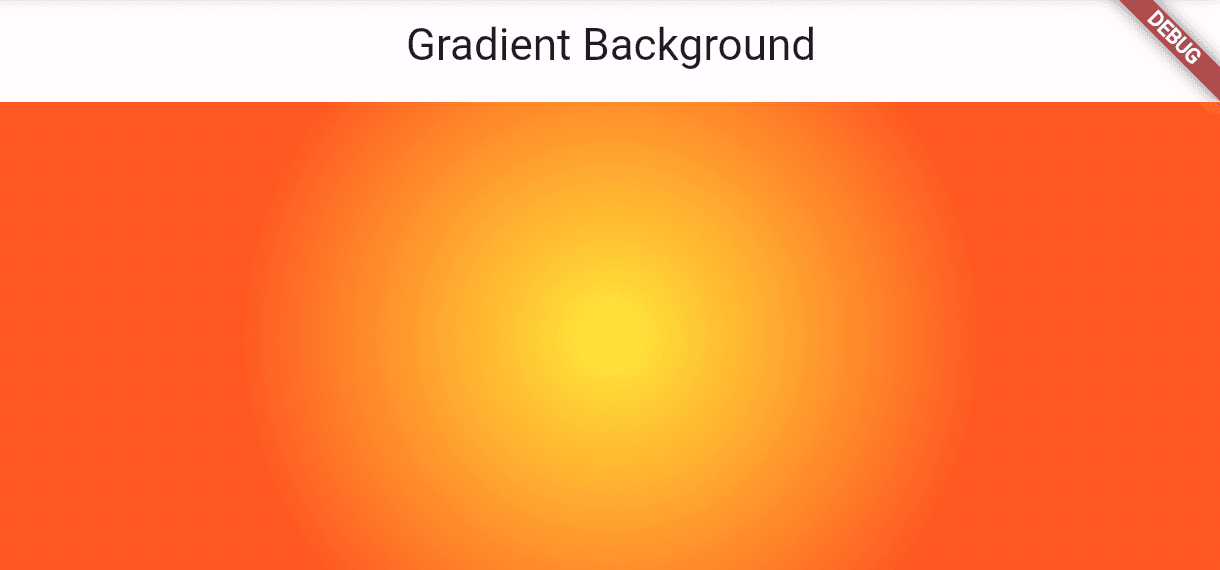

In this example, the app's body displays a radial gradient that transitions from yellow at the center to deep orange at the edges, creating a warm and inviting background for the app's content.

Advanced Gradient Techniques

You can explore more advanced techniques once you are comfortable with basic gradient implementations. For instance, you can transform gradients by applying an offset to the center property of a radial gradient or by adjusting the startAngle and endAngle of a sweep gradient to create unique effects.

You can also layer multiple gradients on top of each other to create complex and intricate designs. Using a Stack widget and multiple Container widgets, each with its gradient, you can achieve a depth of color that a single gradient cannot provide.

1Stack(
2  children: <Widget>[
3    Container(
4      decoration: BoxDecoration(
5        gradient: LinearGradient(
6          begin: Alignment.topLeft,
7          end: Alignment.bottomRight,
8          colors: [Colors.purple, Colors.red],
9        ),
10      ),
11    ),
12    Container(
13      decoration: BoxDecoration(
14        gradient: RadialGradient(
15          center: Alignment.center,
16          radius: 0.5,
17          colors: [Colors.transparent, Colors.black45],
18        ),
19      ),
20    ),
21  ],
22)
23

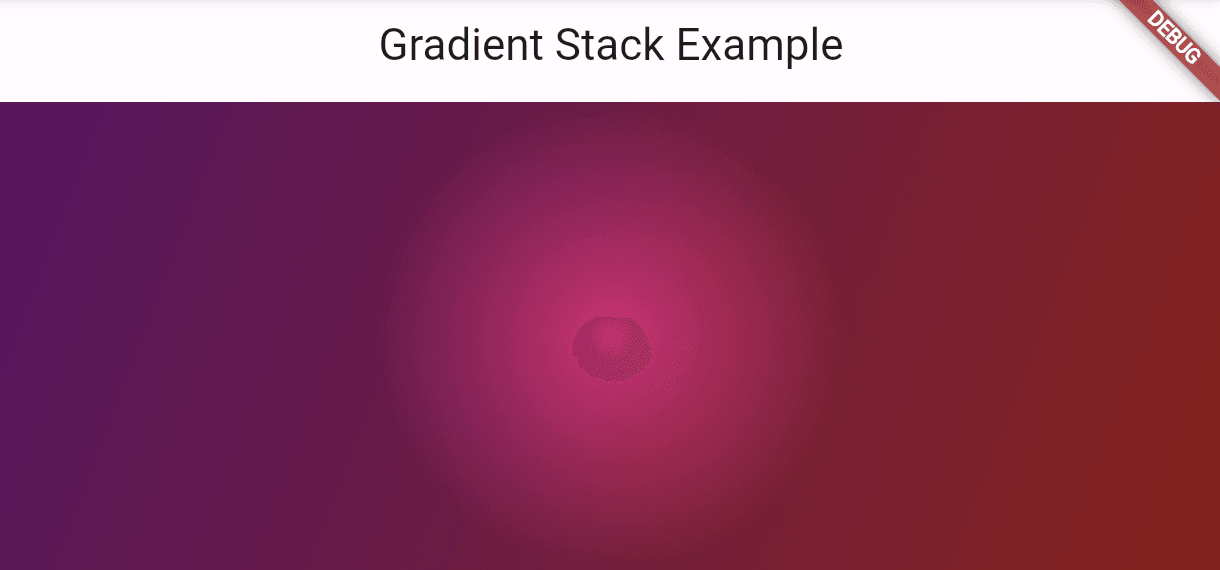

In this code snippet, a linear gradient is the base layer, while a radial gradient with transparency is layered on top, creating a vignette effect.

Conclusion

In conclusion, mastering gradients in Flutter can significantly enhance the visual impact of your apps. We've covered how to implement linear, radial, and sweep gradients, and apply them to common widgets. You can create a rich, engaging user interface by customizing gradients and experimenting with advanced techniques. Embrace the power of gradients to make your Flutter projects stand out with depth, dimension, and a splash of color.
