Flex Direction Row Not Working? Tips to Get Your Layout Back on Track

Flexbox is a powerful layout tool that gives you control over your page elements' alignment, spacing, and direction. At the heart of Flexbox is the concept of a flex container and flex items, which work together to create responsive layouts that adapt to the size of your screen or application window.

What is a Flex Container?

To start using Flexbox, you first need to designate a container as a flex container. This is done by setting the display property to flex. Once you've done this, all direct children of that container become flex items.

1const FlexContainer = () => {
2  return (
3    <div style={{ display: 'flex' }}>
4      <div>Item 1</div>
5      <div>Item 2</div>
6      <div>Item 3</div>
7    </div>
8  );
9};

​

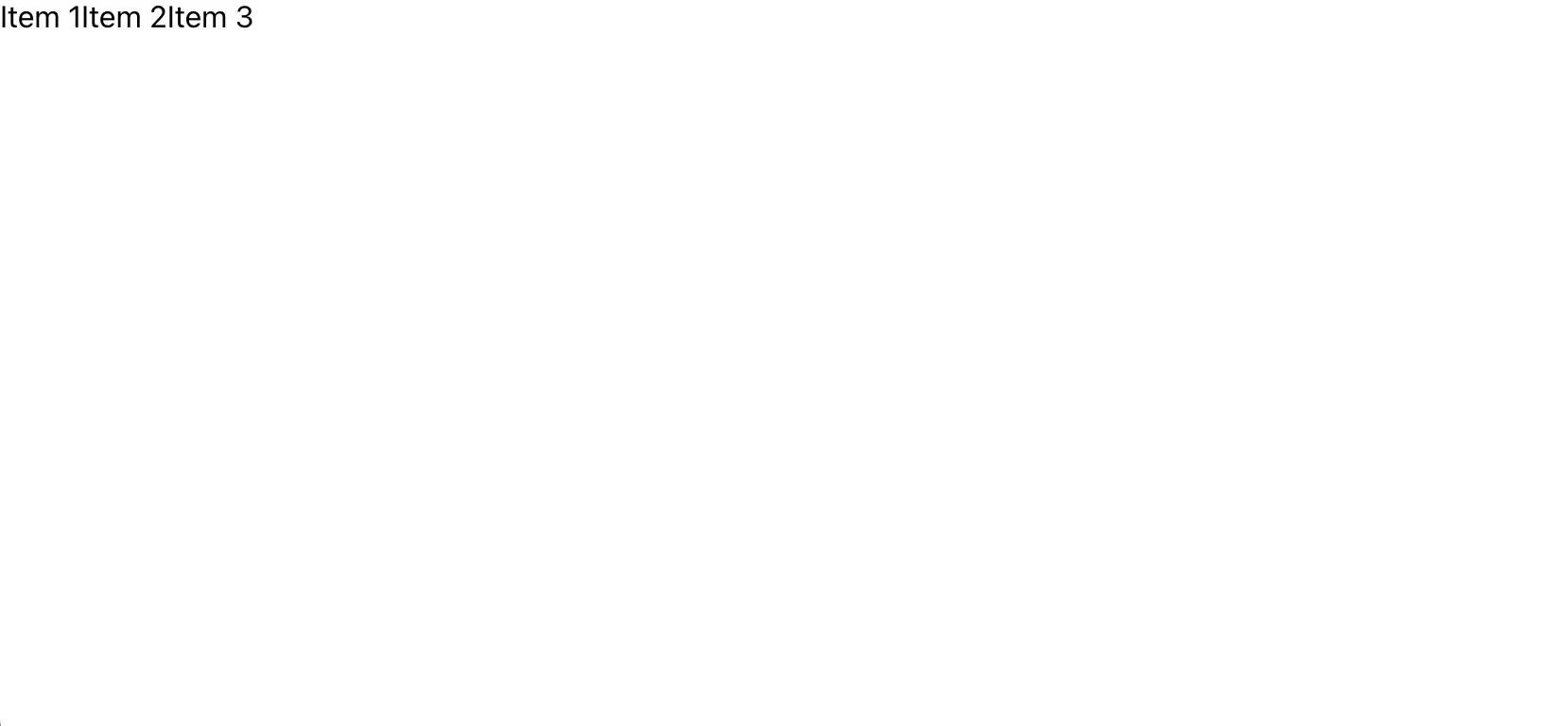

In the code snippet above, the <div> with display: 'flex' is your flex container. The items within it are laid out horizontally by default, because the default flex-direction value is row.

Flex Direction: The Foundation

The flex-direction property is crucial. It defines the direction flex items are laid out in the flex container. There are four possible values: row, row-reverse, column, and column-reverse. By default, the flex-direction is set to row, which means that flex items are laid out in a row, from left to right.

1const FlexDirectionExample = () => {
2  return (
3    <div style={{ display: 'flex', flexDirection: 'column' }}>
4      <div>Item 1</div>
5      <div>Item 2</div>
6      <div>Item 3</div>
7    </div>
8  );
9};

​

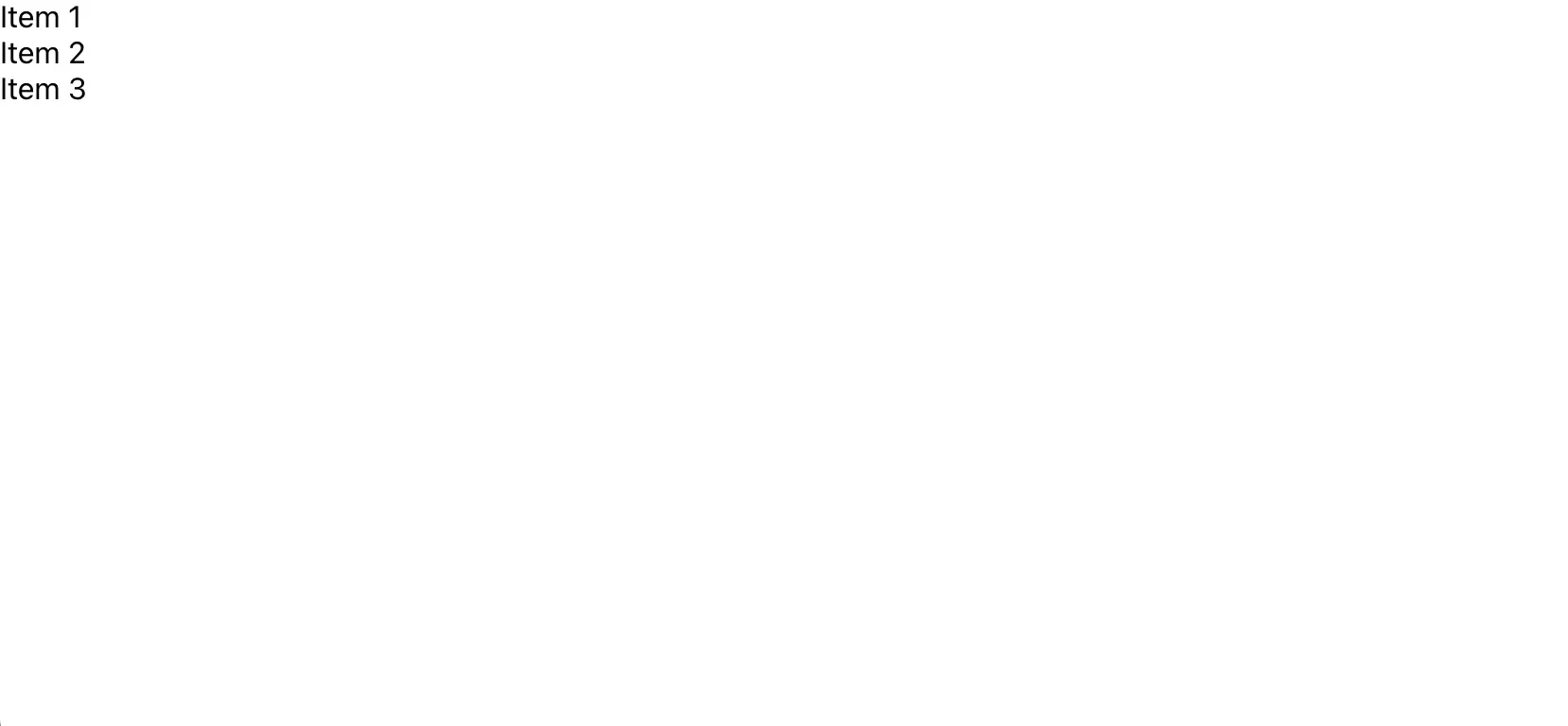

In this example, changing the flex-direction to column stacks the flex items vertically. This is just the beginning of how flex-direction can influence the layout of your content.

Flexbox also offers the justify-content and align-items properties to distribute space and align items along the main axis and cross axis, respectively. These properties work closely with flex-direction to arrange your flex items precisely.

For instance, justify-content can be set to values like flex-start, flex-end, center, space-between, space-around, or space-evenly to control the distribution of space along the main axis. Similarly, align-items uses values like flex-start, center, flex-end, stretch, and baseline to align items along the cross axis.

Troubleshooting Flex Direction Row Issues

Flexbox is designed to offer a more efficient way to lay out, align, and distribute space among items in a container, even when their size is unknown or dynamic. However, when flex items don’t align as expected in a flex-direction: row, it can be puzzling.

Common Pitfalls with Flex Direction Row

One of the main reasons why flex-direction: row might not work as expected is due to conflicts with other CSS properties or misunderstandings about how flexbox layout works. Here are some common issues:

• Overriding of Flex Properties: Sometimes, global styles or other CSS rules can override the flex container’s properties, including flex-direction. It’s essential to inspect the computed styles in your browser’s developer tools to verify that flex-direction: row is applied.
• Container Size Issues: If the flex container doesn’t have enough width, flex items might not align in a row as you'd expect. This can be especially true when flex-wrap is set to nowrap (the default value), which forces all items to stay in one line.
• Incorrect Use of align-items and justify-content: These properties control the alignment and spacing of flex items along the cross axis and main axis, respectively. Misusing them can lead to unexpected results. For instance, setting align-items: center when you meant to use justify-content: center for main axis alignment.

Inspecting the Flex Container Properties

To ensure that your flex container and items are behaving as expected, inspecting the properties applied to them is crucial. Here’s what to look out for:

• Verify Flex Direction: Use developer tools to confirm that flex-direction: row is indeed applied to your container. Look out for any styles that might be overriding this property.
• Check the Flex Container’s Width: Ensure the container has enough width to accommodate the flex items in a row. If the container’s width is too small, items may not align in a row as intended.
• Review Flex Wrap Property: The flex-wrap property determines whether flex items are forced onto one line or can wrap onto multiple lines. For a row layout, make sure it’s set appropriately based on your design needs.
• Examine align-items and justify-content Usage: These properties should be used thoughtfully to align and distribute your flex items. align-items aligns items on the cross axis, while justify-content adjusts the spacing on the main axis.

1const FlexContainerCheck = () => {
2  return (
3    <div style={{ display: 'flex', flexDirection: 'row', flexWrap: 'wrap', justifyContent: 'space-between', alignItems: 'center' }}>
4      <div>Item 1</div>
5      <div>Item 2</div>
6      <div>Item 3</div>
7    </div>
8  );
9};

​

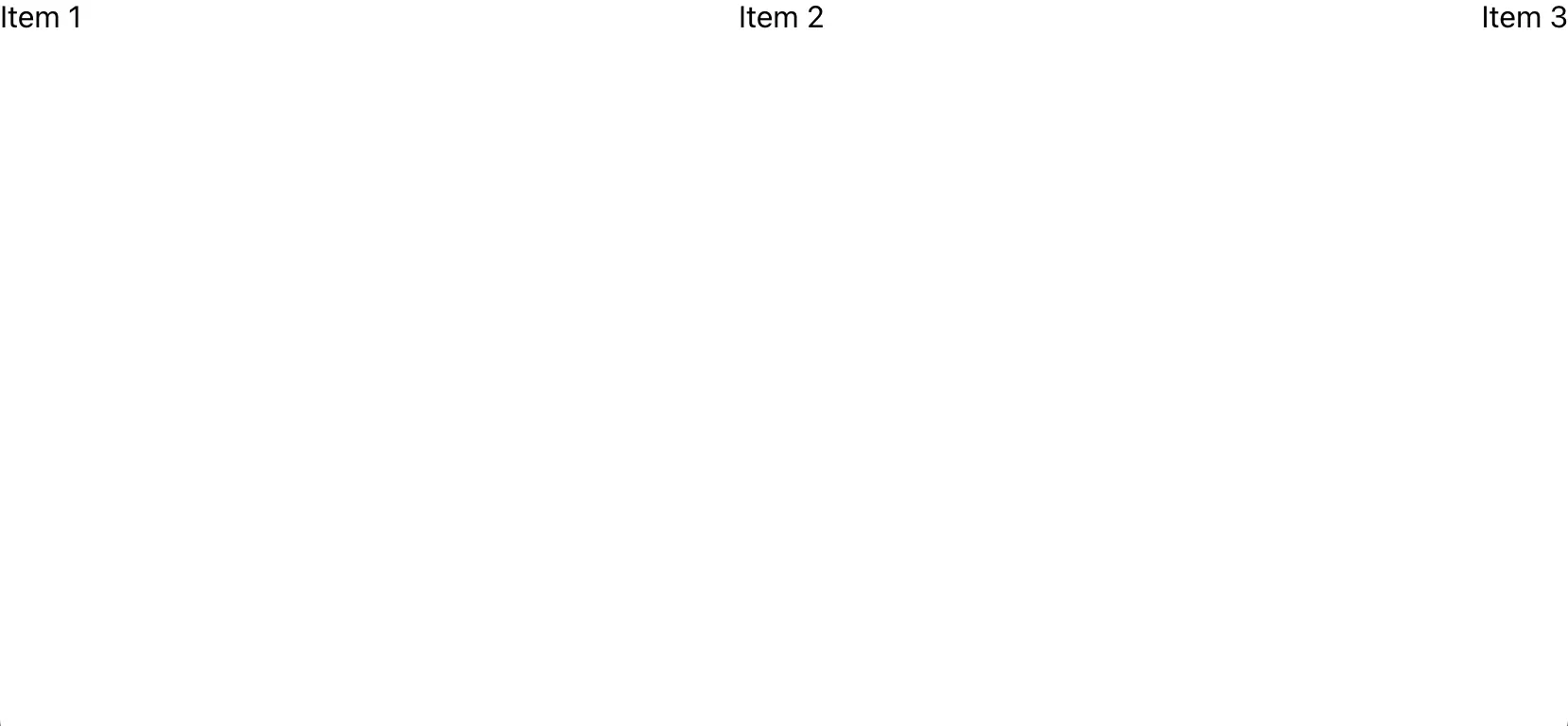

In this React function component example, flex-direction: row ensures items are laid out horizontally. flexWrap: 'wrap' allows items to wrap onto multiple lines if necessary, while justify-content: 'space-between' and align-items: 'center' distribute and align items effectively.

Aligning Items in a Flex Container

Flexbox provides a straightforward yet powerful set of properties to control the alignment, spacing, and order of elements within a container. One of the cornerstone properties for controlling vertical alignment is align-items. This property can dramatically affect the layout of your items within a flex container, especially when combined with different flex-direction settings.

Understanding Align Items

The align-items property sets the default alignment for all the flex items along the cross axis, which is perpendicular to the main axis defined by flex-direction. When your flex container is set to flex-direction: row, the cross axis runs vertically, and align-items controls how items are aligned vertically within the container.

1const AlignItemsExample = () => {
2  return (
3    <div style={{ display: 'flex', flexDirection: 'row', alignItems: 'center', height: '200px' }}>
4      <div style={{ background: 'lightblue', padding: '10px' }}>Item 1</div>
5      <div style={{ background: 'lightcoral', padding: '10px' }}>Item 2</div>
6      <div style={{ background: 'lightgreen', padding: '10px' }}>Item 3</div>
7    </div>
8  );
9};

​

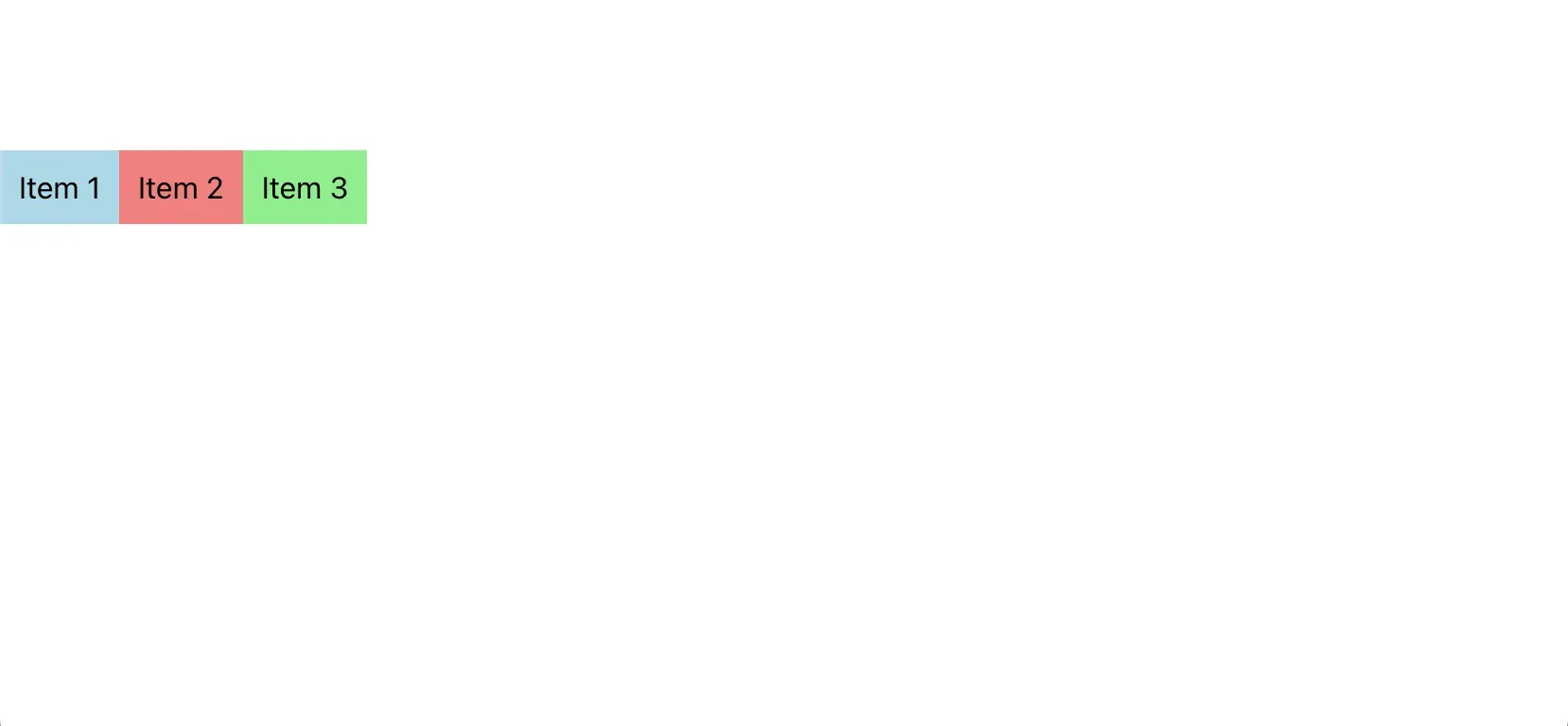

In this example, align-items: center vertically centers the flex items in the container, which has an explicitly set height. Other values for align-items include flex-start, flex-end, baseline, and stretch (the default value), each providing different alignment behaviors along the cross axis.

Common Misunderstandings with Align Items

Misunderstanding the Default Behavior: Many assume the default alignment is centered, but it's stretch, where flex items will stretch to fill the container's height unless otherwise specified.

Confusing Axis with flex-direction Changes: When changing flex-direction to column, the main axis and cross axis switch. This means align-items now controls horizontal alignment, not vertical, which can confuse those new to Flexbox.

Overlooking Container Height: Without a set height (or min-height) on the flex container, align-items has no effect when items are smaller than the container. This is a common oversight that leads to items not aligning as expected.

Ignoring Content Size and align-self: The size of flex items and the use of align-self (which allows individual items to override align-items) can affect alignment in ways that might seem unexpected at first glance.

Advanced Flexbox Layout Techniques

Flexbox offers a rich set of properties that, when combined, can solve complex layout challenges with clean and maintainable code. Understanding how to leverage these properties, especially flex-direction and align-items together, allows for creating flexible and responsive designs with minimal effort.

Leveraging Flex Direction and Align Items Together

Integrating flex-direction with align-items provides a powerful method to control both the orientation and alignment of flex items within a container. This combination is essential for creating complex layouts that adapt seamlessly to different screen sizes.

• Horizontal and Vertical Centering: By setting flex-direction to row and align-items to center, you can center items vertically within a container. This is particularly useful for aligning content within sections or cards in a UI.
• Column Layouts with Cross-Axis Alignment: Changing flex-direction to column switches the main axis, allowing align-items to control horizontal alignment. This is ideal for stacking items vertically and aligning them to one side or centering them horizontally.

1const FlexLayoutExample = () => {
2  return (
3    <div style={{ display: 'flex', flexDirection: 'column', alignItems: 'center', height: '300px' }}>
4      <div style={{ background: 'lightblue', padding: '10px', width: '50%' }}>Item 1</div>
5      <div style={{ background: 'lightcoral', padding: '10px', width: '75%' }}>Item 2</div>
6      <div style={{ background: 'lightgreen', padding: '10px', width: '50%' }}>Item 3</div>
7    </div>
8  );
9};

​

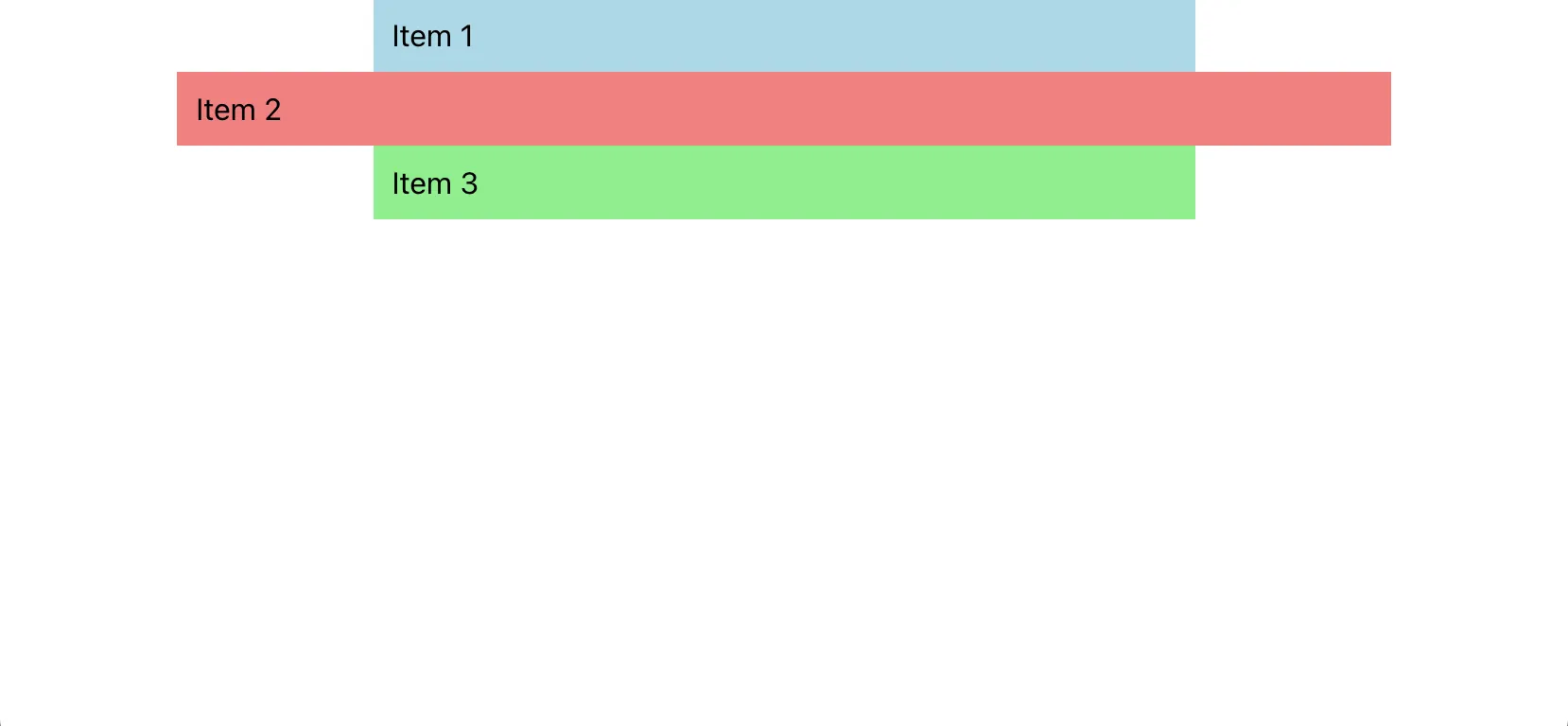

In this React component, flex items are vertically stacked and centered horizontally, demonstrating how flex-direction and align-items work together to achieve a clean, centered column layout.

Responsive Design with Flexbox

Flexbox shines in responsive design, offering a simple way to adjust layouts for different screen sizes without changing the semantic structure of the HTML. Here are key techniques for responsive design with Flexbox:

• Adjusting Flex Direction for Responsiveness: Use media queries to change the flex-direction on the fly. For instance, a row layout on wide screens can switch to column on smaller screens, stacking items vertically to better utilize limited space.
• Responsive Alignment and Spacing: Combine align-items with justify-content to control the alignment and distribution of space around flex items. This can be dynamically adjusted using media queries to ensure content remains accessible and visually appealing across devices.
• Using flex-wrap for Fluid Layouts: Set flex-wrap to wrap to allow items to wrap onto multiple lines as needed, creating fluid layouts that adapt to the width of the container and the screen.

Conclusion

In conclusion, mastering Flexbox allows web developers to create fluid, adaptable layouts that respond to the needs of modern web design with ease. By understanding the core concepts of flex-direction and align-items, and how to combine them effectively, you can tackle common layout challenges and implement responsive design principles effortlessly.

Through practical examples and troubleshooting tips, we’ve explored the power and flexibility of Flexbox, demonstrating its potential to streamline the creation of complex layouts.
