Adapting to Change: The Magic of Flutter Responsiveness

‍What is Flutter?

Google's Flutter is an open-source UI software development kit. It is used to create applications from a single codebase for Android, iOS, Linux, Mac, Windows, Google Fuchsia, and the web. Flutter apps are created in the Dart programming language and take advantage of many of the language's sophisticated features.

Importance of Flutter Responsiveness

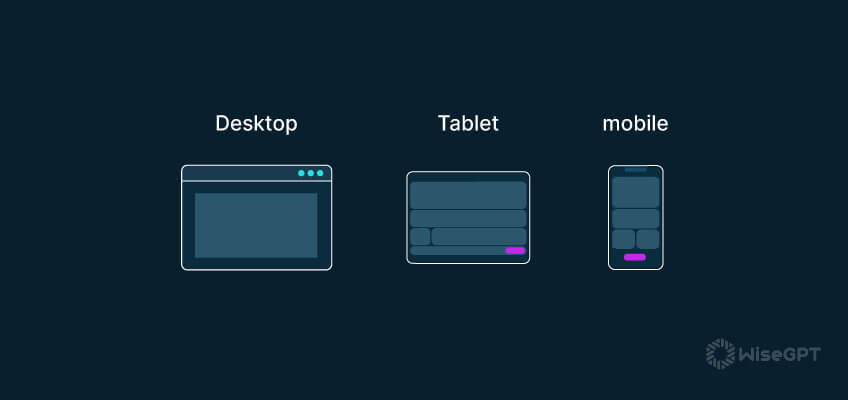

In the world of mobile app development, responsiveness is key. A responsive app is one that can adapt to a variety of screen sizes and device orientations, providing a seamless user experience regardless of the device being used. This is where Flutter shines. With Flutter, you can build responsive layouts that automatically adapt UI based on the available space, screen size, and device orientation.

Responsive design in Flutter is not just about making your app look good on different devices. It's about ensuring that your app provides a consistent and high-quality user experience across all devices. This is achieved by designing UI elements that can adapt to different screen sizes and aspect ratios, and by defining responsive layouts that can adjust to changes in the device's screen size and orientation.

Understanding Responsiveness

Definition of Responsiveness

In the context of app development, responsiveness refers to the ability of an app to automatically adapt its UI to different screen sizes, aspect ratios, and device orientations. This means that a responsive app will look and function optimally on a variety of devices, from small mobile devices to larger tablets and desktop screens.

Responsiveness in Flutter is achieved by using a combination of flexible and expanded widgets, aspect ratio considerations, and the ability to define responsive layouts that adapt to different screen sizes and orientations. This allows Flutter apps to provide a consistent and high-quality user experience across a wide range of devices.

Here's an example of how you can use the MediaQuery class in Flutter to get the device's screen size and use it to build responsive layouts:

1     class HomePage extends StatelessWidget {
2      @override
3      Widget build(BuildContext context) {
4        var screenSize = MediaQuery.of(context).size;
5        return Scaffold(
6          appBar: AppBar(
7            title: Text('Flutter Responsive Design'),
8          ),
9          body: Container(
10            width: screenSize.width / 2,
11            height: screenSize.height / 3,
12            color: Colors.red,
13          ),
14        );
15      }
16    }
17

In this code, we use MediaQuery to get the screen size and then use it to set the width and height of a container. This makes the container responsive, as its size will automatically adapt to different screen sizes.

Why Responsiveness is Crucial in App Development

Responsiveness is crucial in app development for several reasons. First and foremost, it ensures that your app provides a consistent and high-quality user experience across all devices. This is important because users expect apps to function optimally on their devices, regardless of their screen size or orientation.

Second, a responsive design can help improve your app's search engine optimization (SEO). Search engines like Google prioritize mobile-friendly websites and apps in their search results. Therefore, ensuring that your app is responsive can help it rank higher in search results, leading to more visibility and potentially more users.

Third, a responsive design can help improve your app's performance. By ensuring that your app's UI elements and layouts are optimized for different screen sizes and orientations, you can reduce unnecessary rendering and improve your app's load times.

Finally, a responsive design can make your app more accessible. By ensuring that your app's UI is easy to use and navigate on all devices, you can make your app more accessible to users with disabilities.

Flutter's Approach to Responsiveness

Flutter's Widget System

One of the key aspects of Flutter's approach to responsiveness is its widget system. In Flutter, everything is a widget. Widgets are the basic building blocks of a Flutter app's user interface. They describe what their view should look like given their current configuration and state.

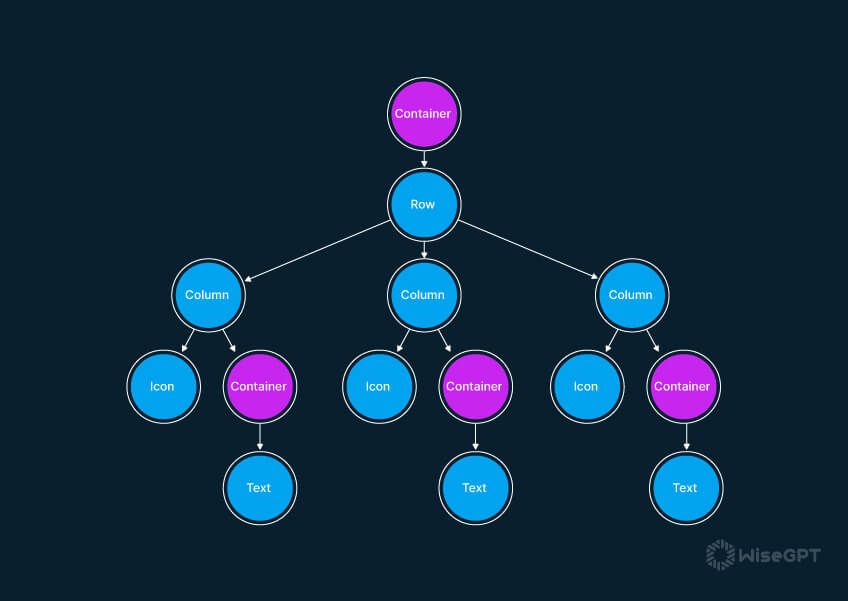

Widgets are organized into a tree of parent and child widgets. Each widget in the tree can be thought of as a part of the user interface, and the entire tree represents the complete user interface of the app.

How Flutter Handles Different Screen Sizes

Flutter's approach to handling different screen sizes is centered around the concept of layout constraints. Every widget in Flutter is passed a set of constraints by its parent widget. These constraints define the maximum and minimum width and height that the widget can have.

Widgets in Flutter decide their own size, but they are constrained by the parent widget. For example, if a parent widget passes a maximum width of 100 pixels to its child widget, the child widget can decide to be any width between 0 and 100 pixels.

This system of constraints allows Flutter to create flexible layouts that can adapt to different screen sizes. By using widgets that can adjust their size based on the available space and aspect ratio, Flutter can create layouts that look good on a variety of devices.

In addition to layout constraints, Flutter also provides the MediaQuery class, which can be used to get information about the device's screen size, orientation, and other user preferences. This information can be used to create layouts that adapt to the device's screen size and orientation.

Building Responsive Flutter Apps

Layout Builder‍

Understanding Layout Builder

The LayoutBuilder widget is a powerful tool in Flutter that can help us create responsive designs. It provides a builder property that passes the current BuildContext and BoxConstraints. The BoxConstraints object contains information about the constraints passed from the parent widget, such as the maximum and minimum width and height.

By using these constraints, we can make decisions about how to display our widgets based on the available space. This is particularly useful when we want to display different layouts based on the screen size.

‍

Implementing Layout Builder

Here's an example of how you can use the LayoutBuilder widget to create a responsive layout:

1     class HomePage extends StatelessWidget {
2      @override
3      Widget build(BuildContext context) {
4        return Scaffold(
5          appBar: AppBar(
6            title: Text('Flutter Responsive Layout'),
7          ),
8          body: LayoutBuilder(
9            builder: (BuildContext context, BoxConstraints constraints) {
10              if (constraints.maxWidth > 600) {
11                return _buildWideContainers();
12              } else {
13                return _buildNormalContainers();
14              }
15            },
16          ),
17        );
18      }
19
20      Widget _buildNormalContainers() {
21        return Column(
22          children: <Widget>[
23            Expanded(child: Container(color: Colors.red)),
24            Expanded(child: Container(color: Colors.blue)),
25          ],
26        );
27      }
28
29      Widget _buildWideContainers() {
30        return Row(
31          children: <Widget>[
32            Expanded(child: Container(color: Colors.red)),
33            Expanded(child: Container(color: Colors.blue)),
34          ],
35        );
36      }
37    }
38

In this code, we define a class HomePage that extends StatelessWidget. Inside the build function, we use a LayoutBuilder to get the complete context of the screen size. Depending on the screen's width, we either display two containers side by side (in landscape mode) or one on top of the other (in portrait mode). Each container takes up half of the available space, thanks to the Expanded widget.

Orientation Builder

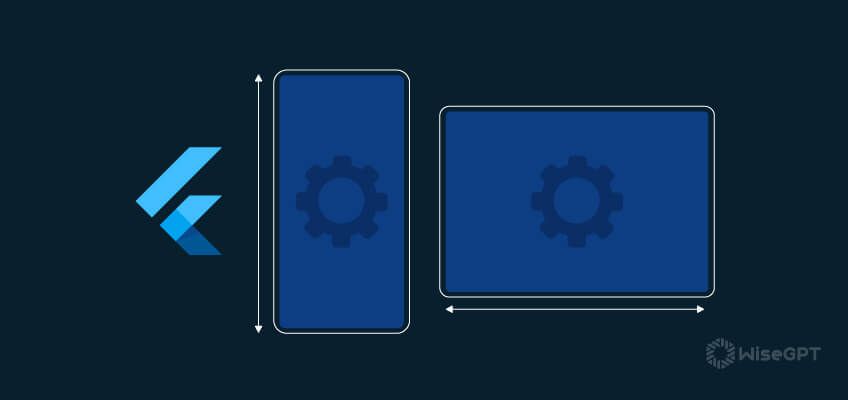

Understanding Orientation Builder

The OrientationBuilder widget is another useful tool for creating responsive layouts in Flutter. It provides a builder property that passes the current BuildContext and Orientation. The Orientation object tells us whether the current device orientation is portrait or landscape.

By using this information, we can make decisions about how to display our widgets based on the device's current orientation. This is particularly useful when we want to display different layouts based on whether the device is in portrait or landscape mode.

Implementing Orientation Builder

Here's an example of how you can use the OrientationBuilder widget to create a responsive layout:

1     class HomePage extends StatelessWidget {
2      @override
3      Widget build(BuildContext context) {
4        return Scaffold(
5          appBar: AppBar(
6            title: Text('Flutter Responsive Orientation'),
7          ),
8          body: OrientationBuilder(
9            builder: (BuildContext context, Orientation orientation) {
10              if (orientation == Orientation.landscape) {
11                return _buildWideContainers();
12              } else {
13                return _buildNormalContainers();
14              }
15            },
16          ),
17        );
18      }
19
20      Widget _buildNormalContainers() {
21        return Column(
22          children: <Widget>[
23            Expanded(child: Container(color: Colors.red)),
24            Expanded(child: Container(color: Colors.blue)),
25          ],
26        );
27      }
28
29      Widget _buildWideContainers() {
30        return Row(
31          children: <Widget>[
32            Expanded(child: Container(color: Colors.red)),
33            Expanded(child: Container(color: Colors.blue)),
34          ],
35        );
36      }
37    }
38

In this code, we define a class HomePage that extends StatelessWidget. Inside the build function, we use an OrientationBuilder to get the current device orientation. Depending on the orientation, we either display two containers side by side (in landscape mode) or one on top of the other (in portrait mode). Each container takes up half of the available space, thanks to the Expanded widget.

Aspect Ratio

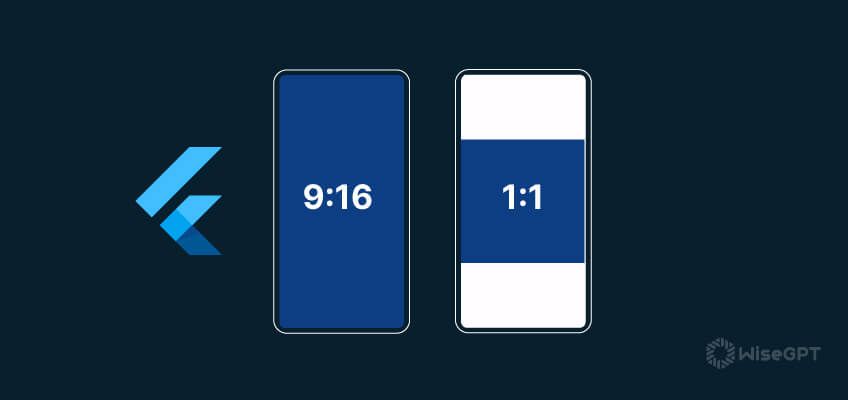

Understanding Aspect Ratio

The AspectRatio widget in Flutter is used to adjust the aspect ratio of a widget. The aspect ratio is defined as the ratio between the width and the height of a box. This can be particularly useful when you want a widget to have a specific aspect ratio, regardless of the screen size.

Implementing Aspect Ratio

Here's an example of how you can use the AspectRatio widget to create a responsive layout:

1     class HomePage extends StatelessWidget {
2      @override
3      Widget build(BuildContext context) {
4        return Scaffold(
5          appBar: AppBar(
6            title: Text('Flutter Aspect Ratio'),
7          ),
8          body: AspectRatio(
9            aspectRatio: 16 / 9,
10            child: Container(
11              color: Colors.red,
12            ),
13          ),
14        );
15      }
16    }
17

In this code, we define a class HomePage that extends StatelessWidget. Inside the build function, we use an AspectRatio widget to enforce a 16:9 aspect ratio on a container. This means that the width of the container will always be 16 units for every 9 units of height, regardless of the screen size.

Responsive Widgets in Flutter

Flexible

Understanding Flexible

The Flexible widget is a built-in widget in Flutter that controls how a child of a Row, Column, or Flex flexes. In other words, it controls how much space the child widget should occupy among its siblings. The Flexible widget has a property called flex, which is an integer that determines the flex factor for a widget. The space that remains after laying out all the non-flexible widgets is divided according to the flex factors.

Implementing Flexible

Here's an example of how you can use the Flexible widget to create a responsive layout:

1     class HomePage extends StatelessWidget {
2      @override
3      Widget build(BuildContext context) {
4        return Scaffold(
5          appBar: AppBar(
6            title: Text('Flutter Flexible Widget'),
7          ),
8          body: Row(
9            children: <Widget>[
10              Flexible(
11                flex: 2,
12                child: Container(color: Colors.red),
13              ),
14              Flexible(
15                flex: 3,
16                child: Container(color: Colors.blue),
17              ),
18            ],
19          ),
20        );
21      }
22    }
23

In this code, we define a class HomePage that extends StatelessWidget. Inside the build function, we use Flexible widgets to create a row of two containers. The red container takes up 2/5 of the row's width, and the blue container takes up 3/5 of the row's width, thanks to the flex property of the Flexible widget.

Expanded

Understanding Expanded

The Expanded widget is a shorthand for Flexible with a flex factor of 1 and the fit property set to FlexFit.tight. This means that the Expanded widget takes up all the remaining space along the main axis. If there are multiple Expanded widgets in a row or column, the available space is divided equally among them.

Implementing Expanded

Here's an example of how you can use the Expanded widget to create a responsive layout:

1     class HomePage extends StatelessWidget {
2      @override
3      Widget build(BuildContext context) {
4        return Scaffold(
5          appBar: AppBar(
6            title: Text('Flutter Expanded Widget'),
7          ),
8          body: Row(
9            children: <Widget>[
10              Expanded(
11                child: Container(color: Colors.red),
12              ),
13              Expanded(
14                child: Container(color: Colors.blue),
15              ),
16            ],
17          ),
18        );
19      }
20    }
21

In this code, we define a class HomePage that extends StatelessWidget. Inside the build function, we use Expanded widgets to create a row of two containers. Both containers take up an equal amount of the row's width, thanks to the Expanded widget.

‍

FittedBox

‍

Understanding FittedBox

The FittedBox widget in Flutter is used to control the size of its child widget. It forces its child widget to fit into the current available space. The FittedBox has a property called fit, which determines how the child should be fit into the box.

‍

Implementing FittedBox

Here's an example of how you can use the FittedBox widget to create a responsive layout:

1     class HomePage extends StatelessWidget {
2      @override
3      Widget build(BuildContext context) {
4        return Scaffold(
5          appBar: AppBar(
6            title: Text('Flutter FittedBox Widget'),
7          ),
8          body: FittedBox(
9            child: Image.network('https://flutter.dev/images/flutter-logo-sharing.png'),
10            fit: BoxFit.contain,
11          ),
12        );
13      }
14    }
15

In this code, we define a class HomePage that extends StatelessWidget. Inside the build function, we use a FittedBox widget to display an image. The image is scaled to fit within the box while maintaining its aspect ratio, thanks to the BoxFit.contain property of the FittedBox widget.

These are just a few examples of the many responsive widgets available in Flutter. By understanding and utilizing these widgets, you can create Flutter apps that are responsive and provide a consistent and high-quality user experience across a wide range of devices.

Advanced Responsiveness Techniques

MediaQuery

Understanding MediaQuery

MediaQuery is a widget provided by Flutter that can be used to discover the dimensions and device orientation of the screen. It's an inherited widget, which means that it shares its data with widgets that are below it in the widget tree. MediaQuery can be used to make decisions about padding, alignment, and positioning.

Implementing MediaQuery

Here's an example of how you can use MediaQuery to create a responsive layout:

1     class HomePage extends StatelessWidget {
2      @override
3      Widget build(BuildContext context) {
4        var screenSize = MediaQuery.of(context).size;
5        return Scaffold(
6          appBar: AppBar(
7            title: Text('Flutter MediaQuery'),
8          ),
9          body: Container(
10            width: screenSize.width / 2,
11            height: screenSize.height / 3,
12            color: Colors.red,
13          ),
14        );
15      }
16    }
17

In this code, we define a class HomePage that extends StatelessWidget. Inside the build function, we use MediaQuery to get the screen size and then use it to set the width and height of a container. This makes the container responsive, as its size will automatically adapt to different screen sizes.

Custom Responsive Widgets

Understanding Custom Responsive Widgets

In addition to the built-in responsive widgets provided by Flutter, you can also create your own custom responsive widgets. These can be tailored to your specific needs and can provide more flexibility and control over the responsiveness of your app.

Implementing Custom Responsive Widgets

Here's an example of how you can create a custom responsive widget in Flutter:

1     class ResponsiveWidget extends StatelessWidget {
2      final Widget largeScreen;
3      final Widget mediumScreen;
4      final Widget smallScreen;
5
6      const ResponsiveWidget({
7        Key key,
8        @required this.largeScreen,
9        this.mediumScreen,
10        this.smallScreen,
11      }) : super(key: key);
12
13      @override
14      Widget build(BuildContext context) {
15        var screenSize = MediaQuery.of(context).size;
16        if (screenSize.width > 800) {
17          return largeScreen;
18        } else if (screenSize.width > 600) {
19          return mediumScreen ?? largeScreen;
20        } else {
21          return smallScreen ?? largeScreen;
22        }
23      }
24    }
25

In this code, we define a class ResponsiveWidget that extends StatelessWidget. This widget takes three parameters: largeScreen, mediumScreen, and smallScreen. Depending on the screen size, it returns the appropriate widget. This allows us to define different layouts for different screen sizes, providing a more customized responsive design.

Best Practices for Building Responsive Flutter Apps

Designing for Different Screen Sizes

When designing your Flutter app, it's important to keep in mind that your app will be used on a variety of different devices, each with its own screen size and aspect ratio. To ensure that your app looks good on all devices, you should design your app to be flexible and adaptable.

One way to do this is by using Flutter's built-in widgets like LayoutBuilder, OrientationBuilder, and AspectRatio, which allow you to create layouts that adapt to different screen sizes and orientations. You can also use MediaQuery to get information about the device's screen size and use it to make decisions about padding, alignment, and positioning.

In addition to using these widgets, you should also consider the user's browsing experience when designing your app. For example, you might want to use larger buttons and text on smaller devices to make your app easier to use.

‍

Testing on Different Devices

Testing is a crucial part of the app development process. To ensure that your app is truly responsive, you should test it on a variety of different devices, including both small and large screen sizes and both portrait and landscape orientations.

You can use Flutter's device simulator to test your app on different screen sizes and orientations. You can also use physical devices for testing to get a better idea of how your app will look and feel on a real device.

Keeping Code Clean and Maintainable

As with any software development project, it's important to keep your code clean and maintainable. This is especially important when building responsive apps, as the code can quickly become complex and difficult to manage.

One way to keep your code clean is by using custom responsive widgets. These can be tailored to your specific needs and can provide more flexibility and control over the responsiveness of your app. They can also help to reduce code duplication and make your code easier to read and maintain.

Another way to keep your code clean is by using Flutter's built-in widgets and classes effectively. For example, you can use the LayoutBuilder and MediaQuery classes to get information about the screen size and use it to make decisions about how to display your widgets. This can help to reduce code duplication and make your code easier to read and maintain.

Common Issues and How to Avoid Them

Overuse of MediaQuery

While MediaQuery is useful for creating responsive layouts, overusing it can lead to complex and inefficient code. Use it judiciously, and consider other widgets like Flexible, Expanded, and AspectRatio for adjusting widget sizes.

Ignoring Device Orientation

Designing your app for a single orientation can lead to a poor user experience on devices used in a different orientation. Test your app in both portrait and landscape orientations and use the OrientationBuilder widget to adjust your layout accordingly.

Not Testing on Actual Devices

Testing on actual devices is crucial as Flutter's device simulator can't fully replicate the experience of using your app on a real device. Test your app on a variety of devices, including different screen sizes and both iOS and Android devices, to ensure a high-quality user experience.

Optimizing Flutter for Responsive Mobile Apps

Responsive design is essential for delivering a consistent user experience across devices, and Flutter offers powerful tools like MediaQuery, LayoutBuilder, and Flexible to help developers achieve this. Flutter's layout system allows for flexible adaptation to different screen sizes, but it's important to use these tools carefully to avoid overly complex code.

Testing across multiple devices and orientations is critical for ensuring app quality while maintaining clean, manageable code through custom responsive widgets and Flutter's built-in options ensure an efficient development process.

As we explore the realm of Flutter and its responsiveness, it’s important to mention that there are tools available that can further streamline your Flutter development process by writing responsive code for your app’s UI. One such tool is WiseGPT, a plugin developed by DhiWise. WiseGPT not only enables you to create responsive UIs for your Flutter apps but also offers a wide range of built-in templates and screens to create a responsive Flutter app.

Furthermore, WiseGPT mirrors your coding style and auto-generates models and functions, eliminating the need for manual API requests, response parsing, and error management strategies for complex API endpoints. This feature significantly simplifies the process of integrating APIs into your app, making WiseGPT a valuable tool in your Flutter development toolkit.

So, as you continue your journey in creating responsive Flutter apps, consider exploring tools like WiseGPT. It could be the additional support that enhances your Flutter development experience.

Short on time? Speed things up with DhiWise!

Tired of manually designing screens, coding on weekends, and technical debt? Let DhiWise handle it for you!

You can build an e-commerce store, healthcare app, portfolio, blogging website, social media or admin panel right away. Use our library of 40+ pre-built free templates to create your first application using DhiWise.
