Creating a database architecture diagram can be daunting, especially when faced with complex systems and diverse requirements. Miscommunication, inefficient design, and scalability issues are common pain points that arise when these diagrams are not properly planned or implemented.
Whether you are a developer, database administrator, or project manager, having a clear visual representation of your database structure is crucial for overcoming these challenges and ensuring efficient and scalable systems.
This guide will walk you through the process of creating a comprehensive database architecture diagram, explore different types of database architectures, data modelling vs database architecture and highlight how tools like DhiWise can streamline database documentation.
What Is a Database Architecture Diagram?
A database architecture diagram is a visual representation of a database's structure, including tables, relationships, constraints, and data flow. These diagrams help:
- Clarify system requirements.
- Align teams on database design.
- Simplify debugging and optimization.
- Serve as documentation for future development.
Why Are Database Architecture Diagrams Important?
Database architecture diagrams are visual representations of how data is structured, stored, and connected within a system. They are crucial for several reasons, as outlined below:
1. Improved Communication
- Common Language: These diagrams bridge the gap between technical and non-technical stakeholders. Developers, database administrators (DBAs), and business stakeholders can all use the diagram as a shared reference point to ensure everyone understands the database structure and its purpose.
- Alignment Across Teams: By visualizing the database architecture, teams can discuss, propose changes, and agree on the structure more effectively than through text-heavy documentation.
- Simplified Collaboration: Visual aids make complex systems easier to grasp, reducing misunderstandings and improving decision-making during development and maintenance.
2. Efficient Design
- Early Detection of Issues: By mapping out relationships, dependencies, and constraints, database architecture diagrams help identify potential inefficiencies or bottlenecks in schema design, such as redundant data, missing keys, or poorly designed relationships.
- Streamlined Development: Clear visuals ensure that developers can implement the schema consistently, reducing errors and saving time during coding.
- Optimization Opportunities: They help pinpoint areas where query performance, indexing, or storage management can be optimized.
3. Scalability
- Planning for Growth: A well-constructed diagram illustrates how the database will handle increased data volumes, users, or transaction loads, ensuring the system is robust enough for future demands.
- Flexibility for Change: Understanding the current database architecture makes it easier to modify and expand the schema to incorporate new features or adapt to evolving business requirements.
- Minimized Downtime: Scalable database designs, planned with the help of architecture diagrams, reduce the risks and costs associated with scaling operations or migrating to new systems.
Overall, database architecture diagrams act as a blueprint for building, understanding, and evolving a database system. They not only enhance communication among stakeholders but also ensure efficient design and scalability, leading to a more robust and future-proof database solution.
Types of Database Architecture
Understanding the different types of database architecture is vital when creating diagrams. Some common architectures include:
1. Single-Tier Architecture
- The simplest form where the database and application reside on the same machine.
- Suitable for small-scale applications.
2. Two-Tier Architecture
- Separates the database server and client application.
- Often used in client-server applications.
3. Three-Tier Architecture
- Includes a middle layer (application server) between the database and client.
- Enhances scalability, security, and performance.
4. Distributed Architecture
- Data is distributed across multiple servers or locations.
- Useful for large-scale systems with high availability requirements.
Step-by-Step Guide: How to Create a Database Architecture Diagram
Creating a robust database architecture diagram involves several steps to ensure it accurately reflects the system's requirements, relationships, and constraints. Here's a detailed breakdown:
Step 1: Define the Scope
- Purpose: Clearly articulate the database’s purpose. For example, is it for an e-commerce platform, a healthcare system, or a financial application?
- Users: Identify who will interact with the database (e.g., administrators, application users, external APIs) and their specific needs.
- Functionalities: List key functionalities the database must support, such as user management, transaction tracking, or reporting.
- Boundaries: Determine what the diagram will and won’t cover (e.g., focus on data storage, exclude low-level implementation details).
Step 2: Gather Requirements
- Stakeholder Collaboration: Meet with developers, business analysts, and end-users to gather detailed requirements for the database.
- Entity Identification: Identify the primary entities (e.g., customers, orders, products) that will be represented in the database.
- Attributes and Relationships: Document each entity’s attributes (e.g., name, age, price) and define relationships between entities (e.g., customers place orders).
- Business Rules: Capture any specific rules that need to be enforced (e.g., a customer must have at least one active order).
Step 3: Choose a Notation
Standardized Notations:
- Crow's Foot: Popular for its clarity in representing relationships and cardinality.
- Chen's: Focuses on attributes and relationships in a more detailed format.
UML (Unified Modeling Language):
Suitable for integration with broader system architecture diagrams.
Tools for Diagramming:
- Lucidchart, Draw.io, DhiWise: Intuitive platforms for creating database diagrams with pre-built templates and shapes.
- ERD-Specific Tools: Tools like dbdiagram.io or MySQL Workbench offer database-specific features.
Step 4: Start with Key Entities
- Main Tables or Entities: Begin by sketching out the core entities of the system.
- Attributes: List the essential attributes for each entity and include data types where necessary (e.g., CustomerID - integer, Name - string).
- Primary Keys: Identify unique identifiers for each entity, such as OrderID or ProductID.
- Foreign Keys: Note attributes that link entities, like CustomerID in the Orders table.
Step 5: Map Relationships
Types of Relationships: Clearly define relationships:
- One-to-One (1:1): E.g., each user has one profile.
- One-to-Many (1:N): E.g., a customer can place multiple orders.
- Many-to-Many (M:N): E.g., products can belong to multiple categories.
Use Connectors:
Draw lines to represent relationships and annotate them with cardinality (e.g., 1:N or N:M).
Intersection Tables:
For many-to-many relationships, add junction tables with foreign keys from both entities.
Step 6: Add Constraints and Indexes
Constraints:
- Unique: Ensures no duplicate values in a column.
- Not Null: Prevents null values in critical fields.
- Check: Enforces specific conditions for column values.
**Indexes: **
Specify indexes on frequently queried fields to enhance performance.
Default Values: Define default values for attributes where applicable (e.g., status defaults to "active").
Step 7: Validate the Diagram
- Team Review: Share the diagram with stakeholders (e.g., developers, DBAs) for feedback.
- Accuracy Check: Confirm that all entities, relationships, constraints, and rules are accurately represented.
- Iterate: Update the diagram based on feedback to refine the design.
By following these steps, you can create a clear, well-organized database architecture diagram that aligns with the system’s needs, enhances collaboration, and sets a strong foundation for implementation.
Data Modeling vs. Data Architecture: A Detailed Explanation
What is Data Modeling?
Data modeling is the process of creating a visual representation of data and its relationships within a system. It acts as a blueprint for how data is organized, stored, and retrieved.
Levels of Data Modeling:
Conceptual Data Model:
- High-level abstraction of data.
- Focuses on business requirements, entities, and their relationships.
- Used to communicate with stakeholders to align on data needs.
- Example: "Customer places Orders."
Logical Data Model:
- Adds more detail to the conceptual model.
- Specifies attributes, data types, and relationships without worrying about physical implementation.
- Example: "CustomerID (Integer), Name (String)" in the Customer entity.
Physical Data Model:
- Translates the logical model into database-specific structures.
- Includes tables, columns, indexes, constraints, and data types based on a specific database (e.g., MySQL, PostgreSQL).
- Example: "Table: Customer, Column: CustomerID (Primary Key, Integer)."
Purpose of Data Modeling:
- Clarity: Helps teams understand data requirements.
- Efficiency: Ensures optimal database design by identifying redundancies or inconsistencies early.
- Alignment: Aligns business goals with technical implementation.
What is Data Architecture?
Data architecture is the overarching framework that defines how data is collected, stored, managed, integrated, and utilized across an organization. It encompasses the systems, processes, and standards for managing data at an enterprise level.
Key Components of Data Architecture:
- Data Sources: Defines where data originates (e.g., databases, APIs, IoT devices).
- Data Storage: Specifies how and where data is stored (e.g., relational databases, NoSQL, data lakes).
- Data Integration: Describes processes for combining data from multiple sources (e.g., ETL pipelines, APIs).
- Data Governance: Includes rules, policies, and standards for data quality, security, and compliance.
- Data Consumption: Focuses on how data is used (e.g., reporting, analytics, AI/ML applications).
Purpose of Data Architecture:
- Scalability: Ensures the system can handle growing data volumes and complexity.
- Security and Compliance: Addresses privacy, security, and regulatory requirements.
- Integration: Provides a unified view of data from multiple sources.
How Data Modeling Impacts Data Architecture
Data modeling is a foundational step that directly influences data architecture. Here's how:
1. Laying the Foundation for Design
- Impact: Data modeling provides the detailed blueprint needed for data architecture. Without accurate models, the architecture may lack coherence or fail to meet business needs.
- Example: A poorly designed conceptual model might overlook critical relationships, leading to incomplete integration at the architectural level.
2. Improving Data Quality and Consistency
- Impact: Logical data models ensure consistency in data definitions across the organization. This reduces ambiguity and prevents data silos in the architecture.
- Example: A clear definition of CustomerID ensures all systems use a consistent identifier, reducing mismatches.
- Impact: Physical data models guide decisions about data storage structures, indexing strategies, and partitioning, directly affecting the architecture’s performance.
- Example: If the model includes indexing for frequently queried fields, the architecture can support faster query execution.
4. Enabling Scalability
- Impact: A well-constructed data model anticipates future data growth, making it easier to design scalable architectures.
- Example: Identifying many-to-many relationships early allows the architecture to include appropriate junction tables for scalability.
5. Supporting Integration
- Impact: Data models define relationships and dependencies, enabling smoother data integration within the architecture.
- Example: If a logical model includes a mapping between Orders and Shipping, the architecture can support seamless ETL processes for reporting.
6. Facilitating Data Governance
- Impact: Logical and physical models document data lineage, ownership, and constraints, aiding governance at the architectural level.
- Example: A physical model highlighting sensitive fields (e.g., SSN) ensures the architecture includes encryption and access control.
How DhiWise Enhances Data Modeling and Database Documentation
Streamlining Database Documentation
DhiWise is a development platform that helps generate detailed database documentation. It offers:
- Comprehensive schemas and relationships.
- Optimized query plans.
- Clear, implementation-ready definitions.

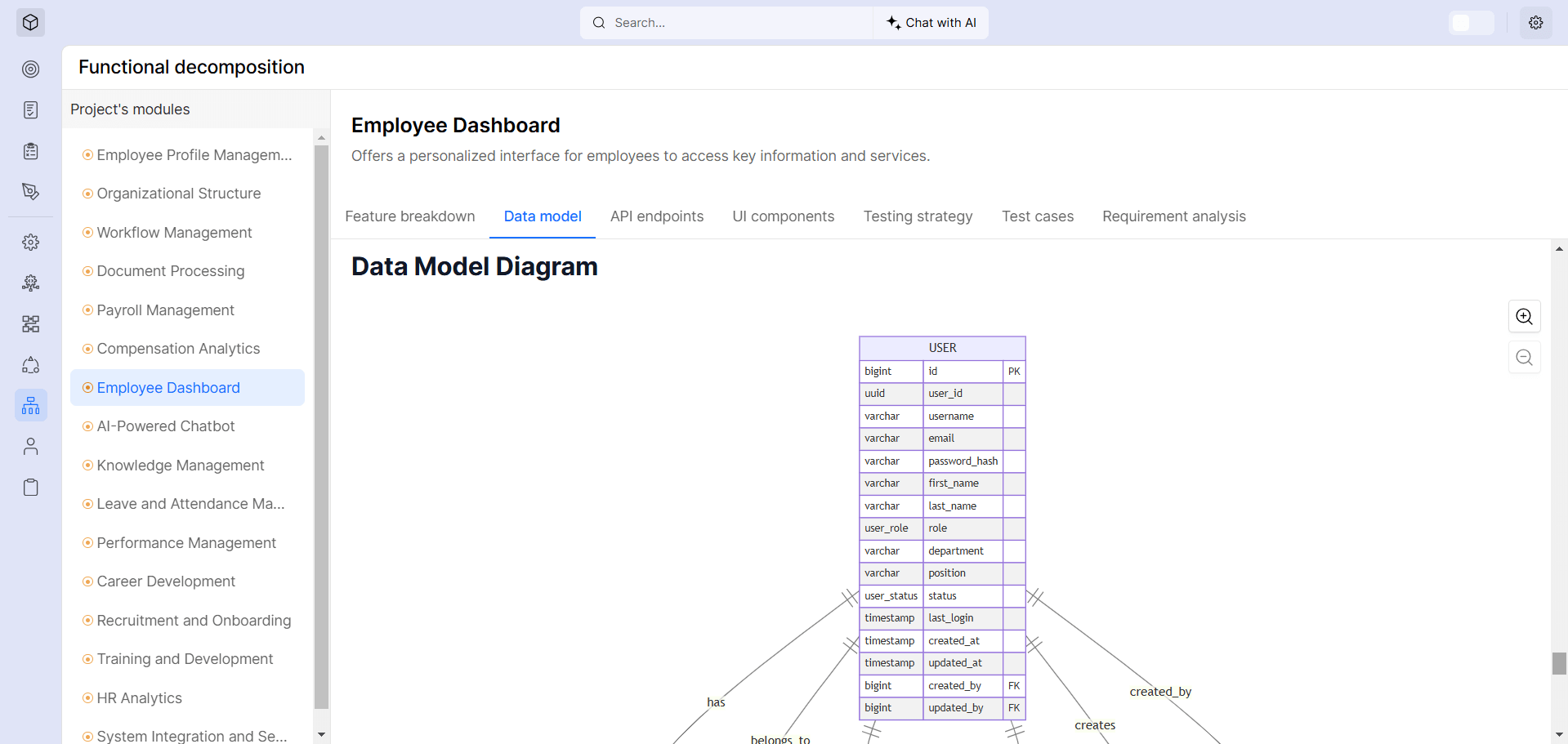

Data Model Diagram: Employee Dashboard
Example: AI-Powered HRMS System
Below is an example of database documentation generated by DhiWise for an Employee Dashboard in a PostgreSQL-based HRMS system:
Key Features of the Documentation:
Table Definitions
1CREATE TABLE "user" (
2 id BIGSERIAL PRIMARY KEY,
3 user_id UUID UNIQUE NOT NULL DEFAULT gen_random_uuid(),
4 username VARCHAR(50) UNIQUE NOT NULL,
5 email VARCHAR(255) UNIQUE NOT NULL,
6 password_hash VARCHAR(255) NOT NULL,
7 first_name VARCHAR(50) NOT NULL,
8 last_name VARCHAR(50) NOT NULL,
9 role user_role NOT NULL,
10 department VARCHAR(100),
11 position VARCHAR(100),
12 status user_status DEFAULT 'Active',
13 created_at TIMESTAMP WITH TIME ZONE DEFAULT CURRENT_TIMESTAMP,
14 updated_at TIMESTAMP WITH TIME ZONE DEFAULT CURRENT_TIMESTAMP
15);
Relationships
- Users linked to their created and updated records.
- Foreign key relationships ensure referential integrity.
Indexes
- Improve query performance with indexes like idx_user_email and idx_user_department.
Additional Tools:
- Triggers and Functions: Automatically update timestamps.
- Enum Types: Enforce data consistency.
Best Practices for Database Architecture Diagrams
- Keep It Simple: Avoid overloading diagrams with unnecessary details.
- Use Consistent Naming: Standardize table and column names.
- Optimize for Readability: Use colors, labels, and groupings to make diagrams easy to understand.
- Update Regularly: Reflect database changes in the diagram to maintain accuracy.
Blueprint for Success: Streamline Your Database Documentation and Modeling
A well-designed database architecture diagram is more than just a visual aid—it's a strategic tool for effective collaboration, efficient design, and scalable growth. From choosing the right architecture type to leveraging modern tools like DhiWise, this guide equips you with the knowledge to streamline database documentation and development. Start building your system’s blueprint today!
