Reactstrap Popover: Simple Steps to Improve UI Design

Looking for a way to display extra details without crowding the screen?

The Reactstrap Popover makes it easy! It adds small info boxes that show up when users hover or click on an element. This keeps the interface clean while providing helpful details.

This blog walks through its setup, customization, and best practices. With a few tweaks, it can make any React app more user-friendly.

Let’s break it down!

What is the Reactstrap Popover?

The Reactstrap Popover is a component built using Bootstrap and React, allowing developers to create popovers with minimal effort. It offers flexible popover placement, customizable styling, and event-driven behavior. Reactstrap leverages the Bootstrap CSS library to ensure consistency across different UI elements.

By the end of this guide, you will understand how to:

• Install and configure the popover component.

• Adjust popover placement dynamically.

• Customize the popover title and content.

• Control visibility using the toggle function.

• Integrate Reactstrap with other components.

Setting Up Reactstrap in Your Project

To use Reactstrap Popover, install the necessary packages in your React app. The Reactstrap package requires both Bootstrap CSS and the reactstrap library.

1. Install Dependencies

Use the following command to install Reactstrap and Bootstrap:

1npm install reactstrap bootstrap

​

After installation, import Bootstrap in your index.js or App.js file:

1import 'bootstrap/dist/css/bootstrap.min.css';

​

Now the Bootstrap CSS styles are available globally in your React app.

Creating a Basic Reactstrap Popover

The popover component requires three key elements:

1. A trigger element (such as a button or icon).

2. A popover container to hold the content.

3. A state variable to toggle visibility.

Example: Simple Popover

1import React, { useState } from 'react';
2import { Button, Popover, PopoverHeader, PopoverBody } from 'reactstrap';
3
4const ExamplePopover = () => {
5  const [popoverOpen, setPopoverOpen] = useState(false);
6
7  const togglePopover = () => {
8    setPopoverOpen(!popoverOpen);
9  };
10
11  return (
12    <div className="d-flex justify-content-center mt-5">
13      <Button id="Popover1" type="button" color="primary">
14        Click Me
15      </Button>
16      <Popover
17        placement="bottom"
18        isOpen={popoverOpen}
19        target="Popover1"
20        toggle={togglePopover}
21      >
22        <PopoverHeader>Popover Title</PopoverHeader>
23        <PopoverBody>Here is some popover content.</PopoverBody>
24      </Popover>
25    </div>
26  );
27};
28
29export default ExamplePopover;

​

Explanation:

• The Button component acts as the trigger element.

• The Popover component contains a popover title (PopoverHeader) and body (PopoverBody).

• The toggle function controls the visibility of the popover.

Controlling Popover Placement

The popover placement determines where the popover appears relative to the target element. Reactstrap supports various placement options such as top, bottom, left, and right.

Example: Changing Popover Placement

1<Popover placement="left" isOpen={popoverOpen} target="Popover1" toggle={togglePopover}>

​

Supported values for placement:

• top

• bottom

• left

• right

• auto (determines the best position dynamically)

Using auto ensures the popover does not overflow the viewport.

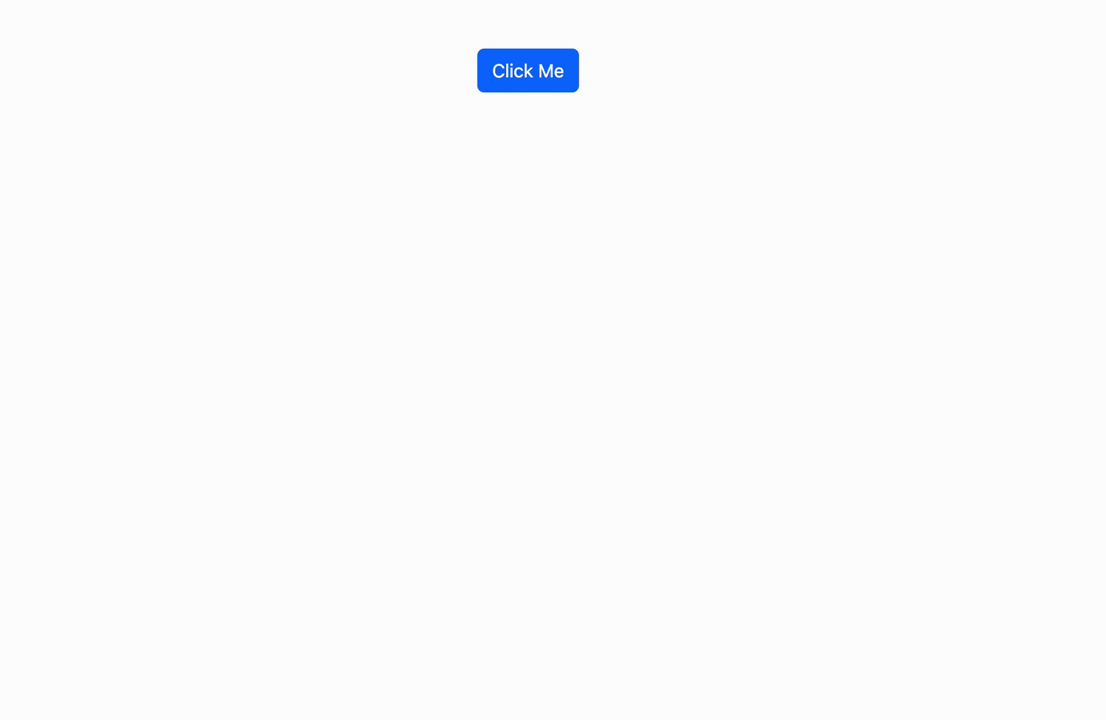

Customizing Popover Styles

While Reactstrap inherits styles from Bootstrap, you can apply custom CSS classes for styling.

Example: Custom Popover Styles

1.custom-popover {
2  width: 300px;
3  background-color: #f8f9fa;
4  border-radius: 8px;
5}
6
7.custom-popover .popover-header {
8  font-weight: bold;
9  color: #007bff;
10}

​

1<Popover className="custom-popover" placement="top" isOpen={popoverOpen} target="Popover1" toggle={togglePopover}>

​

This approach allows for complete customization of the popover component.

Advanced Popover Behavior

1. Dismissing Popovers on Outside Click

By default, the popover remains visible until the toggle function is called. To dismiss it when clicking outside, handle the event manually.

1const handleOutsideClick = (event) => {
2  if (popoverOpen && !document.getElementById('Popover1').contains(event.target)) {
3    setPopoverOpen(false);
4  }
5};
6
7useEffect(() => {
8  document.addEventListener("mousedown", handleOutsideClick);
9  return () => document.removeEventListener("mousedown", handleOutsideClick);
10}, [popoverOpen]);

​

2. Preventing Auto-Hide on Click Inside

If the popover contains interactive elements, auto-dismiss behavior might interfere with user actions. To prevent this, override the event handling.

1<PopoverBody onClick={(e) => e.stopPropagation()}>
2  <Button>Click Inside</Button>
3</PopoverBody>

​

Using Popovers in a Dynamic Application

The popover component can be used in various UI scenarios, such as tooltips, form validations, and notifications.

Example: Popover in a Form Validation

1const [error, setError] = useState(false);
2
3const handleSubmit = () => {
4  if (!inputValue) {
5    setError(true);
6  }
7};
8
9<Popover isOpen={error} target="inputField" toggle={() => setError(false)}>
10  <PopoverBody>Please fill out this field.</PopoverBody>
11</Popover>

​

This implementation ensures a user-friendly error message when the input field is empty.

Popover Workflow

This diagram illustrates how the toggle function controls the visibility of the popover based on user interaction.

Common Issues and Fixes

1. Popover Not Appearing

Fix: Ensure the target element exists and has a unique ID.

2. Popover Overlapping Content

Fix: Use container="body" to keep the popover inside a defined boundary.

1<Popover container="body" />

​

3. Popover Not Closing on Click

Fix: Implement event listeners to manage the toggle state.

Wrapping Up: Making the Most of Reactstrap Popover

The Reactstrap popover is a handy tool for adding extra details without cluttering the interface. It works well for tooltips, form hints, and notifications, making apps more interactive.

With different placement options, custom styles, and event-handling features, it adapts to various design needs. Tweaking these settings can help create a smooth and user-friendly experience. Experiment with different setups to see what works best for your project!
