Colspan in HTML: Simplify Your Table Layouts

When designing an HTML table, structuring columns and cells efficiently is key to presenting data. The colspan attribute helps achieve this by extending a table cell across multiple columns. This reduces redundant cells and ensures a well-organized table layout.

This blog will explore the colspan attribute in depth, with practical examples, proper usage, and best practices. You can create complex tables that present information effectively by understanding how to control the number of columns a cell should span.

What is the Colspan Attribute in HTML?

The colspan attribute in HTML determines how many adjacent columns a single cell should cover. Instead of inserting multiple cells in the same row, you can use colspan to merge them into one. This simplifies table structures and enhances readability.

The syntax for using colspan in HTML is:

1<td colspan="value">Content</td>

​

• value: Defines how many columns the cell spans.

• The default value is 1, meaning the cell occupies only one column.

Basic Example of Colspan in an HTML Table

To understand how the colspan attribute works, consider this simple table:

1<table border="1">
2  <tr>
3    <th>Header 1</th>
4    <th>Header 2</th>
5    <th>Header 3</th>
6  </tr>
7  <tr>
8    <td colspan="2">Merged Cell</td>
9    <td>Regular Cell</td>
10  </tr>
11</table>

​

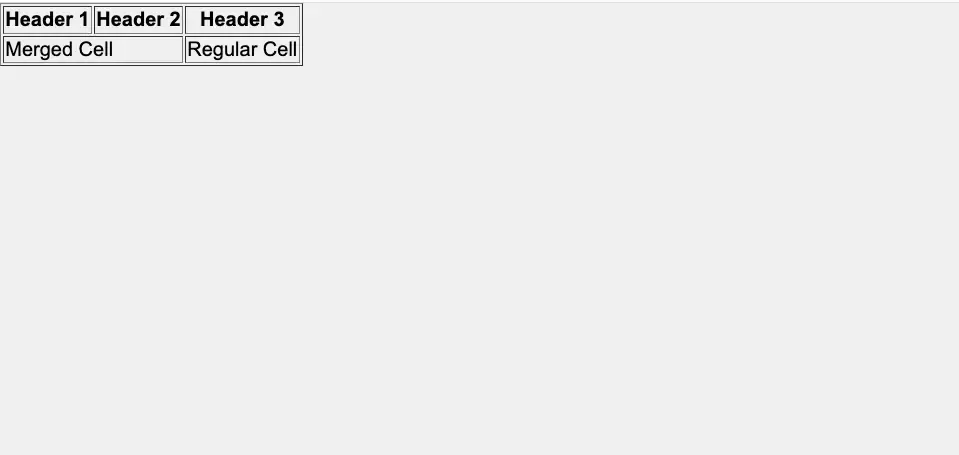

Output:

Here, the first table cell in the second table row spans across two columns, reducing the number of individual cells required.

Using the Colspan Attribute for Multiple Columns

If a cell should span across multiple columns, the colspan attribute must be adjusted accordingly. Let’s modify the HTML table to span multiple columns:

1<table border="1">
2  <tr>
3    <th>Column 1</th>
4    <th>Column 2</th>
5    <th>Column 3</th>
6    <th>Column 4</th>
7  </tr>
8  <tr>
9    <td colspan="3">Spanning Three Columns</td>
10    <td>Regular Cell</td>
11  </tr>
12</table>

​

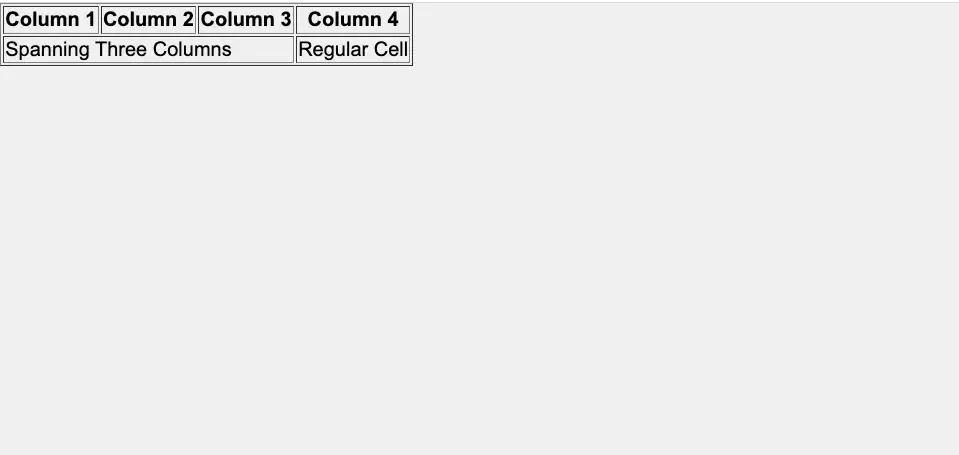

Output:

Here, the first cell in the second row spans three columns, demonstrating how the colspan attribute simplifies table layouts.

Combining Colspan and Rowspan Attributes

The rowspan attribute complements colspan by allowing a cell to extend across multiple rows. Using both attributes together creates complex tables that merge cells both horizontally and vertically.

Example of Using Both Colspan and Rowspan:

1<table border="1">
2  <tr>
3    <th>Category</th>
4    <th colspan="2">Details</th>
5  </tr>
6  <tr>
7    <td rowspan="2">Fruit</td>
8    <td>Apples</td>
9    <td>Oranges</td>
10  </tr>
11  <tr>
12    <td>Bananas</td>
13    <td>Grapes</td>
14  </tr>
15</table>

​

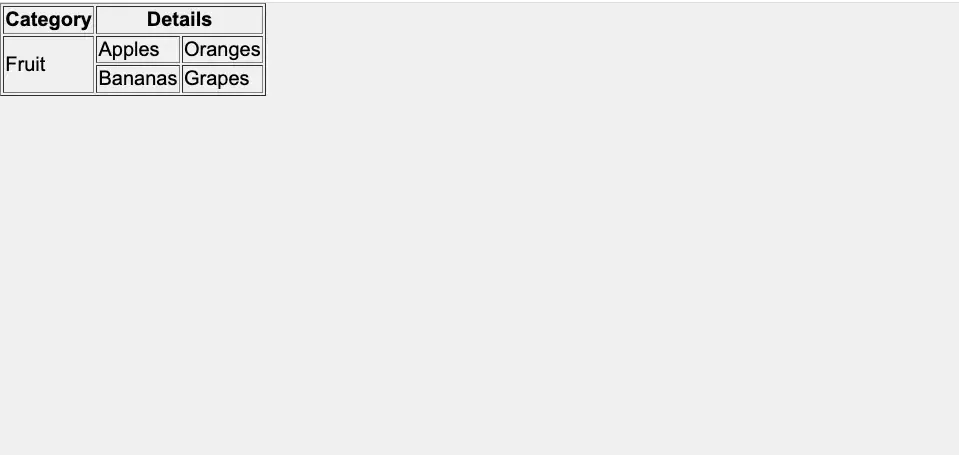

Output:

This example shows:

• The first table cell under "Category" spans multiple rows using rowspan="2".

• The second table cell under "Details" spans two columns using colspan="2".

Handling Table Layout and Text Align in Merged Cells

When using the colspan attribute, adjusting text-align properties improves readability. By default, text in a merged cell aligns to the left, but you can modify it using CSS.

Example of Text Alignment in a Colspan Cell:

1<style>
2  td {
3    text-align: center;
4  }
5</style>
6<table border="1">
7  <tr>
8    <td colspan="3">Centered Text in Spanning Cell</td>
9  </tr>
10</table>

​

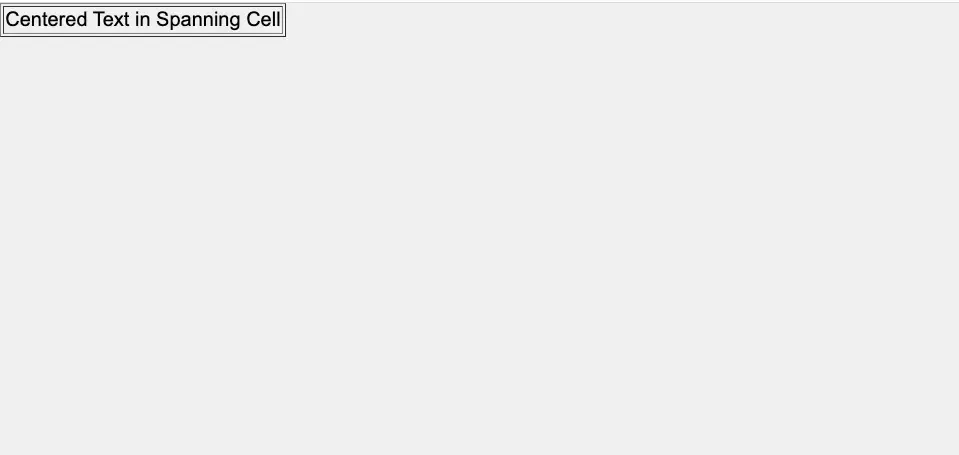

Output:

The text-align property ensures content is aligned properly within the merged cells.

Using Colspan for Responsive Table Design

In modern web design, tables must be responsive. Instead of inserting excessive columns, using the colspan attribute dynamically adjusts table width.

Example of Responsive Table with Colspan:

1<table border="1" style="width: 100%;">
2  <tr>
3    <td colspan="2">Full Width Cell</td>
4  </tr>
5  <tr>
6    <td>Left</td>
7    <td>Right</td>
8  </tr>
9</table>

​

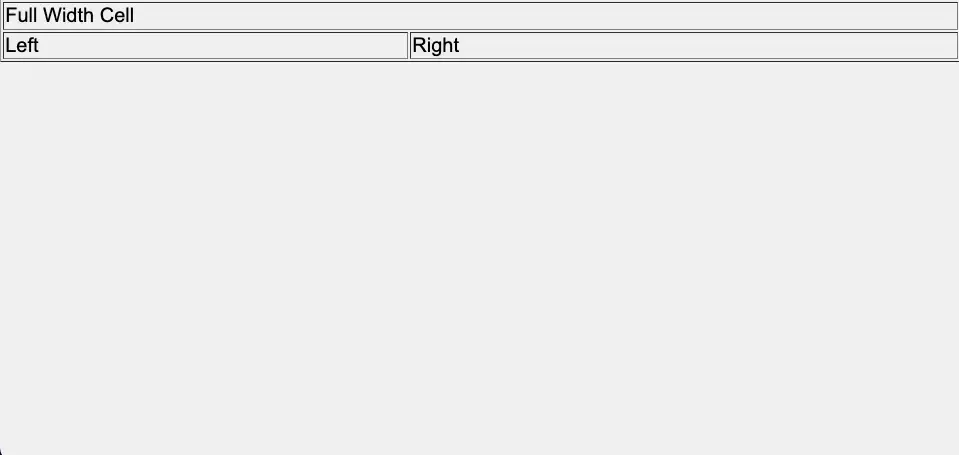

Output:

By setting colspan="2", the cell adapts across multiple columns, ensuring a flexible table layout.

Common Mistakes When Using the Colspan Attribute

1. Incorrect Colspan Values

Using a colspan attribute value greater than the total columns in a table disrupts alignment.

Incorrect Code:

1<table border="1">
2  <tr>
3    <td colspan="4">Too Many Columns</td>
4    <td>Extra Cell</td>
5  </tr>
6</table>

​

If the table only has 3 columns, setting colspan="4" will cause display issues.

2. Uneven Row Lengths

When using colspan, ensure all rows have a matching total number of columns.

Incorrect Code:

1<table border="1">
2  <tr>
3    <td>Item</td>
4    <td colspan="2">Price</td>
5  </tr>
6  <tr>
7    <td>Apples</td>
8    <td>$2</td>
9  </tr>
10</table>

​

The second row has fewer columns, causing a misalignment.

The Bottom Line!

Understanding colspan in HTML is key to creating well-structured tables. By using the colspan attribute, you can merge cells, simplify table layouts, and improve readability. To span multiple columns or structure complex tables, applying the right colspan attribute ensures an efficient display.

Experiment with different colspan values to see how they impact your HTML table structure. If your table cell needs to extend across multiple rows, combining colspan with the rowspan attribute further enhances flexibility. Keeping an eye on how many columns a cell should span ensures proper alignment and prevents display issues.

Mastering colspan in HTML allows for better table layouts, improved readability, and efficient use of cells across multiple columns. Applying the colspan attribute correctly ensures well-structured tables that adapt to different data presentation needs.
